- Managed, Rack-mountable, 24 x 1G ports, 4 x SFP/SFP+/SFP28/SFP56 uplinks (1/10/25/50G supported, No PoE (Data Only, Layer 3
[/shortdesc]
[properties]
| Properties |
HPE Aruba Networking CX 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A |
| Description |
The JL664A is a versatile switch featuring 24 Gigabit Ethernet ports and 4 SFP56 ports, providing high-speed connectivity options for various networking needs. |
| Product Family |
CX6300 Series |
| Product Type |
Ethernet Switch |
| Ports and Slots |
24x ports 10/100/1000BaseT ports
4x 1G/10G/25G/50G SFP/SFP+/SFP28/SFP56 transceiver slots
1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies |
2 field-replaceable, hotswappable power supply slots
1 minimum power supply required (ordered separately
Supports JL085A (250W AC, JL757A (250W DC – min 1, max 2, mix supported
|
| Frequency |
50/60 Hz |
| Voltage |
JL085A PSU: 100V-240V |
| Current |
JL085A PSU: 3A/1.2A |
| Power Consumption (230 VAC |
Idle: 49W
100% Traffic Rate: 64W |
| Fans |
2 replaceable and hotswappable |
| Dimensions |
1.73 x 17.4 x 15.2 in (4.4 x 44.2 x 38.5 cm |
| Weight |
4.81 kg (10.60 lbs |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
[/properties][specifications]
| Specifications |
HPE Aruba Networking CX 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A |
| CPU |
Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash |
8 GB DDR4 32 GB eMMC |
| Packet Buffer |
8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration |
| System Switching Capacity |
448 Gbps |
| System Throughput Capacity |
334 Gbps |
| Average Latency (LIFO-64-bytes packets |
1Gbps: 2.28μSec
10Gbps: 1.46μSec
25Gbps: 1.90μSec
50Gbps1: 3.49μSec |
| Switched Virtual Interfaces (dual stack |
1,024 |
| IPv4 Host Table (ARP |
49,152 |
| IPv6 Host Table (ND |
49,152 |
| IPv4 Unicast Routes |
61,000 |
| IPv6 Unicast Routes |
61,000 |
| IPv4 Multicast Routes |
8,192 |
| IPv6 Multicast Routes |
8,192 |
| MAC Table Capacity |
32,768 |
| IGMP Groups |
8,192 |
| MLD Groups |
8,192 |
| IPv4/IPv6/MAC ACL Entries (ingress |
20,480/5,120/20,480 |
| Stack Size |
10 members |
| Max. Stacking Distance |
Up to 10 kms with long range transceivers |
| Stacking Bandwidth |
200 Gbps |
| Operating Temperature |
32°F to 113°F (0°C to 45°C up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Primary Airflow |
Front and side to back |
| Safety |
US: UL 60950-1 2nd Ed. |
| Emissions |
US: FCC part 15, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only
|
| Immunity |
CISPR 24 / CISPR 35
EN 55024:2010 /
EN 55035:2017
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3 EN 61000-3-3 |
[/specifications][accesories]
| Accessories |
| JL669B |
• Aruba X751 Port to Power Fan Tray |
| JL761A |
Aruba 6300M Power-to-Port Fan Tray |
| J9583A |
• HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B |
• Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A |
• Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A |
• Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A |
• Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A |
• Aruba USB-C to USB-C PC-to-Switch Cable |
| S1H23A |
• HPE Aruba Networking CX Switch Bluetooth Adapter |
| JL487A |
Aruba 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable |
| JL488A |
Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
| JL489A |
Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
| R0M46A |
Aruba 50G SFP56 to SFP56 0.65m DAC Cable |
| R0M47A |
Aruba 50G SFP56 to SFP56 3m DAC Cable |
| Cables |
| J9281D |
• Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D |
• Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Power Supplies |
| JL085A |
• Aruba X371 12VDC 250W 100-240VAC Power Supply |
| JL086A |
• Aruba X372 54VDC 680W 100-240VAC Power Supply |
| JL087A |
• Aruba X372 54VDC 1050W 100-240VAC Power Supply |
| JL670A |
• Aruba X372 54VDC 1600W 100-240VAC Power Supply |
| JL760A |
• Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply |
| JL757A |
• Aruba 6300M 250W 36-72VDC PSU |
| JL758A |
• Aruba 6300M 1050W 36-72VDC |
| Transceivers |
| J9054D |
Aruba 100M SFP LC FX 2km MMF XCVR (J9054D |
| J4858D |
• Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D |
• Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D |
• Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D |
• Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| JL745A |
• Aruba 1G SFP LC SX 500m MMF TAA Transceiver |
| JL746A |
• Aruba 1G SFP LC SX 500m SMF TAA Transceiver |
| JL747A |
• Aruba 1G SFP LC SX 500m Cat5 TAA Transceiver |
| J9150D |
• Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E |
• Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D |
• Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B |
• Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D |
• Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| JL748A |
• Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver |
| JL749A |
• Aruba 10G SFP+ LC SR 10km SMF TAA Transceiver |
| JL484A |
Aruba 25G SFP28 LC SR 100m MMF Transceiver |
| JL485A |
Aruba 25G SFP28 LC SR 400m MMF Transceiver |
| JL486A |
Aruba 25G SFP28 LC SR 10km SMF Transceiver |
| R0M48A |
Aruba 50G SFP56 LC SR 100m MMF XCVR |
[/accesories]

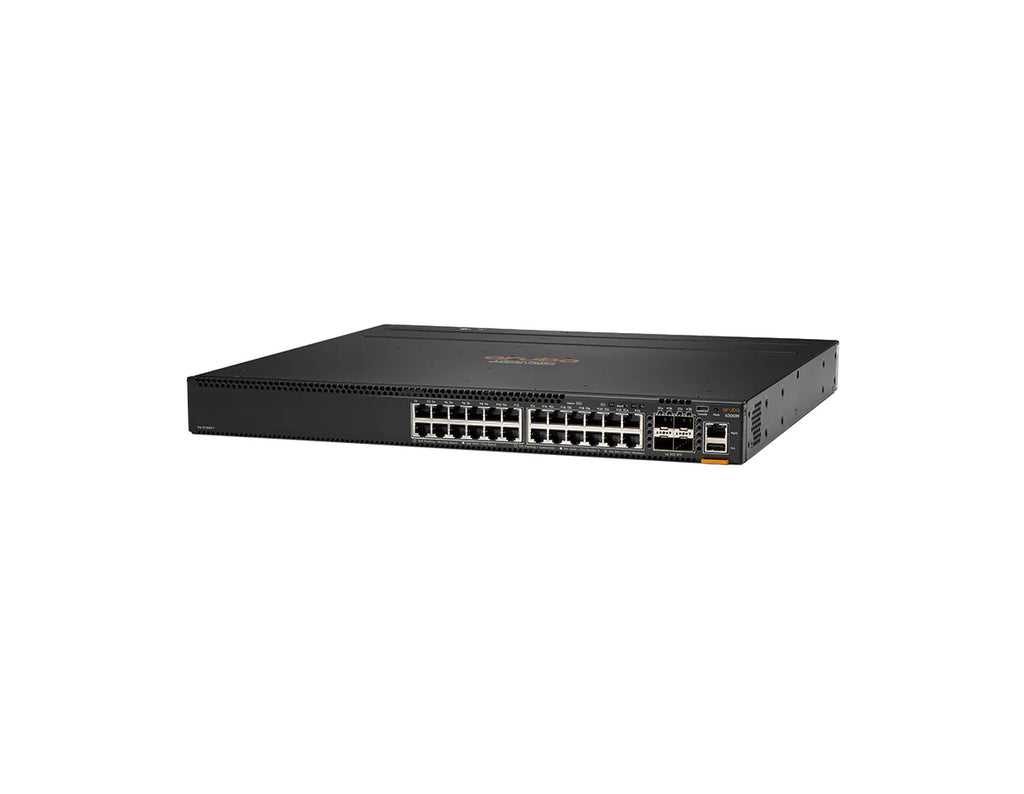

HPE Aruba JL664A CX 6300M 24-port 1GbE and 4-port SFP56 Switch
The Aruba JL664A 6300M switch delivers enterprise-grade Layer 3 performance with 24 Gigabit Ethernet access ports and 4 high-speed uplinks supporting 1/10/25/50G SFP/SFP+/SFP28/SFP56 connections. Designed for scalable enterprise, campus, and branch deployments, this switch enables reliable data connectivity and flexible network growth.
With a switching capacity of 448 Gbps, throughput of 334 Mpps, and ultra-low latency, the JL664A ensures fast, consistent performance for demanding workloads. It supports VSF stacking up to 10 members with 200 Gbps bandwidth, simplifying management and boosting resiliency.
Built with advanced security, traffic control, and centralized management via Aruba Central, AirWave, or CLI, this model provides both efficiency and protection. Dual hot-swappable PSU slots ensure resilience, while front-to-back airflow and energy-efficient design support sustainable data center operations.
Ideal for organizations needing non-PoE, high-speed Layer 3 switching with future-proof uplinks, the JL664A is a versatile solution for enterprise, education, and branch networks.
Key Features:
-
24 x Gigabit Ethernet Ports: Delivers fast, reliable data transfer for connected devices.
-
4 x SFP56 Uplink Ports: Supports 1G, 10G, 25G, and 50G high-speed uplinks for flexible network growth.
-
Layer 3 Capabilities: Includes VLANs, QoS, and advanced traffic management features for optimized network performance.
-
Energy-Efficient Operation: Designed for power savings while maintaining high throughput.
-
Advanced Security: Built-in support for ACLs and 802.1X authentication for secure access control.
Technical Overview:
-
Recommended for: Small to mid-sized enterprises, branch offices, and educational institutions.
-
Ports: 24 x 1GbE, 4 x SFP56 uplinks.
-
Switching Capacity: 448 Gbps.
-
Forwarding Rate: 334 Mpps.
-
Management: Aruba Central, Web GUI, CLI, SNMP.
-
Energy Efficiency: Complies with energy-saving standards.
