[shortdesc]
- Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP+, No PoE (Data Only, Layer 2+
[/shortdesc]
[properties]
| Properties |

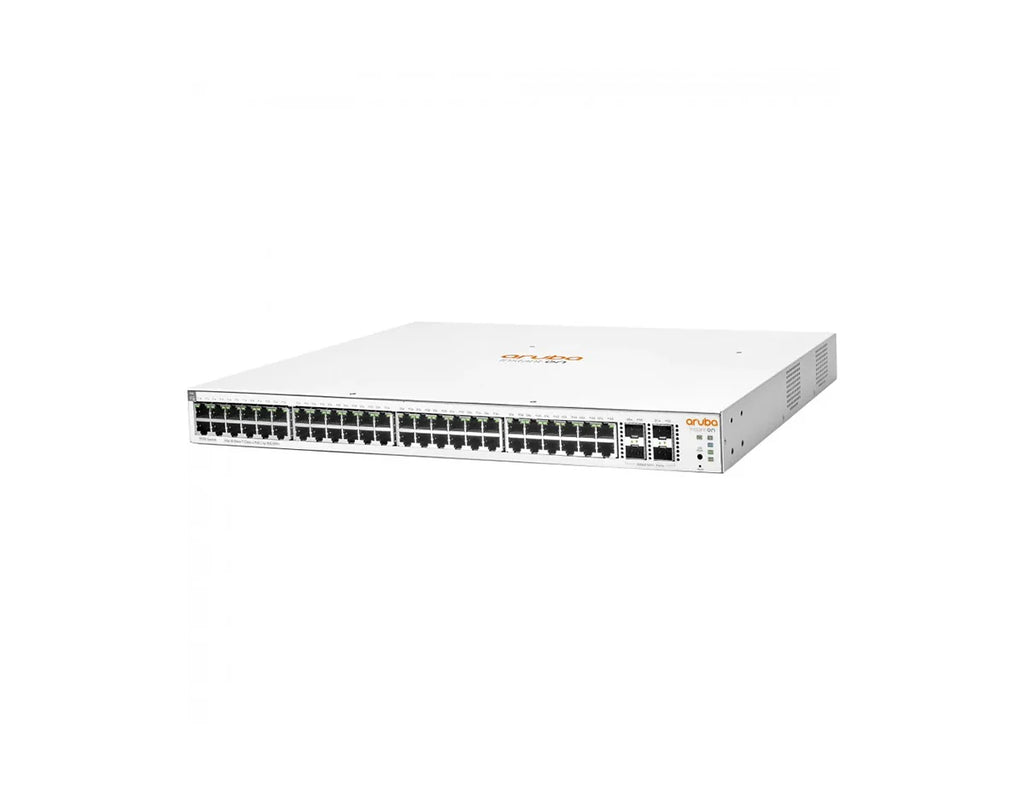

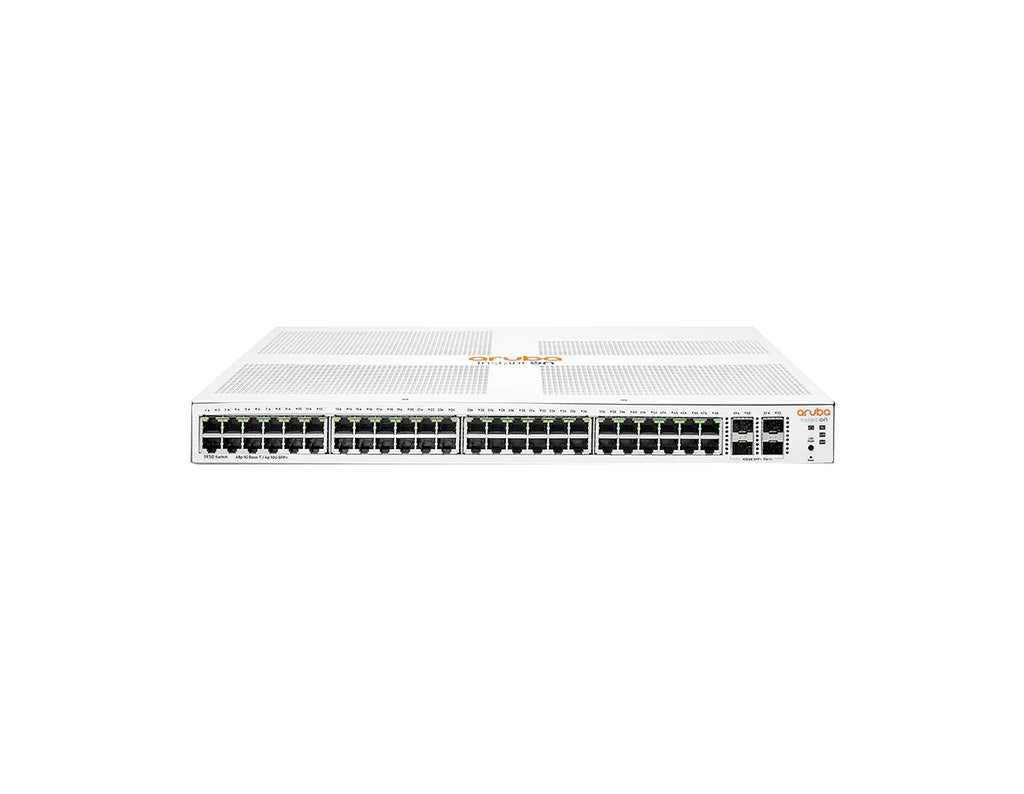

Aruba Instant On 1930 48G 4SFP/SFP+ Switch (JL685A |
| Description |
JL685A is an Aruba Instant On 1930 48G 4SFP/SFP+ Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit
switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video
conferencing, enabling consistent connectivity to enhance performance. |
| Product Family |
Aruba Instant On 1930 Switch Series |
| Product Type |
Switch |
| Key Features: |
• Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE (i.e. PoE+ models
• PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
• Two dedicated 1G SFP fiber ports on 8-port models, and four dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
• Security controls let you define access in each area of your network, keeping your business data safe
• Convenient mobile app and web-based GUI for set up, management and troubleshooting |
[/properties] [specifications]
| Specifications |
Aruba Instant On 1930 48G 4SFP/
SFP+ Switch
(JL685A |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T; Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports |
| Dimensions |
17.42(w x 11.12(d x 1.73(h in (44.25 x 28.24 x 4.39 cm (1U height |
| Weight |
6.91 lb (3.13 kg |
| Processor and memory |
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps |
130.95 Mpps |
| Switching capacity |
176 Gbps |
| Operating temperature |
32°F to 104°F (0°C to 40°C |
| Operating relative humidity |
15% to 95% @ 104°F (40°C |
| Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C |
| Nonoperating/Storage relative humidity |
15% to 95% @ 140°F (60°C |
| Altitude |
up to 10,000 ft (3 km |
| Idle power |
16.8 W |
| PoE |
Not supported (Data only |
| Power Supply |
Internal power supply |
| Electrical Characteristics |
| Frequency |
50/60 Hz |
| AC voltage |
100 - 127 / 200 - 240 VAC |
| Current |
.8/.5 A |
| Maximum power rating |
36.9 W |
| Idle power |
16.8 W |
| Power supply |
Internal power supply |
| Safety |
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/CSA-C22.2 No.
60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2;
EN 62368-1:2014 |
| Emissions |
VCCI-CISPR 32, Class A;
CNS 13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016/CISPR-32,
Class A |
| Immunity |
|
| Generic |
CISPR 24 / CISPR 35 |
| EN |
EN 55024:2010 / EN 55035:2017 |
| ESD |
IEC 61000-4-2 |
| Radiated |
IEC 61000-4-3 |
| EFT/Burst |
IEC 61000-4-4 |
| Surge |
IEC 61000-4-5 |
| Conducted |
IEC 61000-4-6 |
| Power frequency magnetic field |
IEC 61000-4-8 |
| Voltage dips and interruptions |
IEC 61000-4-11 |
| Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
| Flicker |
EN 61000-3-3, IEC 61000-3-3 |
[/specifications] [accesories]
| Accessories |
|
| Supported Transceivers |
| J4858D |
Aruba 1G SFP LC SX 500m MMF XCVR (5 Units |
| J4859D |
Aruba 1G SFP LC LX 10km SMF Transceivers (5 Units |
| J8177D |
Aruba 1G SFP RJ45 T 100m Cat5e XCVR (5 Units |
| J9150D |
Aruba 10G SFP+ LC SR 300m MMF XCVR:Aruba Aruba Campus Transceivers |
| J9281D |
Aruba 10G SFP+ to SFP+ 1m DAC Cable |
| J9283D |
Aruba 10G SFP+ to SFP+ 3m DAC Cable |
[/accesories]
HPE Aruba Instant On 1930 48G 4SFP/SFP+ Switch (JL685A
The HPE Aruba Instant On 1930 48G 4SFP/SFP+ Switch (JL685A is designed for small businesses that require reliable and high-performance networking. With 48 Gigabit Ethernet ports and 4 SFP/SFP+ uplink ports, this smart-managed switch provides seamless and efficient data transfer for bandwidth-intensive applications. Ideal for growing networks, it offers advanced Layer 2+ features, making it a flexible solution for small business needs.
Key Features:
-
48 x 1GbE Ports: Provides high-speed wired connectivity for multiple devices, ensuring smooth data transfer and reliable performance.
-
4 x SFP/SFP+ Uplink Ports: Supports uplink speeds of up to 10Gbps, ensuring fast, reliable connections to the network core or other switches.
-
Layer 2+ Management: Includes advanced features such as VLANs, link aggregation, static routing, and ACLs for efficient network management and traffic segmentation.
-
Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption during low network activity periods.
-
Cloud-Based and Mobile App Management: Easily monitor, manage, and configure your network through the Aruba Instant On mobile app or cloud-based web interface from anywhere.
Technical Overview:
-
Recommended for: Small businesses, branch offices, and retail environments.
-
Ports: 48 x 1GbE ports, 4 x 1G/10G SFP/SFP+ uplink ports.
-
Switching Capacity: 176 Gbps.
-
Forwarding Rate: 130.95 Mpps.
-
Layer 2+ Features: Supports VLANs, static routing, link aggregation, and ACLs for efficient traffic management.
-
Management: Instant On Portal, Web browser, SNMP Manager, Cloud-based mobile app
-
Energy Efficiency: Meets IEEE 802.3az standards for reduced power consumption.
You can check the related tab for the JL685A datasheet.
