Overview

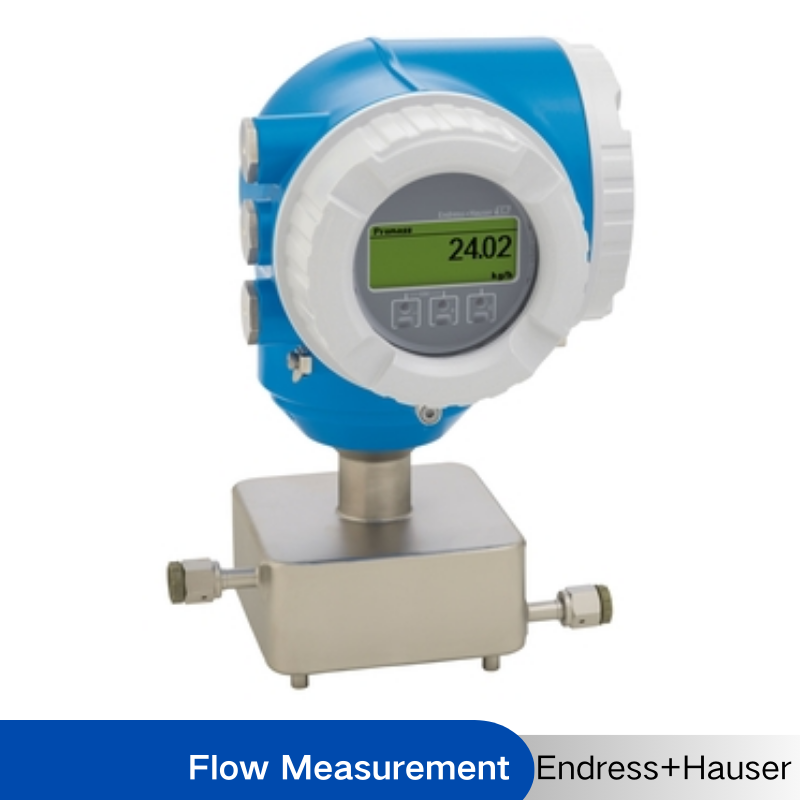

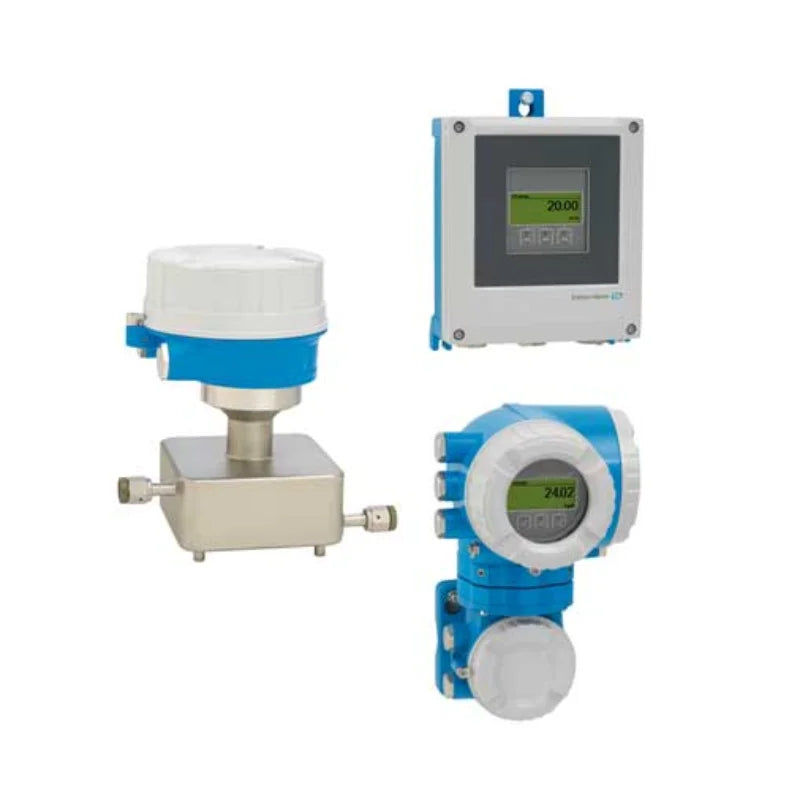

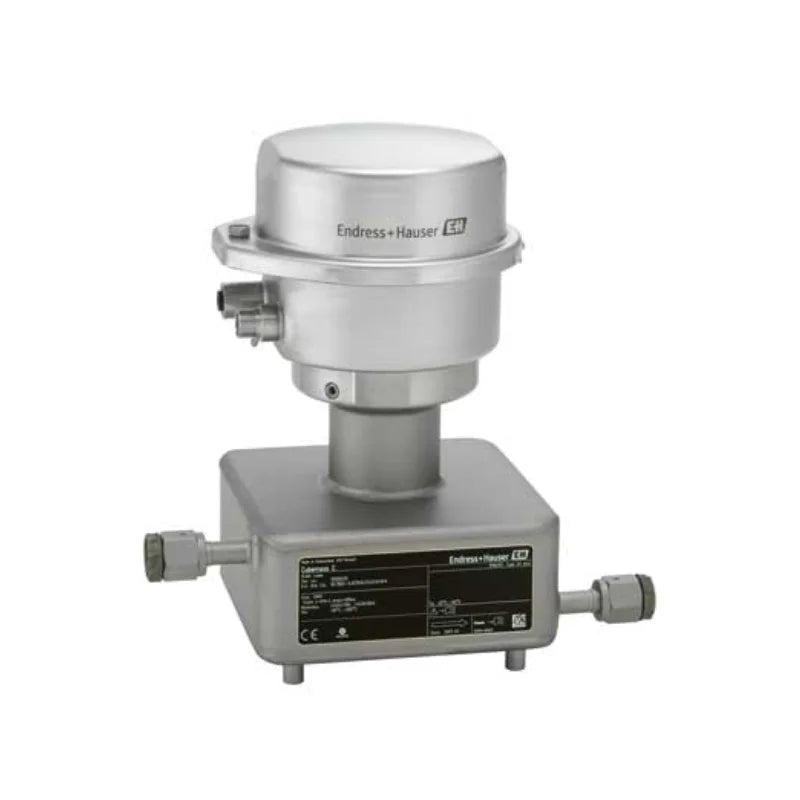

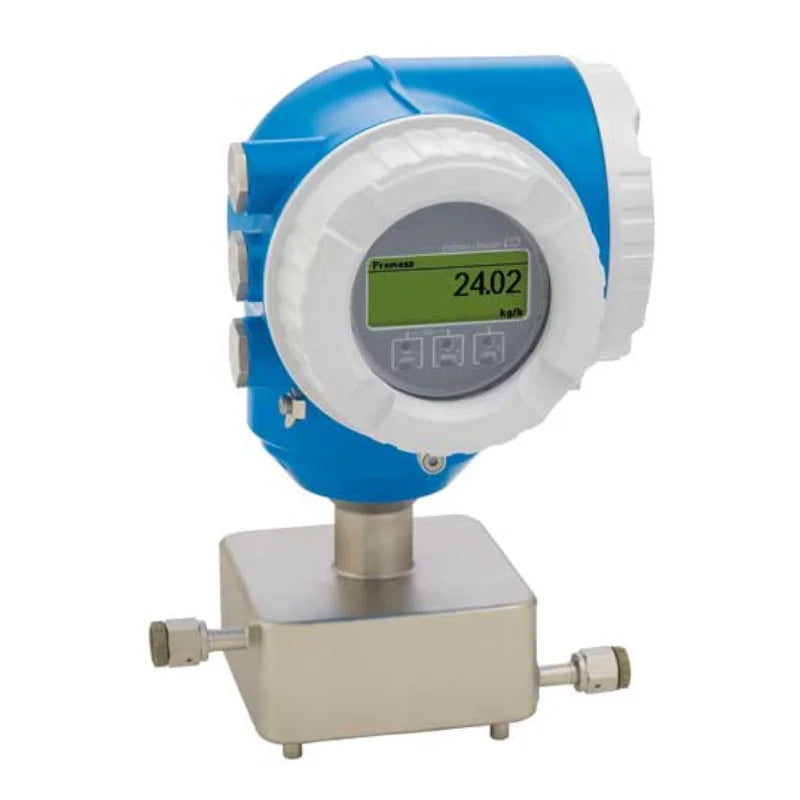

Endress+Hauser 8C3B Proline Cubemass C300 Coriolis Flowmeter is a compact sensor for smallest quantities with a compact, easily accessible transmitter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm3 * Measuring range 0 to 1000 kg/h (0 to 37 lb/min) * Medium temperature range –50 to +205 °C (–58 to +401 °F) * Max. process pressure PN 40, Class 300, 10K, 400 bar (5800 psi) * Wetted materials Measuring tube: 1.4539 (904L) Connection: 1.4539 (904L); 1.4404 (316/316L)
Application
Cubemass C is the ideal sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics. Neither high pressure nor alternating flow conditions compromise its accuracy. With its compact transmitter Cubemass C 300 offers high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Measuring accurately smallest quantities of liquids and gases Device properties * Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄") * Process pressure up to 400 bar (5800 psi) * Medium temperature up to +205 °C (+401 °F) * Compact dual-compartment housing with up to 3 I/Os * Backlit display with touch control and WLAN access * Remote display available
Benefits
* Space-saving installation – compact single-tube design * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Suitable for skids – lightweight sensor * Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Swaziland
Brand Name
Endress+Hauser
Model Number
Proline Cubemass C 300
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Compact sensor for smallest quantities with a compact, easily accessible transmitter. Measuring accurately smallest quantities of liquids and gases.
Sensor Features
Space-saving installation – compact single-tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Suitable for skids – lightweight sensor. Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄"). Process pressure up to 400 bar (5800 psi). Medium temperature up to +205 °C (+401 °F).
Transmitter Features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm3
Measuring Range
0 to 1000 kg/h (0 to 37 lb/min)
Max. Process Pressure
PN 40, Class 300, 10K, 400 bar (5800 psi)
Medium Temperature Range
-50 to 205 °C (-58 to 401 °F)
Ambient Temperature Range
Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F)
Sensor Housing Material
1.4301 (304), corrosion resistant
Transmitter Housing Material
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L
Degree Of Protection
Standard: IP66/67, type 4X enclosure
Display/Operation
4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available
Outputs
3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs
Status input 4-20 mA input
Digital Communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)"
Hazardous Area Approvals
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety
CE, C-tick, EAC marking
Functional Safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure Approvals And Certificates
CRN
Material Certificates
3.1 material
