Overview

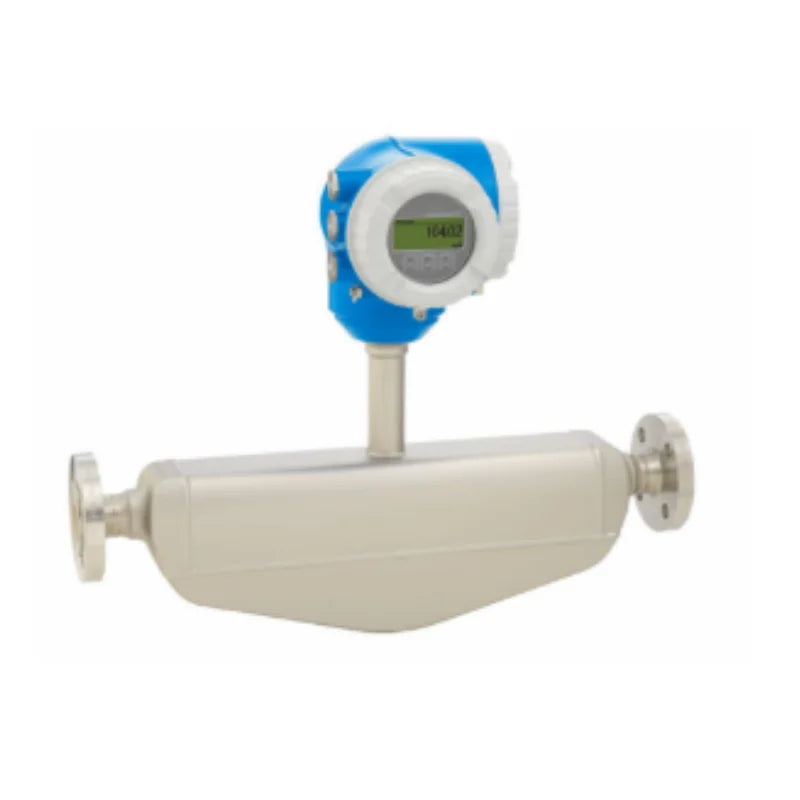

Endress+Hauser 8H3B Proline Promass H300 Coriolis Flowmeter is a chemically resistant single-tube flowmeter with a compact, easily accessible transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas, Tantalum only): ±0.5 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min) * Medium temperature range Tantalum: –50 to +150 °C (–58 to +302 °F) Zirconium: –50 to +205 °C (–58 to +401 °F) * Max. process pressure PN 40, Class 300, 20K * Wetted materials Measuring tube: Tantalum 2.5W; 702 (UNS R60702) Connection: Tantalum; 702 (UNS R60702)
Application
The highly accurate Promass H is destined for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its compact transmitter Promass H 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables process safety at all times. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance Device properties * Measuring tube made of Tantalum, Zirconium * Nominal diameter: DN 8 to 50 (3/8 to 2") * Medium temperature up to +205 °C (+401 °F) * Compact dual-compartment housing with up to 3 I/Os * Backlit display with touch control and WLAN access * Remote display available
Benefits
* Maximum safety for chemically aggressive fluids – corrosion-resistant wetted parts * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in-/outlet run needs * Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass H300
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Chemically resistant single-tube flowmeter with an ultra-compact transmitter. Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance.
Sensor Features
Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).
Transmitter Features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas, Tantalum only): ±0.5 % Density (liquid): ±0.0005 g/cm³
Measuring Range
0 to 70 000 kg/h (0 to 2570 lb/min)
Max. Process Pressure
PN 40, Class 300, 20K
Medium Temperature Range
Tantalum: –50 to +150 °C (–58 to +302 °F) Zirconium: –50 to +205 °C (–58 to +401 °F)
Ambient Temperature Range
Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F)
Sensor Housing Material
1.4301 (304), corrosion resistant
Transmitter Housing Material
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L
Degree Of Protection
Standard: IP66/67, type 4X enclosure
Display/Operation
4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available
Outputs
3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
Inputs
Status input 4-20 mA input
Digital Communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power Supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety
CE, C-tick, EAC marking
Functional safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine Approvals And Certificates
PED, CRN
Material Certificates
3.1 material
