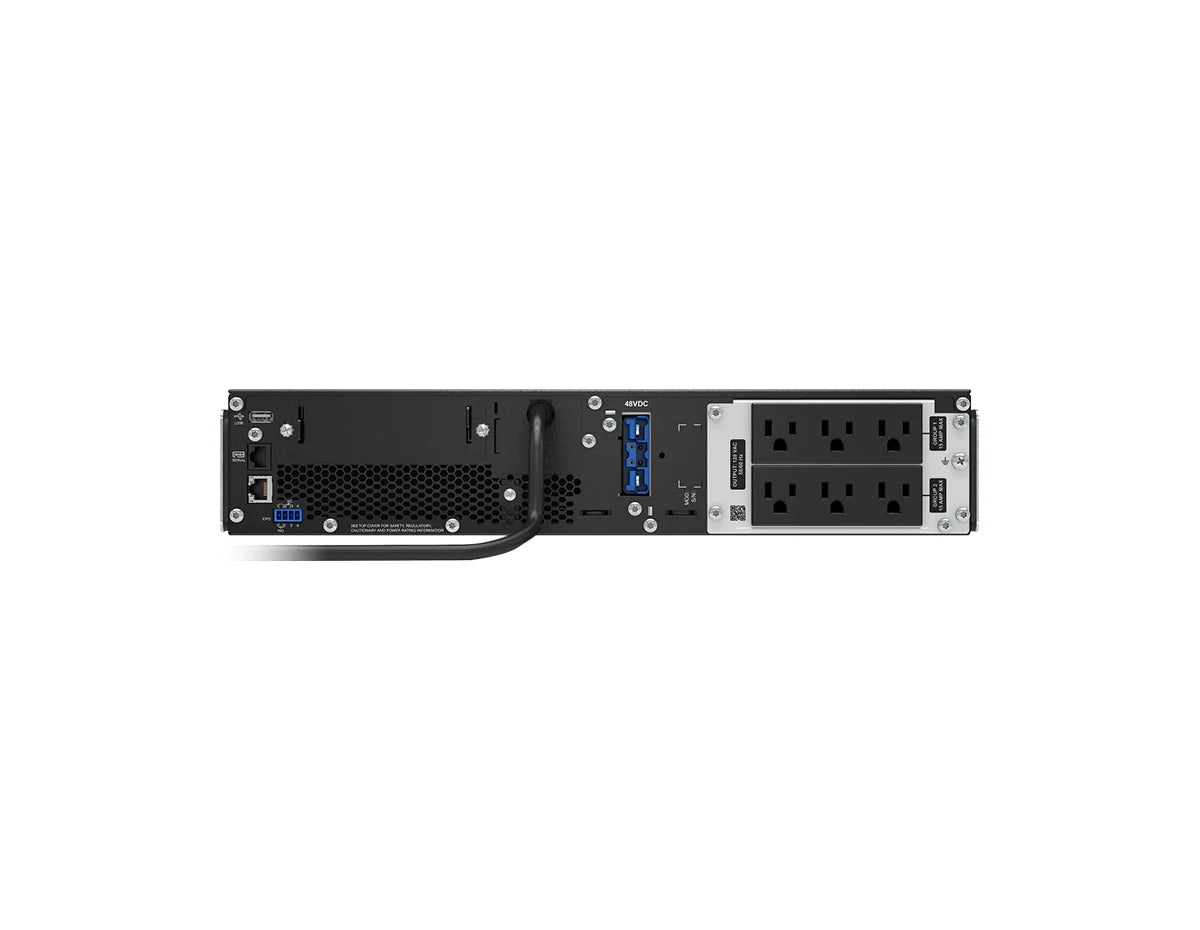

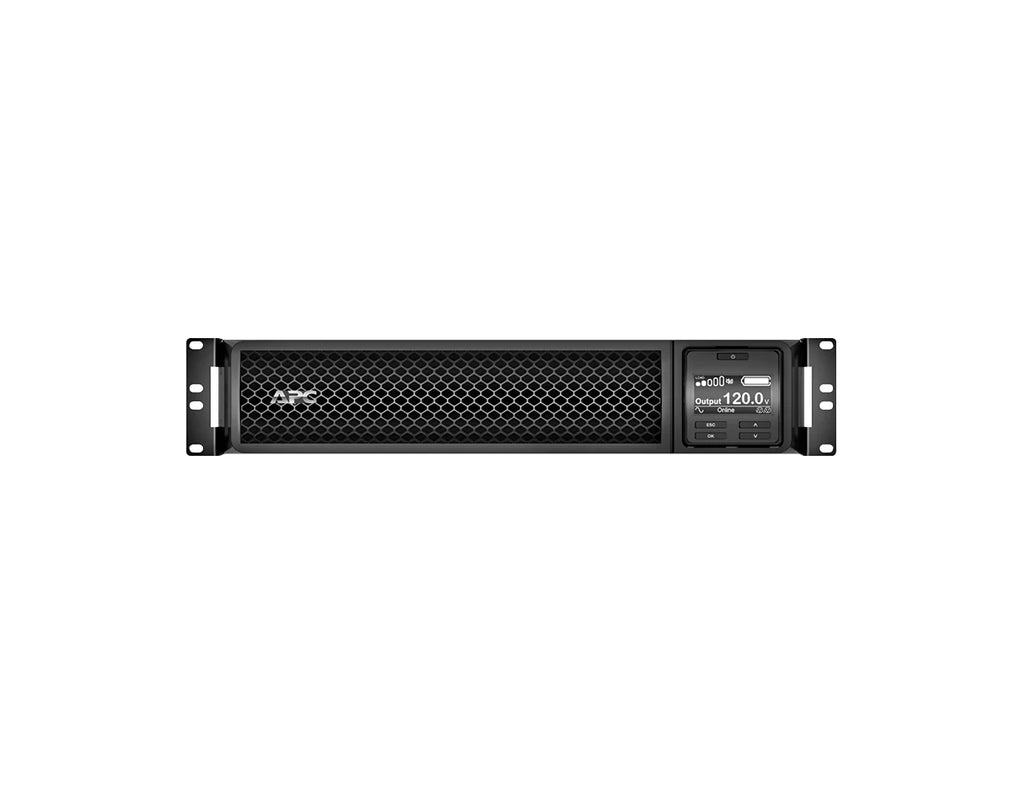

[shortdesc]1500VA / 1350W, Online Double-Conversion, 2U Rackmount, 6x NEMA 5-15R, SmartSlot Expansion[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SRT1500RMXLA |
| Product Type |
Smart-UPS On-Line, Double Conversion |
| Form Factor |
Rackmount 2U |
| Dimensions (H x W x D |
3.3" x 17.008" x 20.0" (85 x 432 x 508 mm |
| Weight |
48.5 lb (22 kg |
| Color |
Black |
| Number of Rack Units |
2U |
| Cable Length |
6 ft (1.8 m |
| Cooling |
Active (fan-based |
[/properties]
[specifications]
| Capacity |
1500 VA / 1350 W |
| Input Voltage |
120 V |
| Input Connection Type |
NEMA 5-15P |
| Input Frequency |
47–70 Hz auto-sensing |
| Output Voltage |
120 V |
| Output Connections |
6 × NEMA 5-15R |
| Waveform Type |
Sine wave |
| Topology |
Double Conversion On-Line |
| Transfer Time |
0 ms (on-line |
| Bypass Type |
Built-in Bypass |
| Crest Factor |
3:1 |
| Harmonic Distortion |
<2% |
| Battery Type |
Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 91 W rated |
| Extendable Runtime |
Yes |
| Surge Energy Rating |
480 J |
| Acoustic Noise |
50 dBA |
| Thermal Dissipation |
463 BTU/h |
| Operating Temperature |
0–40 °C (32–104 °F |
| Operating Humidity |
0–95% non-condensing |
| Altitude |
0–10,000 ft operating |
| Communications |
USB, SmartSlot (1 free, EPO, Audible/visible alarms |
| Certifications |
ENERGY STAR V2.0 (USA |
[/specifications]
[accesories]
| Rack Mounting Hardware |
Included in the box |
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| USB Cable |
Included in the box |
| Documentation |
CD with software, Documentation CD, Installation guide, Warranty card |
[/accesories]
Overview
This 2U APC Smart-UPS On-Line unit provides 1500VA / 1350W of clean, conditioned power at 120V for mission-critical servers, storage, and network hardware. Its high-density design pairs continuous double-conversion protection with scalable runtime to maintain availability in demanding IT environments.
Key Features & Benefits
-
1500VA / 1350W Output: Sized for essential racks of servers, storage, and network devices.
-
Double-Conversion Online: Continuous AC–DC–AC conversion delivers pure sine wave power independent of input quality.
-
2U Rackmount Form Factor: Fits standard racks; rails and brackets are included for straightforward installation.
-
6x NEMA 5-15R Outlets: Support common 120V IT loads with a single NEMA 5-15P input.
-
SmartSlot Enabled: Add optional management cards for remote monitoring and control.
-
Runtime Scalability: Supports external battery packs to extend backup duration as needs grow.
Technical Deep Dive
Online double-conversion topology continuously rebuilds the output power, isolating connected equipment from voltage sags, surges, frequency drift, and electrical noise. Because the inverter always supplies the load, sensitive systems receive a consistent, regulated sine wave.
The 48V lead-acid battery system (hot-swappable is engineered for dependable backup with a typical recharge time of 3 hours, restoring readiness after discharge. Audible and visible alarms help teams act quickly if conditions change.
Through the APC SmartSlot, you can integrate optional network management to gain centralized visibility, environmental monitoring, and orderly shutdown capabilities across your infrastructure.
Ideal Applications
- Rack-mounted servers and edge compute nodes
- Network closets and branch office IT
- Retail and healthcare systems requiring stable 120V power
- Small to mid-size virtualization and storage deployments
Frequently Asked Questions (FAQs
Q1: How is it installed?
A: The unit is designed for 2U rack mounting and ships with rack rails, brackets, and support hardware for standard racks.
Q2: What performance and runtime should I expect?
A: The UPS supplies 1500VA / 1350W of sine wave power at 120V. Backup time depends on load and can be extended with external battery packs. Actual runtime varies with load level, battery condition, and environment.
Q3: How is it managed?
A: Use the SmartSlot to add optional network management for remote monitoring, alarming, and graceful shutdown integration.
