[shortdesc]24x 1G PoE+ ports, 4x 10G SFP+ uplinks, Layer 2/3 managed, 128 Gbps switching, -40°C to 75°C rugged[/shortdesc]
[properties]
| Model |
Cisco Catalyst IE-9320-24P4X-E |
| Product Type |
Managed Industrial Ethernet Switch |
| Ports |
24 x 10/100/1000 (PoE+ + 4 x 1/10 Gigabit SFP+ uplink |
| Switching Bandwidth |
128 Gbps (full duplex |
| Forwarding Rate |
95.23 Mpps |
| MAC Address Table Size |
24,000 entries |
| PoE Capability |
IEEE 802.3af/at/bt, Perpetual and Fast PoE support |
| PoE Power Budget |
Up to 720 W with dual 400 W PSUs |
| Memory |
4 GB DRAM; 8 GB Flash |
| Removable Storage |
USB 2.0, SD card slot |
| Redundant Power Supply |
Supported (1+1 |
| Operating Temperature |
-40 °C to 75 °C (-40 °F to 167 °F |
| MTBF |
489,710 hours |
| Dimensions (H × W × D |
1.72 × 17.5 × 14.0 in (43.7 × 444.5 × 355.6 mm with 150 W PSUs; 15.18 in depth with 250 W PSU; 15.57 in with 400 W PSU |
| Weight |
9.7 lb (4.4 kg |
| Form Factor |
Rack-mountable, 1 RU |
| Compliance |
EN 50121-4, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201 |
[/properties]
[specifications]
| Switching Type |
Gigabit Ethernet with 10G uplinks |
| Software Image |
Cisco IOS XE; Network Essentials (default, Network Advantage (optional |
| Layer Support |
Layer 2 and Layer 3 |
| Routing Protocols |
Static, OSPF/OSPFv3, RIP, Policy-Based Routing; Network Advantage adds BGP, EIGRP, IS-IS, HSRP |
| Security Features |
802.1X, MACsec-128 (Adv: MACsec-256, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, AAA, RADIUS, TACACS+, TrustSec |
| Quality of Service |
802.1p, DSCP, priority queuing, policing, shaping, AutoQoS |
| High Availability |
REP, EtherChannel, StackWise support (up to 4 members |
| Industrial Protocols |
PROFINET, EtherNet/IP (CIP, PTP (IEEE 1588v2 |
| Management |
WebUI, CLI, SNMPv1/v2/v3, NETCONF, RESTCONF, Cisco Catalyst Center |
| Certifications |
EN 55032 Class A, FCC Part 15 Class A, UL 121201, IEC 61850-3, IEEE 1613 |
| Ingress Protection |
IP30 (EN 60529 |
| Relative Humidity |
5% – 95% non-condensing |
[/specifications]
[accesories]
| Included |
Documentation |
| Optional – Power Supplies |
PWR-RGD-AC-DC-H (150W, PWR-RGD-AC-DC-250 (250W, PWR-RGD-AC-DC-400 (400W, PWR-RGD-LOW-DC-H (150W DC |
| Optional – Memory |
SD-IE-16GB= (16 GB SD card |
| Optional – Cables |
CAB-STK-0.5M= (0.5 m Stack cable; CAB-STK-1M= (1 m Stack cable |
| Optional – Mounting Kits |
RM-RGD-19IN= (19” rack-mount kit; RM-RGD-23IN= (23” NEBS rack-mount kit; RM-RGD-ETSI= (ETSI rack-mount kit |
[/accesories]
Rugged Performance for Demanding Industrial Networks

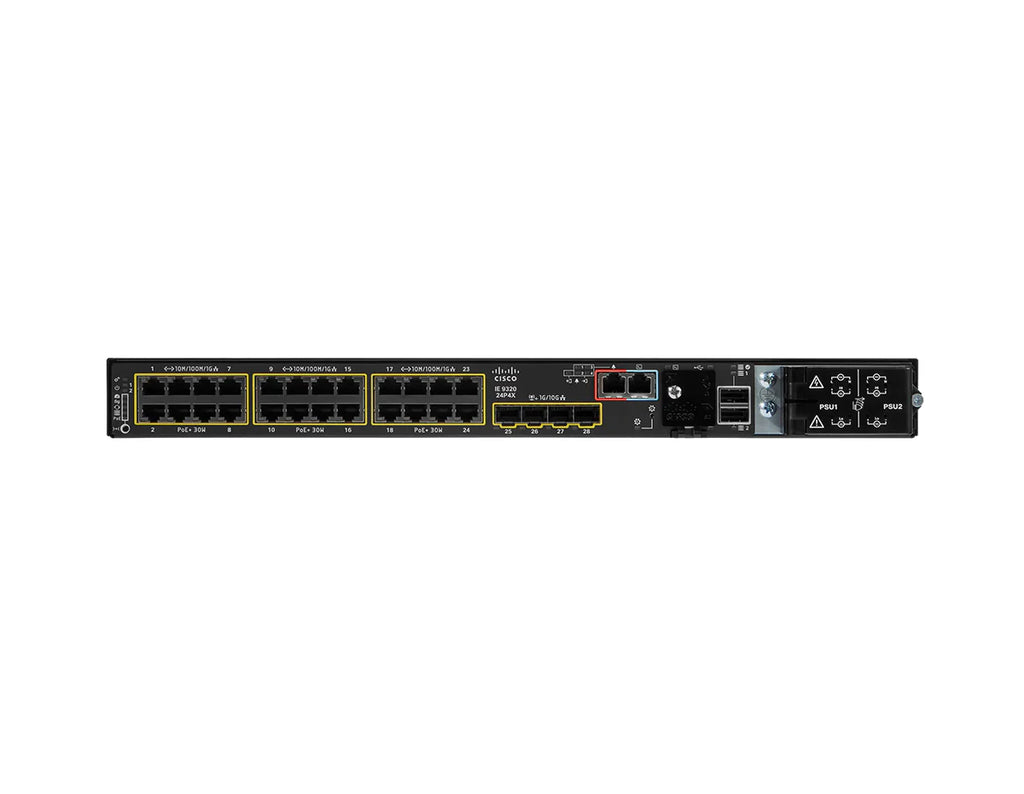

The Cisco Catalyst IE-9320-24P4X-E is a high-density rugged Ethernet switch purpose-built for critical industrial and extended enterprise deployments. With 24 PoE+ ports and four 10G SFP+ uplinks, it delivers secure, resilient connectivity in environments ranging from manufacturing and energy to transportation and smart cities. Designed to operate between -40°C and 75°C, it ensures reliability even in the harshest conditions.
Key Benefits & Features
-
High-density connectivity: 24 Gigabit PoE+ ports and 4x 10G SFP+ uplinks support high-bandwidth devices and traffic aggregation.
-
Industrial-grade resilience: Fanless, shock and vibration hardened design with redundant power options for nonstop operation.
-
Advanced security: Cisco Trust Anchor, MACsec-128 (Adv: 256 and Cisco Cyber Vision support for real-time asset visibility.
-
Optimized PoE support: Up to 720W PoE budget with perpetual and fast PoE for uninterrupted power to critical endpoints.
-
Flexible management: Managed via Cisco IOS XE, Catalyst Center, and a simplified WebUI for streamlined deployment.
Ideal Use Cases
- Smart city and transportation infrastructure requiring ruggedized PoE switches
- Energy and utility substations with strict reliability and compliance needs
- Industrial automation, mining, and manufacturing environments
- Outdoor surveillance with PoE-powered UHD IP cameras
- Secure OT/IT network convergence with advanced segmentation
Technical Specifications
-
Ports: 24x 10/100/1000 PoE+ RJ-45, 4x 1/10G SFP+ uplinks
-
Switching Capacity: 128 Gbps; Forwarding bandwidth: 64 Gbps; Forwarding rate: 95.23 Mpps
-
PoE Budget: Up to 720W with dual 400W supplies
-
Memory: 4 GB DRAM, 8 GB flash
-
MTBF: 489,710 hours
-
Operating Temp: -40°C to 75°C (-40°F to 167°F
-
Redundancy: Dual AC/DC PSU support (1+1
-
Form Factor: 1RU rack-mountable, fanless design
-
Software: Cisco IOS XE with Network Essentials
Deploy Industrial-Grade Switching Today
Upgrade your industrial network with the Cisco IE-9320-24P4X-E for resilient, high-performance connectivity. Order now to secure your infrastructure.
