[properties]
| Properties |
FPR1010-NGFW-K9 |
| Product Family |
Firepower 1000 Series |
| Product Type |
Firewalls |
| Description |
The Cisco FPR1010-NGFW-K9 is a Next-Generation Firewall designed to provide robust security solutions for small to medium-sized businesses. With advanced threat detection and prevention capabilities, this firewall offers a reliable defense against cyber threats. It combines firewall, VPN, and intrusion prevention features, ensuring comprehensive network protection. The FPR1010 is ideal for businesses seeking a scalable and high-performance security solution in a compact form factor. |
[/properties] [specifications]
| Specifications |
FPR1010-NGFW-K9 |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) |
650 Mbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) |
650 Mbps |
| Maximum concurrent sessions, with AVC |
100K |
| Maximum new connections per second, with AVC |
6K |
| Transport Layer Security (TLS) |
150 Mbps |
| Throughput: IPS (1024B) |
650 Mbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) |
300 Mbps |
| Maximum VPN Peers |
75 |
| Cisco Device Manager (local management) |
Yes |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by the Threat Defense Manager (FMC) or, alternatively, from the cloud with Cisco
Defense Orchestrator |
| Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
| URL filtering: number of categories |
More than 80 |
| URL filtering: number of URLs categorized |
More than 280 million |
| Dimensions in. (H x W x D) |
1.82 x 7.85 x 8.07 |
| Form factor (rack units) |
DT |
| Integrated I/O |
8 x RJ-45 (Includes 2 POE+ capable ports) |
| Integrated network management ports |
1x 10M/100M/1GBASE-T
Ethernet port (RJ-45) |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 3.0 Type-A (500mA) |
| Storage |
1 x 200 GB |
| Power supply configuration |
+12V and -53.5V |
| Fans |
None |
| Rack Mountable |
Separate kit must be ordered. |
| Stateful inspection firewall throughput |
2 Gbps |
| Stateful inspection firewall throughput (multiprotocol) |
1.4 Gbps |
| Concurrent firewall connections |
100000 |
| Firewall latency (UDP 64B microseconds) |
- |
| New connections per second |
25000 |
| IPsec VPN throughput (450B UDP L2L test) |
500 Mbps |
| Maximum VPN Peers |
75 |
| Operating Temperature |
32 to 104°F
(0 to 40°C) |
| Regulatory compliance |
Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety |
● UL 60950-1
● CAN/CSA-C22.2 No. 60950-1
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950-1
● GB4943 |
| EMC: emissions |
● 47CFR Part 15 (CFR 47) Class A (FCC Class A)
● AS/NZS CISPR22 Class A
● CISPR22 CLASS A
● EN55022 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KN22 Class A
● CNS13438 Class A
● EN300386
● TCVN7189 |
| EMC: immunity |
● EN55024
● CISPR24
● EN300386
● KN24
● TVCN 7317
● EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6,EN-61000-4-8, EN61000-4-11 |
[/specifications] [accesories] [/accesories]

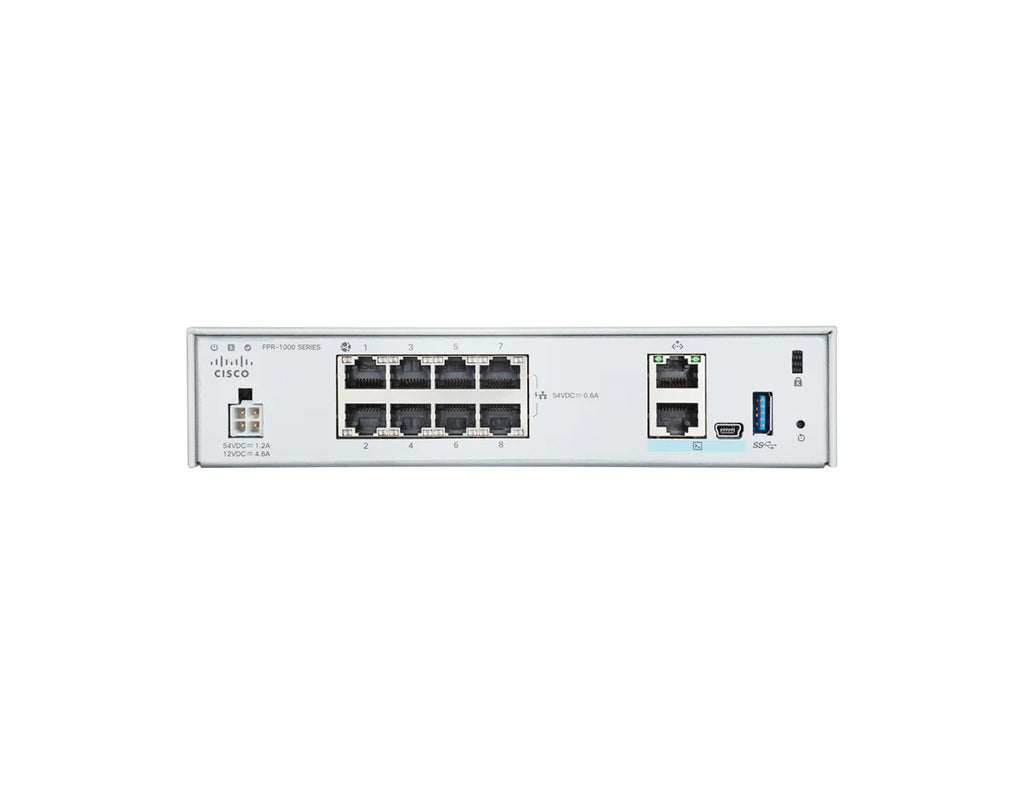

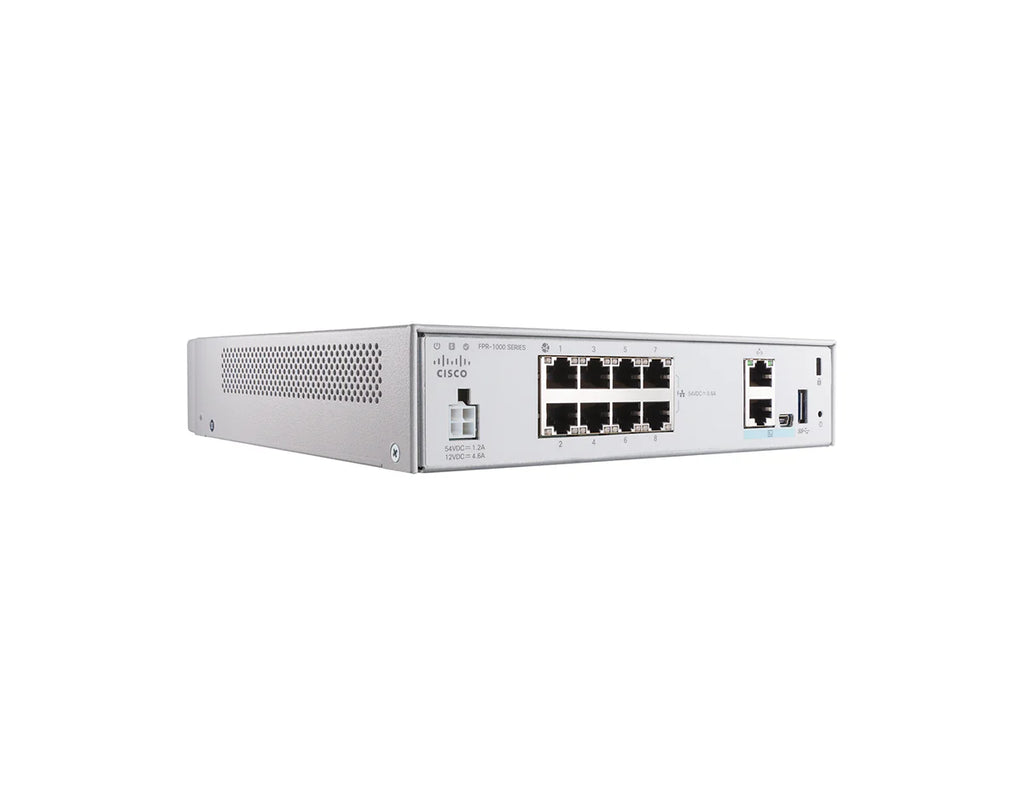

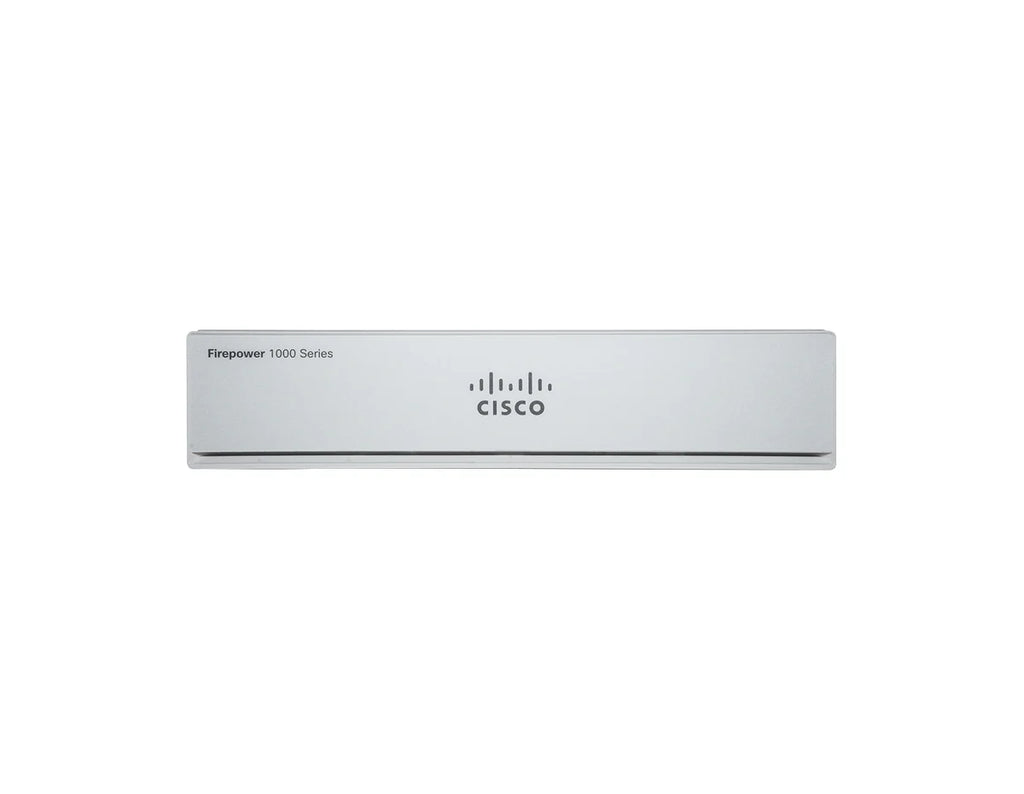

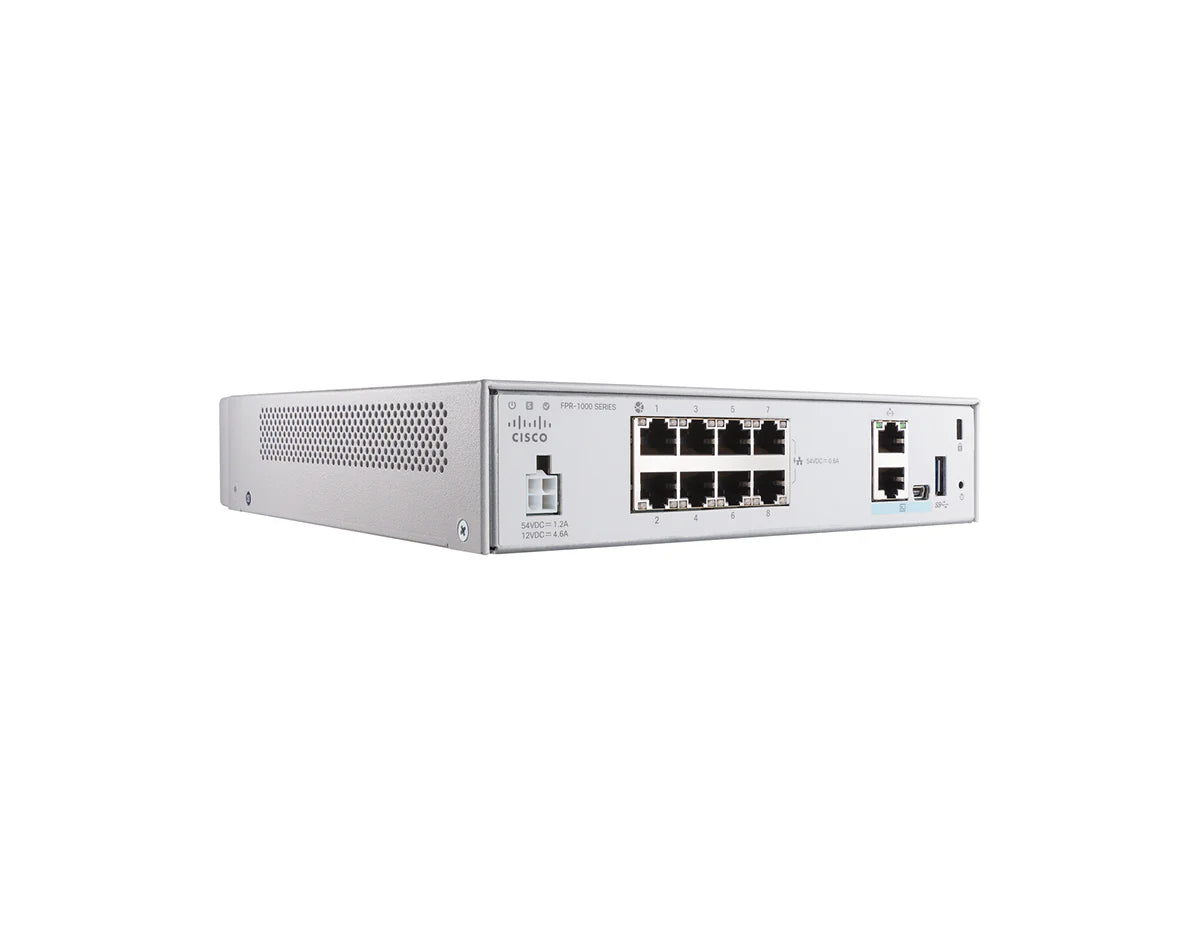

Cisco FPR1010-NGFW-K9 Firewall
The Cisco Firepower 1000 Series is an advanced threat defense with high-performance levels, ideal for small offices and remote branches, featuring Cisco Threat Defense and ASA software flexibility. With the FTD software, the FPR1010-NGFW includes Application Visibility and Control (AVC), which can identify over 4,000 applications, users, and websites.
Key Features:
- Ability to identify over 4,000 users
- Cisco Device Manager
- Cisco Threat Response (CTR)
Please check the FPR1010-NGFW datasheet from the tabs above for detailed specifications.
