[shortdesc]
- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2 with Static Routing
[/shortdesc]
[properties]
| Properties |
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A) |
| Description |
Entry-level access switch with 48 Gigabit PoE+ ports, 4 x 10GbE SFP+ uplinks, supporting static routing for secure branch and SMB networks.
|
| Product Family |
CX 6100 Switch Series |
| Product Type |
Ethernet Switch |
| Ports and Slots |
48x 10/100/1000BASE-T Class 4 PoE Ports
4x 1G/10G SFP+ ports
1x USB-C Console Port
1x USB Type-A Host port |
| Power Supply |
Fixed internal power supply |
| Fans |
Fixed internal fans |
| Input Voltage |
100-127 VAC / 200-240 VAC |
| Power Consumption |
Max Power (without PoE): 45W
Max Power (with PoE): 480W |
| PoE Capability |
370W Class 4 PoE/PoE+ |
| Dimensions |
1.73(h) x 17.4(w) x 12.0(d) in (4.4 x 44.2 x 30.5 cm) |
| Weight |
5.0 kg (11.07 lbs) |
[/properties][specifications]
| Specifications |
CX6100-JL675A |
| CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash |
4 GB DDR3
16 GB eMMC |
| Performance |
| Switching Capacity |
176 Gbps |
| Throughput |
98.6 Mpps |
| Latency |
1 Gbps: 1.9 µs
10 Gbps: 1.8 µs |
[/specifications]

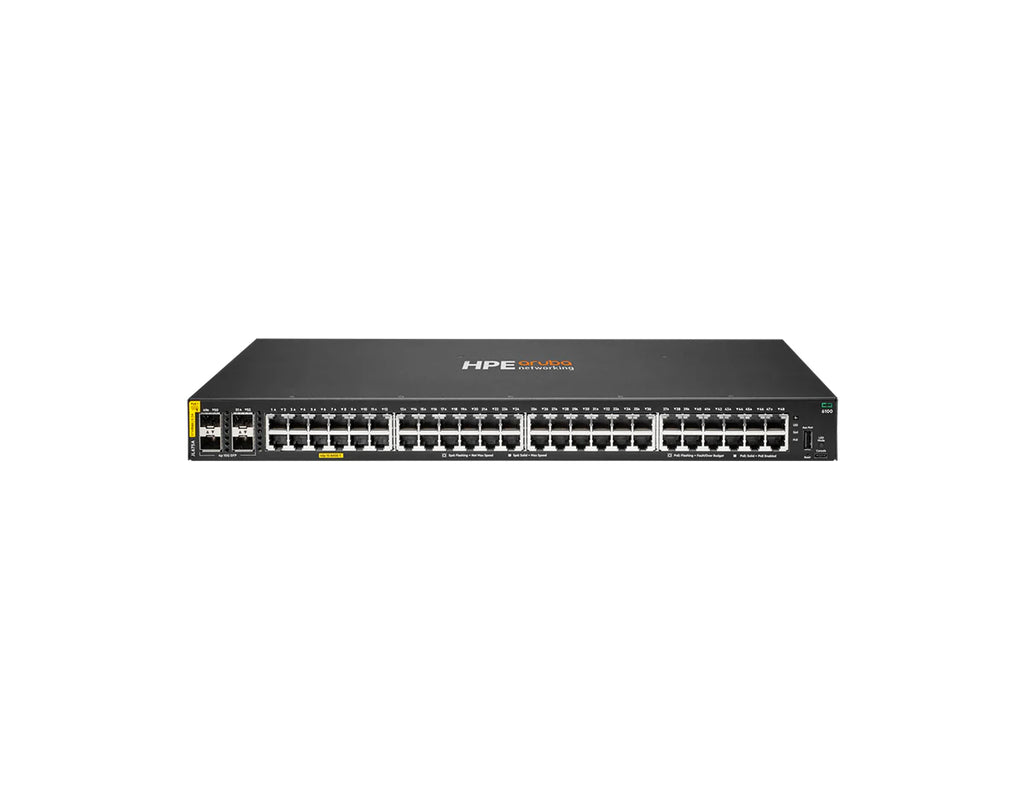

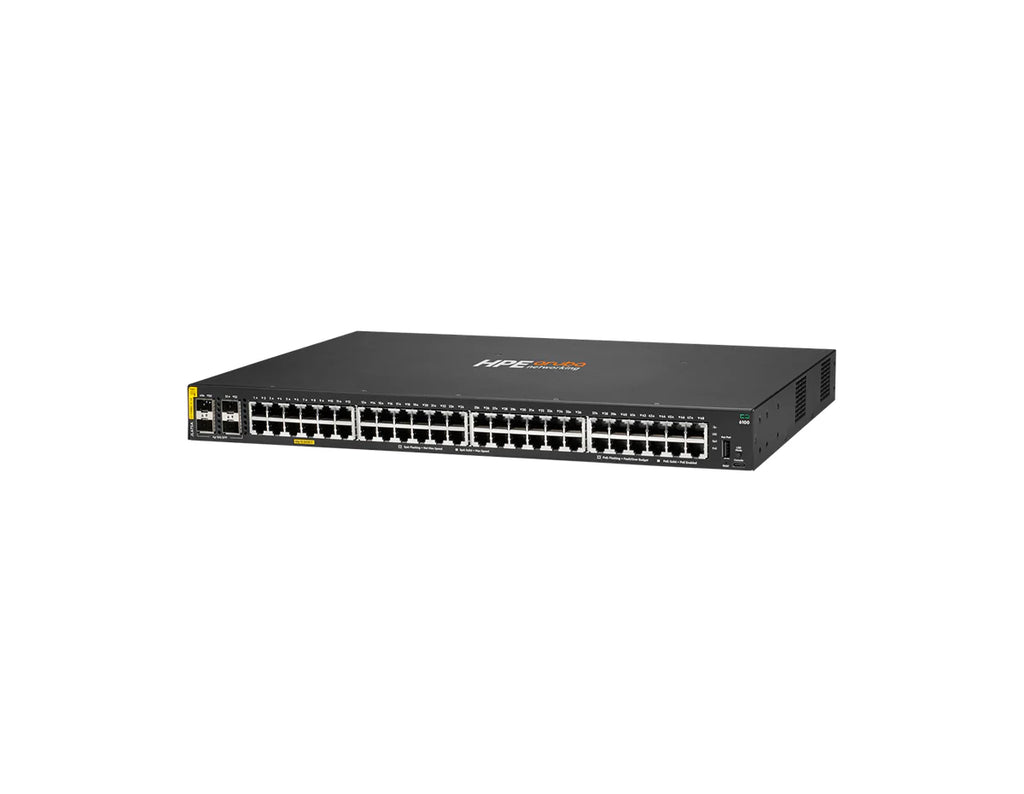

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
The HPE Aruba CX 6100 48G PoE+ 4SFP+ Switch (JL675A) is a modern access switch designed for branch offices, SMBs, and mid-market enterprises. With 48 Gigabit PoE+ ports delivering up to 370W Class 4 PoE power and 4 high-speed 10GbE SFP+ uplinks, it ensures reliable connectivity for IP phones, access points, and security cameras.
Built on the Aruba CX architecture, this Layer 2 switch includes static routing, robust QoS, ACLs, and IPv6 support, simplifying traffic management while maintaining enterprise-grade security. With Aruba Central cloud management, intuitive Web GUI, and industry-standard CLI, it offers flexible deployment and simplified operations.
Key Features:
-
48 x Gigabit PoE+ Ports: Provides up to 370W of Class 4 PoE for powering access points, IP phones, and IoT devices.
-
4 x 10GbE SFP+ Uplink Ports: Offers high-speed fiber uplinks to eliminate bottlenecks at the access layer.
-
Layer 2 with Static Routing: Delivers enterprise-class Layer 2 capabilities with support for static routing, ACLs, robust QoS, and IPv6.
-
Simplified Management: Provides flexibility to manage with HPE Aruba Networking Central, an easy-to-use Web GUI, or industry-standard CLI.
-
License-Free: Simplifies ownership with no switch software licensing or subscriptions required.
Technical Overview:
-
Recommended for: Branch offices, mid-market enterprise, and SMB networks.
-
Ports: 48 x 10/100/1000 Mbps Class 4 PoE ports.
-
Uplinks: 4 x 1G/10G SFP+ ports.
-
PoE Power Budget: 370W.
-
Switching Capacity: 176 Gbps.
-
Forwarding Rate: 98.6 Mpps.
