[shortdesc]
- Add reliable and cost-effective Gigabit Ethernet connections over multi-mode fiber with this 1000Base-SX SFP transceiver module
- Cisco GLC-SX-MM-RGD compatible SFP
- Gb Fiber SFP Transceiver Module
- MM SFP with a maximum distance of 550 m (1804 ft)
- Supports 1000Base-SX networks
[/shortdesc]
[specifications]
| Specifications |
GLC-SX-MM-RGD |
| Description |
1000BASE-SX SFP short wavelength; compatible with the IEEE 802.3z 1000BASE-SX standard, rugged |
| Product Type |
Transceiver |
| Connector |
Dual LC/PC |
| Form Factor |
SFP |
| Transmit Power Range (dBm) |
-3 to -9.5 |
| Receive Power Range (dBm) |
0 to -17 |
| Maximum Channel insertion loss in dB (by fiber type) |
2.4 (FDDI-grade)
2.6 (OM1)
3.4 (400/400)
3.6 (OM2)
5 (OM3)
5 (OM4)
5 (OM5) |
| Transmit and Receive Wavelength Range (nm) |
770 to 860 (850 nm) |
| DOM |
No
|
| Temperature Range |
-40 to 85°C (-40 to 185°F) |
| Dimensions |
8.5 x 13.4 x 56.5 mm |
| Wavelength (nm) |
Fiber Type |
Core Size (μm) |
Modal Bandwidth
(MHz* Km) |
Operating Distance (m) |
| 850 |
MMF |
62.5 |
160 (FDDI-grade) |
220 (722 ft) |
| 62.5 |
200 (OM1) |
275 (902 ft) |
| 50 |
400 (400/400) |
500 (1,640 ft) |
| 50 |
500 (OM2) |
550 (1,804 ft) |
| 50 |
2000 (OM3) |
1000 (3281 ft) |
| 50 |
4700 (OM4) |
1000 (3281 ft) |
| 50 |
4700 (OM5) |
1000 (3281 ft) |
[/specifications]
Rugged SFP for Harsh Environment Ethernet

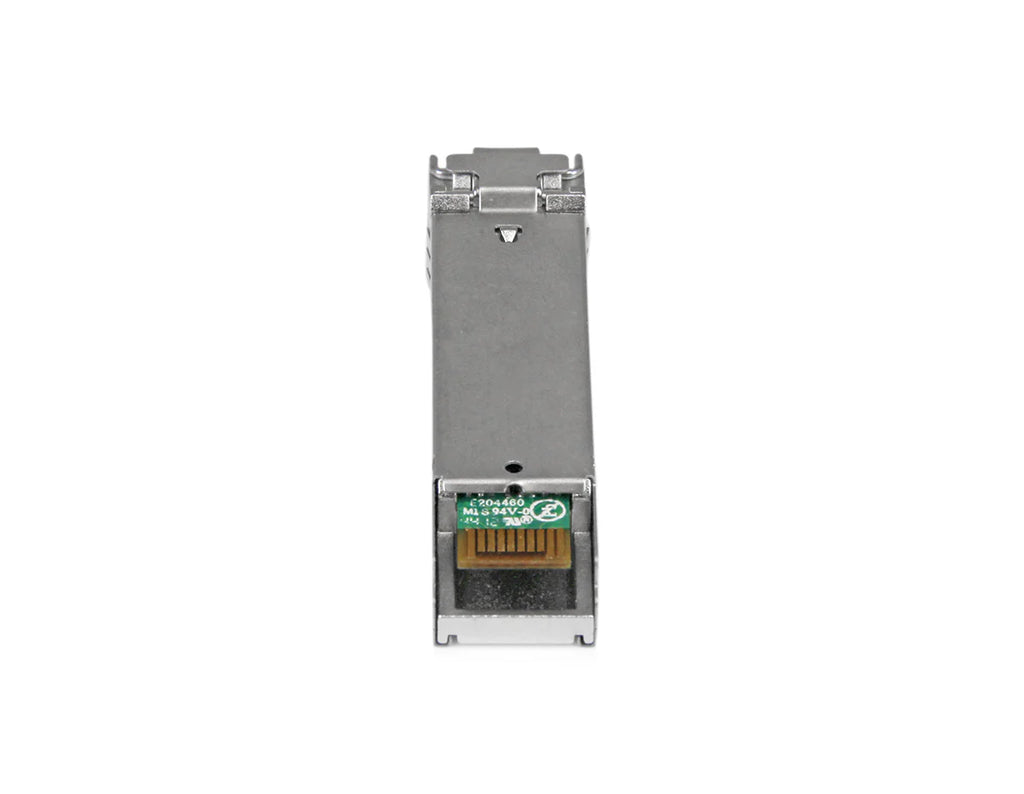

The Genuine Cisco GLC-SX-MM-RGD is a ruggedized SFP transceiver module designed for uncompromising reliability in harsh industrial and outdoor environments. It delivers stable Gigabit Ethernet over 1000BASE-SX using multi-mode fiber (MMF), with link lengths up to 550 meters.
Ideal for industrial switches, transportation infrastructure, and outdoor enclosures, this module is certified to meet Cisco’s RGD environmental specifications, withstanding extreme temperatures from -40°C to +85°C.
As a non-DOM module, the GLC-SX-MM-RGD focuses on providing simple, robust, and cost-effective core connectivity, making it the perfect choice for systems where basic, ultra-reliable performance is the top priority.
When to Choose the GLC-SX-MM-RGD
- You need rugged hardware that performs reliably in industrial or outdoor cabinets.
- Your deployment environment includes extreme temperature swings or vibration.
- You require a simple, robust connection without the need for advanced digital monitoring.
Technical Features:
-
Part Number: GLC-SX-MM-RGD
-
Speed: 1.25 Gbps (1000BASE-SX)
-
Fiber Type: Multi-Mode Fiber (MMF)
-
Wavelength: 850 nm
-
Distance: Up to 550 m (on 50/125 µm MMF)
-
Connector: Duplex LC
-
DOM Support: No
-
Operating Temp: –40 °C to +85 °C (Industrial Grade)
-
Compliance: IEEE 802.3z, RoHS, MSA-compatible
For complete technical details, check the Specifications tab above.
