Description
Overview

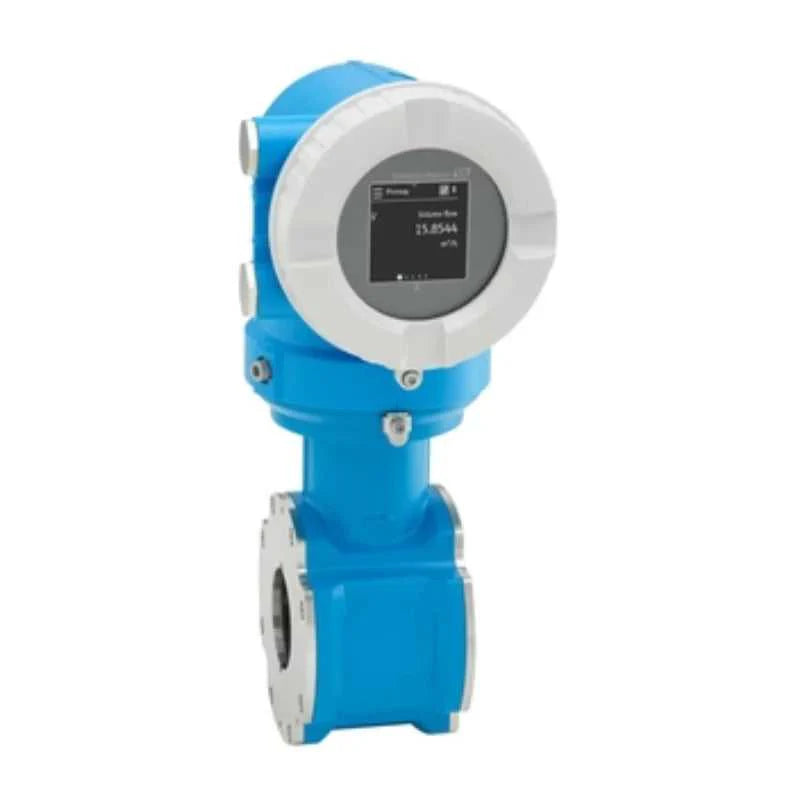

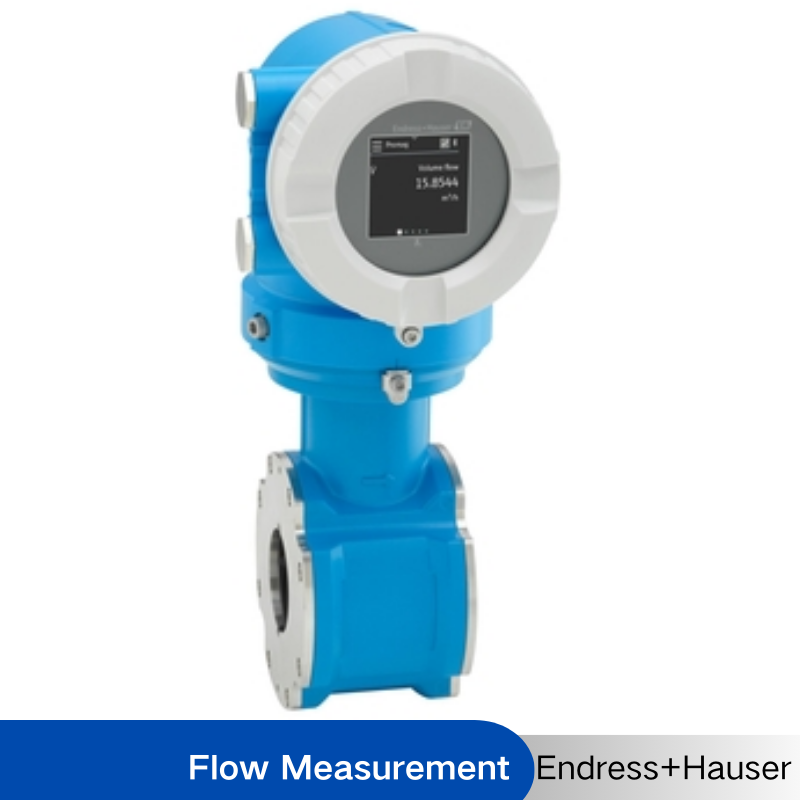

Endress+Hauser Proline Promag D10 Electromagnetic Flowmeter is a highly cost-effective wafer flowmeter with easy-to-use operation concept.
Specs at a glance
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Measuring range 9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min) Medium temperature range Liner material polyamide: 0 to +60°C (+32 to +140°F) Max. process pressure PN 16, Class 150, 10K Wetted materials Liner material polyamide: 0 to +60°C (+32 to +140°F) Electrodes: 1.4435 (316L)
Field of application
The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity. * For basic water applications; optimized for limited space and plastic pipe installations
Device properties * Short installation length and low weight * Integrated ground disks made of stainless steel * International drinking water approvals * System integration with HART, Modbus RS485 * Flexible operation with app and optional display
Benefits
* Easy, fast centering of the sensor – innovative housing construction * Energy-saving flow measurement – no pressure loss due to cross section constriction * Maintenance-free – no moving parts * Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen * Simple, time-saving commissioning – guided parameterization in advance and in the field * Integrated verification – Heartbeat Technology
Specification
Model Number
Proline Promag D 10
Measuring principle
Electromagnetic
Product headline
Highly cost-effective wafer flowmeter with easy-to-use operation concept. For basic water applications, optimized for limited space and plastic pipe installations.
Sensor features
Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Short face-to-face length and low weight. Integrated ground disks made of stainless steel. International drinking water approvals.
Transmitter features
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. 2-line display with push buttons. Device as compact or remote version. HART.
Nominal diameter range
DN 25 to 100 (1 to 4")
Wetted materials
Liner material polyamide: 0 to +60°C (+32 to +140°F) Electrodes: 1.4435 (316L)
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Max. process pressure
PN 16, Class 150, 10K
Medium temperature range
Liner material polyamide: 0 to +60°C (+32 to +140°F)
Ambient temperature range
-40 to 60°C (-40 to 140°F)
Sensor housing material
DN 25 to 100 (1 to 12"): AlSi10Mg, coated
Transmitter housing material
Polycarbonat; AlSi10Mg, coated
Degree of protection
Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure
Display/Operation
LCD display with touch & auto rotate
Outputs
4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA
Digital communication
HART, MODBUS RS485
Power supply
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals
CSA, GP
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Hygienic approvals and certificates
Hygienic approvals and certificates
