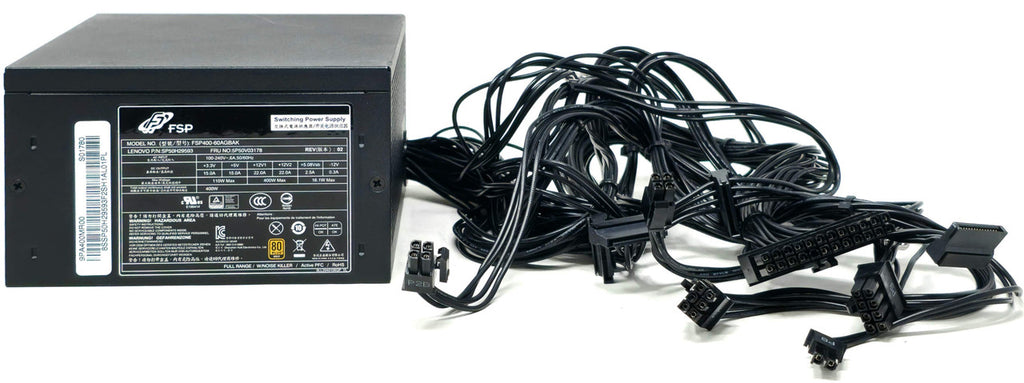

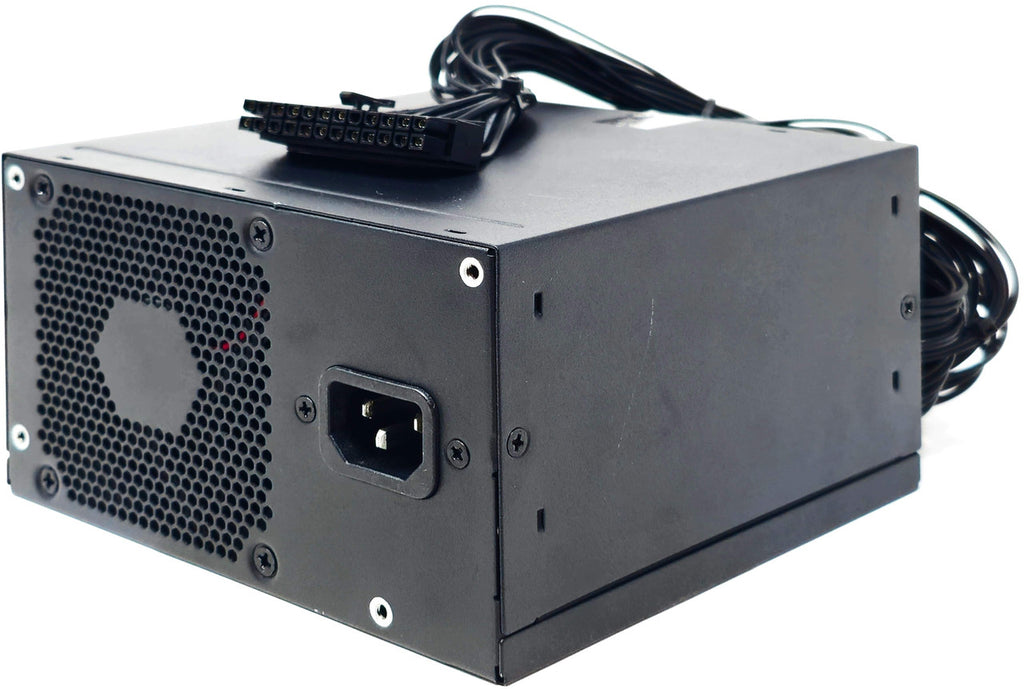

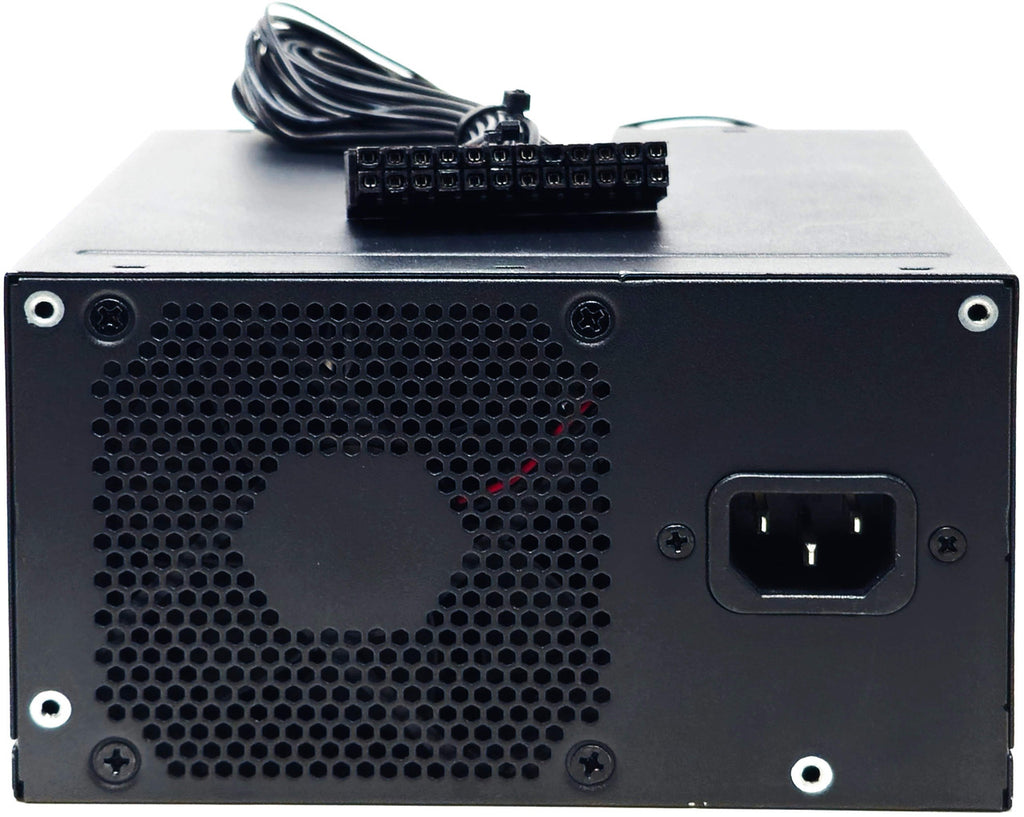

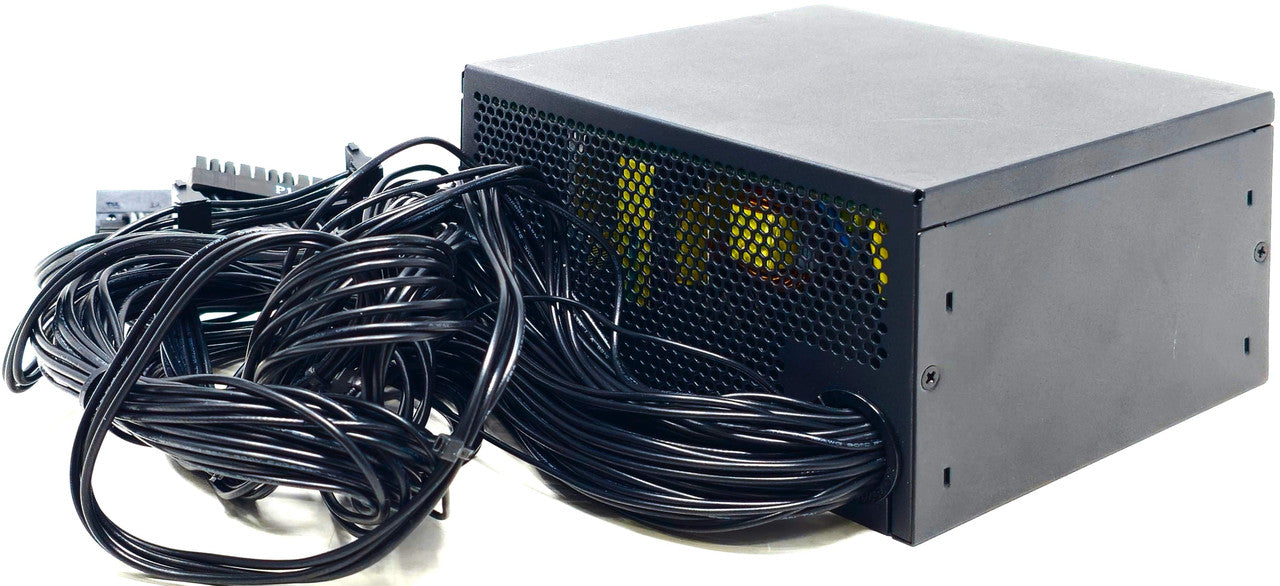

400W Power Supply for Legion T5 T5-26 T5-28 T5-26AMR5 T5-26IOB6 T5-28ICB05
✔️ Grade A, Cleaned, Fully Tested!
✔️ Includes Warranty!
MAX. OUTPUT POWER:
400W
AC INPUT:
100-240V~ ,6A,50/60Hz
DC OUTPUT:
+3.3V = 15.0A
+5V = 15.0A
+12V1 = 22.0A
+12V2 = 22.0A
+5.08Vsb = 2.5A
-12V = 0.3A
Dimensions:
150mm x 86mm x 175mm

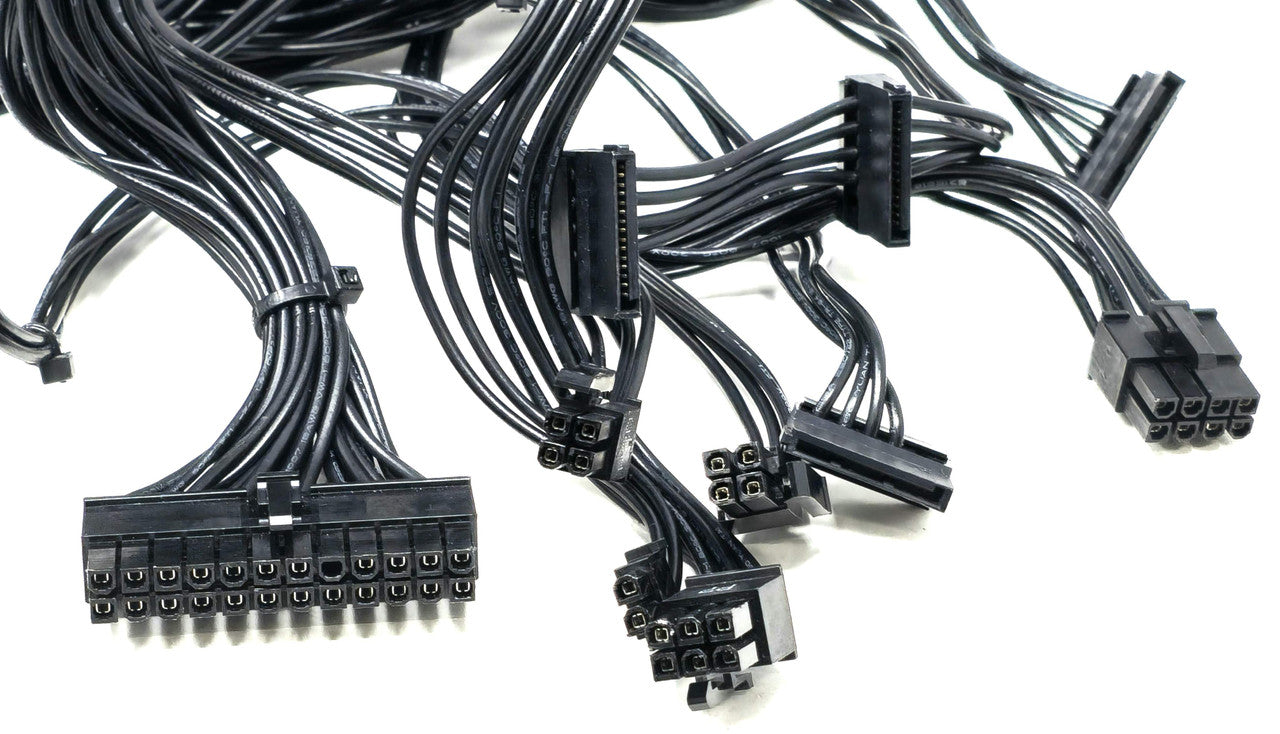

Connectors
(1) 24-Pin ATX Connector (P1)
(2) 4-Pin 12V Connector (P2A) (P2B) (4+4 = 8Pin )
(1) 6-Pin PCI-E Connector (P7)
(4) SATA Connectors (7" & 11" on same cable as mini sata) (18.5" & 24.5" on same cable)
(2) 8-Pin (6+2) (6-Pin P7 + 2-Pin P8) (4+4 P2A P2B)
