[shortdesc]

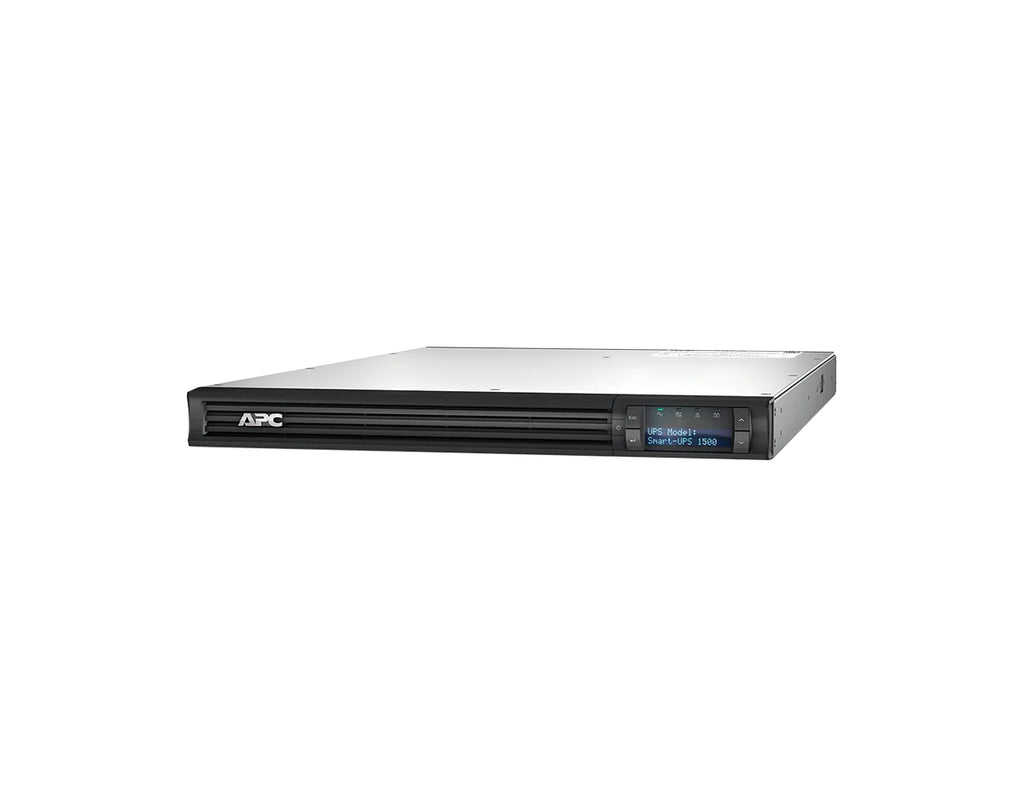

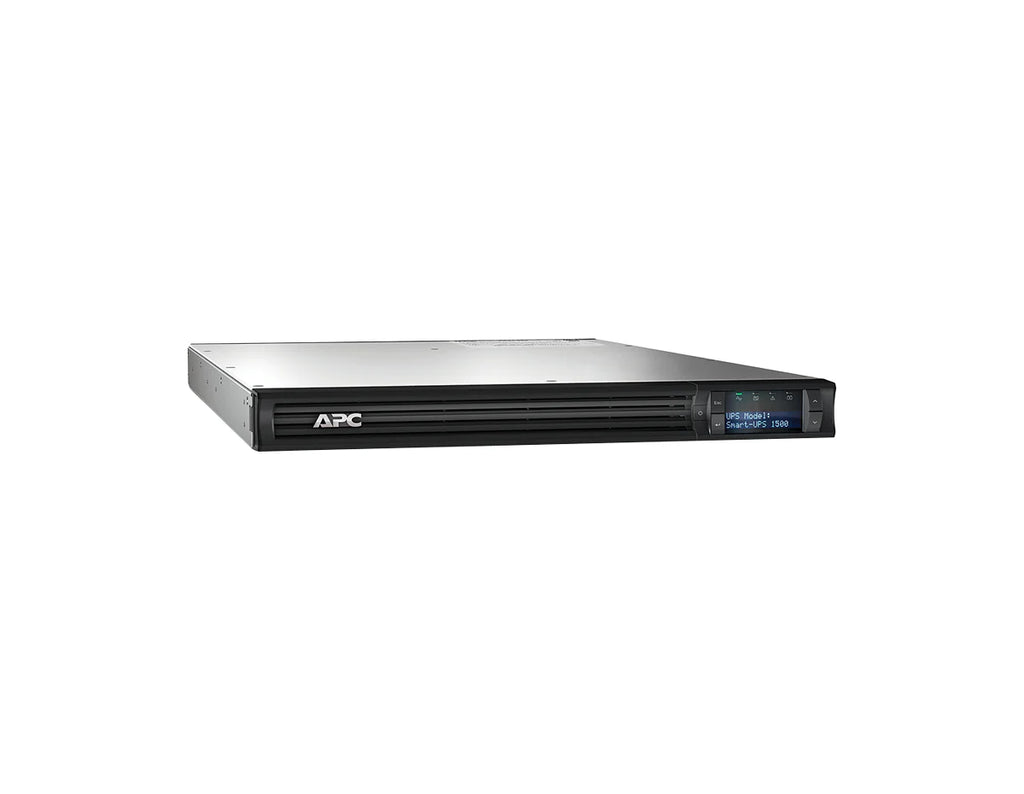

1500VA / 1000W, Line-Interactive UPS, 1U Rackmount, 4x NEMA 5-15R Outlets, SmartConnect Port, LCD Control Panel, AVR
[/shortdesc]
[properties]
| Brand |
APC |
| Model |
SMT1500RM1UC |
| Product Type |
Smart-UPS Rackmount |
| Form Factor |
Rackmount 1U |
| Color |
Black |
| Dimensions (H x W x D |
1.7 x 17.01 x 26.2 in (4.4 x 43.2 x 66.5 cm |
| Weight |
54.01 lb (24.5 kg |
| Mounting Type |
Rack-mounted |
[/properties]
[specifications]
| Input Voltage |
120 V |
| Input Frequency |
50/60 Hz ±3 Hz auto-sensing |
| Plug Type |
NEMA 5-15P |
| Output Voltage |
120 V |
| Power Capacity |
1440 VA / 1000 W |

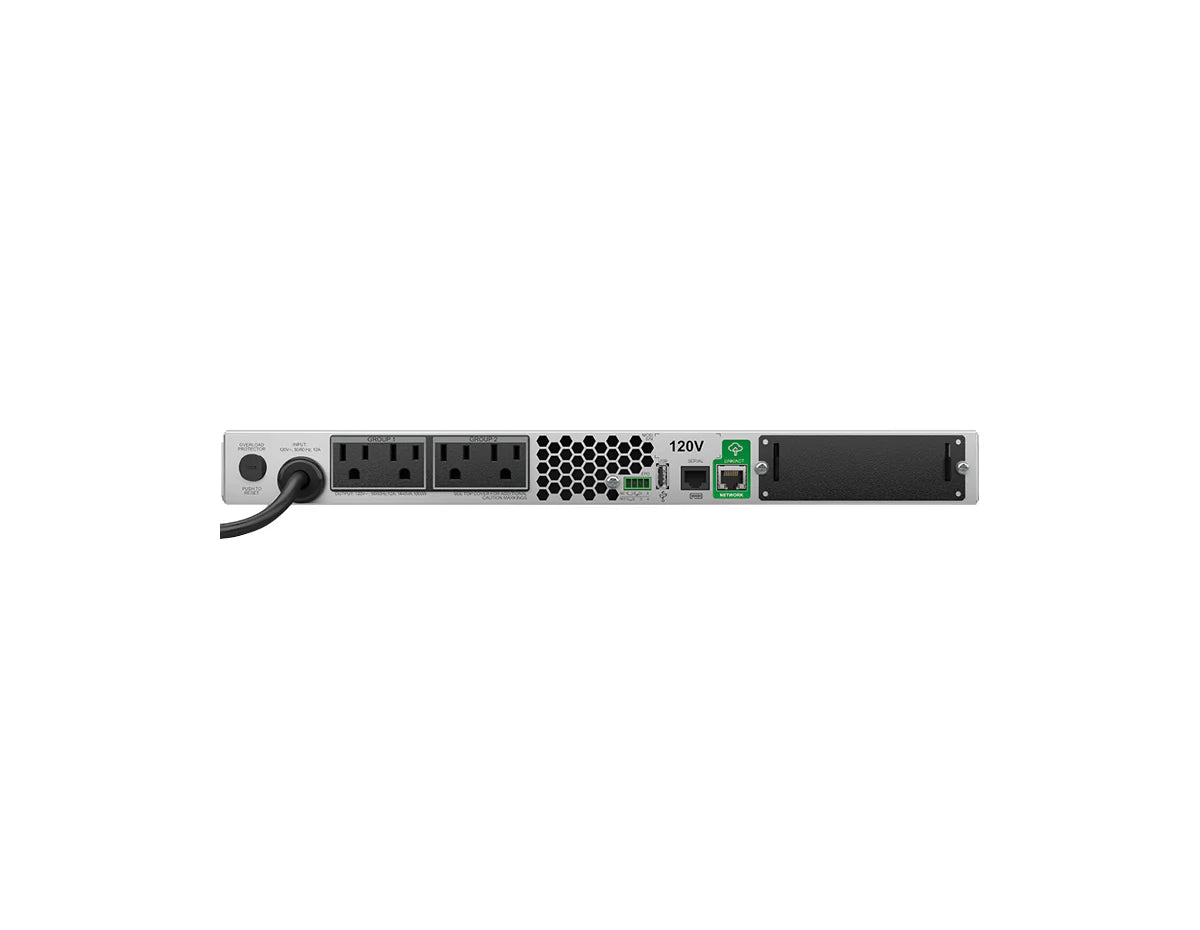

| Output Connections |
4 x NEMA 5-15R |
| Topology |
Line Interactive |
| Waveform |
Sine wave |
| Transfer Time |
4 ms typical, 8 ms maximum |
| Battery Type |
Lead-Acid |
| Recharge Time |
4 hours typical |
| Battery Life |
3–5 years |
| Replacement Battery |
APCRBC88 |
| Surge Protection |
645 J |
| Operating Temperature |
0…40°C |
| Operating Humidity |
0…95% non-condensing |
| Warranty |
3 years repair or replace (excluding battery and 2 years for battery |
[/specifications]
[accesories]
| Installation Guide |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| RS-232 Cable |
Included in the box |
| USB Cable |
Included in the box |
| Safety Guide |
Included in the box |
[/accesories]
Overview
The APC Smart-UPS SMT1500RM1UC delivers 1500VA / 1000W of high-performance backup power in a slim 1U rackmount design. Featuring pure sine wave output, Automatic Voltage Regulation (AVR, and SmartConnect cloud-enabled monitoring, it ensures enterprise-class protection for servers, switches, routers, and storage systems. Compact and efficient, this UPS integrates seamlessly into IT racks while providing reliable power conditioning and runtime during outages.
Key Features & Benefits
-
1500VA / 1000W Capacity: Provides dependable backup power for mission-critical IT and network hardware.
-
Pure Sine Wave Output: Ensures compatibility with sensitive electronic equipment and active PFC power supplies.
-
Automatic Voltage Regulation (AVR: Corrects voltage fluctuations without depleting the battery.
-
SmartConnect Port: Enables secure remote monitoring and management through APC cloud services.
-
LCD Control Panel: Offers clear status visibility, alarms, and easy configuration options.
-
1U Rackmount Form Factor: Space-saving design with included rails for efficient rack integration.
-
ENERGY STAR® Certified: Optimized efficiency reduces operating costs while minimizing heat output.
Technical Deep Dive
The SMT1500RM1UC employs a line-interactive topology with AVR, delivering stable operation across 93.5–143 V (adjustable to 85–155 V without engaging the battery. This reduces wear and extends battery life, while ensuring uninterrupted operation during fluctuations. The 4 ms transfer time further enhances reliability for critical IT workloads.
Its pure sine wave output delivers high-quality power, essential for advanced servers, network devices, and electronics with active PFC. The UPS also integrates a SmartConnect Ethernet port for cloud-based monitoring, allowing IT teams to proactively manage power conditions remotely. The intuitive LCD panel enhances local management with real-time metrics and configuration controls.
Built with lead-acid battery technology rated for 3–5 years of service, the SMT1500RM1UC features a 54 Ah internal battery pack with a typical 4-hour recharge time, ensuring rapid recovery after power events. Its 645 Joules surge energy rating and full-time multi-pole filtering provide added protection against transients and noise.
Ideal Applications
- Rack-mounted servers and storage arrays
- Networking equipment such as routers, firewalls, and switches
- Point-of-sale and retail IT systems
- Healthcare, education, and branch office IT requiring compact backup power
Frequently Asked Questions (FAQs
Q1: How is the SMT1500RM1UC installed?
A: It is a 1U rackmount UPS that includes mounting rails and support brackets for straightforward installation in standard IT racks.
Q2: What performance can I expect?
A: This UPS provides 1500VA / 1000W with sine wave output. Runtime depends on the load but typically covers short-to-medium outages. Actual runtime depends on battery age, environment, and connected load.
Q3: How can the UPS be managed?
A: Management is available via the LCD status console and the SmartConnect port, enabling both local and remote monitoring. Optional SmartSlot cards allow further network integration.
