[shortdesc]
1920VA / 1920W, Line-Interactive UPS, 2U Rackmount, 6x NEMA 5-15R + 2x NEMA 5-20R Outlets, AVR, LCD Console, Pre-Installed NMC
[/shortdesc]
[properties]
| Brand |
APC |
| Model |
SMT2200RM2UNC |
| Product Type |
Smart-UPS Rackmount with Network Card |
| Form Factor |
Rackmount 2U |
| Color |
Black |
| Dimensions (H x W x D |
3.39 x 17.01 x 26.89 in (8.6 x 43.2 x 68.3 cm |
| Weight |
93.28 lb (42.31 kg |
| Mounting Type |
Rack-mounted |
[/properties]
[specifications]
| Input Voltage |
120 V (75...154 V adjustable |
| Input Frequency |
50/60 Hz ±3 Hz auto-sensing |
| Plug Type |
NEMA 5-20P |
| Output Voltage |
120 V |
| Power Capacity |
1920 VA / 1920 W |
| Output Connections |
6 x NEMA 5-15R, 2 x NEMA 5-20R |
| Topology |
Line Interactive |
| Waveform |
Sine wave |
| Transfer Time |
4 ms typical, 8 ms maximum |
| Battery Type |
Lead-Acid |
| Recharge Time |
3 hours typical |
| Battery Life |
3–5 years |
| Replacement Battery |
RBC43 |
| Surge Protection |
530 J |
| Operating Temperature |
0…40°C |
| Operating Humidity |
0…95% |
| Warranty |
3 years repair or replace (excluding battery and 2 years for battery |
[/specifications]
[accesories]
| CD with Software |
Included in the box |
| Documentation CD |
Included in the box |
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| RS-232 Cable |
Included in the box |
| USB Cable |
Included in the box |
[/accesories]

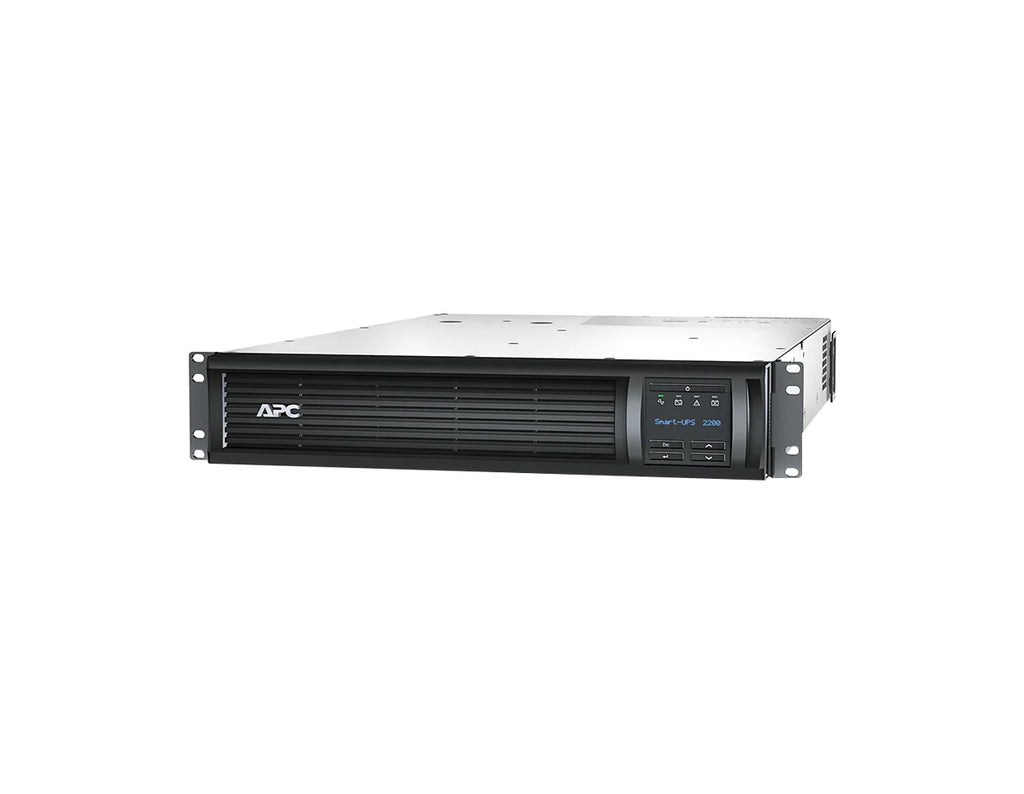

Overview
The APC Smart-UPS SMT2200RM2UNC delivers 1920VA / 1920W of dependable backup power in a 2U rackmount form factor. Featuring line-interactive topology, Automatic Voltage Regulation (AVR, and pure sine wave output, it ensures stable protection for servers, storage, and network devices. A multifunction LCD panel provides at-a-glance status, while a pre-installed Network Management Card (NMC enables advanced remote monitoring. Built for enterprise environments, this UPS combines efficiency, scalability, and intelligent control for superior business continuity.
Key Features & Benefits
-
1920VA / 1920W Capacity: Provides robust backup power for mission-critical servers and IT infrastructure.
-
Automatic Voltage Regulation (AVR: Instantly corrects fluctuations to maintain consistent output without draining the battery.
-
Pure Sine Wave Output: Ensures clean power delivery for sensitive IT equipment and active PFC power supplies.
-
Pre-Installed Network Management Card: Offers out-of-the-box remote monitoring and environmental integration.
-
2U Rackmount Design: Optimizes space efficiency with included rails and mounting hardware.
-
LCD Console: Intuitive interface with real-time UPS status and easy configuration.
Technical Deep Dive
The SMT2200RM2UNC uses a line-interactive design with AVR, automatically adjusting input voltages within the 75–154V range. This reduces battery cycling and ensures long-term uptime during common power fluctuations. Transfer times are maintained between 4–8ms, keeping critical workloads stable during disturbances.
Its pure sine wave output guarantees compatibility with sensitive IT hardware, including servers and active PFC power supplies. With a capacity of 1920VA / 1920W, this UPS delivers reliable performance across small-to-medium enterprise environments.
A key differentiator is the integrated Network Management Card 3 (NMC, providing immediate access to remote UPS visibility, performance metrics, and environmental data. Combined with the front-panel LCD interface, administrators have both local and remote tools for advanced monitoring and control, reducing downtime risk across distributed IT environments.
Ideal Applications
- Rack-mounted servers and storage arrays
- Network closets and branch office IT systems
- Healthcare and finance systems requiring continuous uptime
- Retail and education deployments needing reliable rackmount power protection
Frequently Asked Questions (FAQs
Q1: How is the SMT2200RM2UNC installed?
A: It is a 2U rackmount UPS that includes mounting rails, support brackets, and cables for seamless integration into standard racks.
Q2: What performance can I expect?
A: The UPS provides 1920VA / 1920W of pure sine wave power. Runtime varies by load, with about 15 minutes at half load and 5 minutes at full load as illustrated by the manufacturer’s runtime graphic. Actual runtime depends on load profile and battery condition.
Q3: How can the UPS be managed?
A: Management is available locally via the LCD console and remotely through the pre-installed Network Management Card, which supports advanced monitoring and environmental integration.
