[shortdesc]
3000VA / 2700W, Double-Conversion Online, 8x NEMA 5-20R + 1x L5-30R, LCD Display, SmartSlot Expansion, Rackmount 2U
[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SRT3000RMXLA |
| Product Type |
Smart-UPS On-Line, Double Conversion |
| Form Factor |
Rackmount 2U |
| Dimensions (H x W x D |
3.3" x 17.008" x 25" (85 x 432 x 635 mm |
| Weight |
69.005 lb (31.3 kg |
| Color |
Black |
| Number of Rack Units |
2U |
| Cable Length |
8 ft (2.4 m |
| Cooling |
— |
[/properties]
[specifications]
| Capacity |
3000 VA / 2700 W |
| Input Voltage |
120 V |
| Input Connection Type |
NEMA L5-30P |
| Input Frequency |
40–70 Hz auto-sensing |
| Output Voltage |
120 V |
| Output Connections |

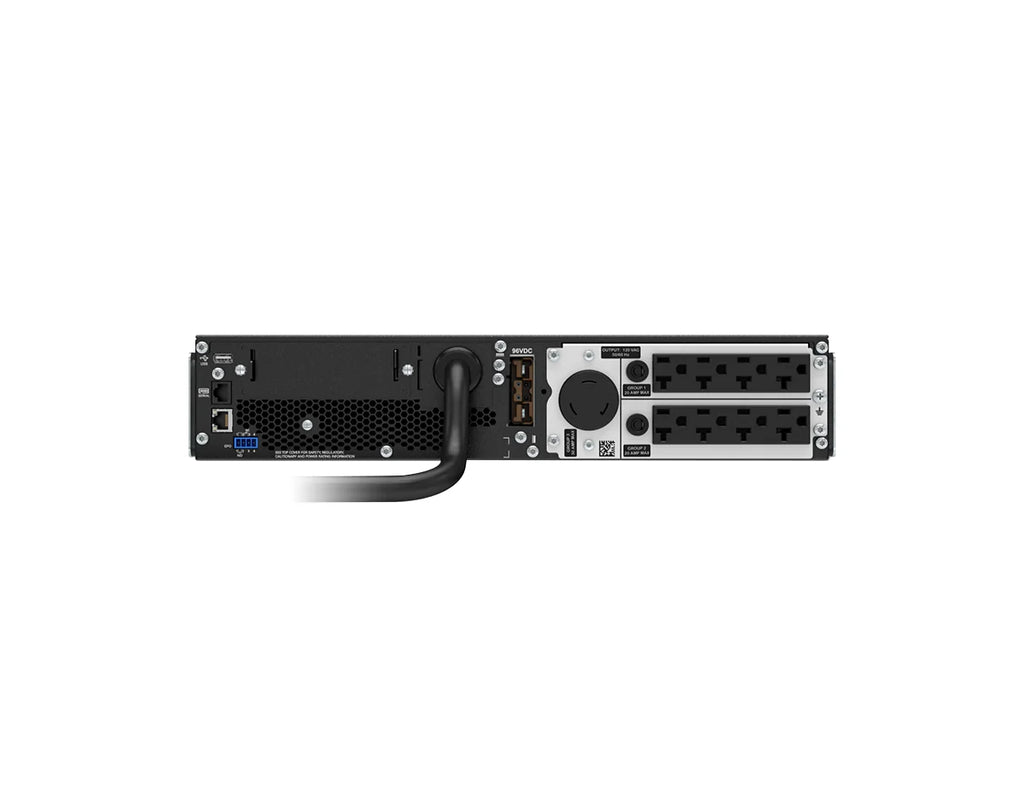

8 × NEMA 5-20R, 1 × NEMA L5-30R |
| Waveform Type |
Sine wave |
| Topology |
Double Conversion On-Line |
| Transfer Time |
0 ms (on-line |
| Bypass Type |
Internal Bypass (Automatic and Manual |
| Crest Factor |
3:1 |
| Harmonic Distortion |
<2% |
| Battery Type |
Lead-Acid • Voltage: 96 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 151 W rated |
| Extendable Runtime |
Yes |
| Surge Energy Rating |
340 J |
| Acoustic Noise |
55 dBA |
| Thermal Dissipation |
805 BTU/h |
| Operating Temperature |
0–40 °C (32–104 °F |
| Operating Humidity |
0–95% non-condensing |
| Altitude |
0–10,000 ft operating |
| Communications |
USB compatible, EPO, Audible/visible alarms, SmartSlot (1 free |
| Certifications |
ENERGY STAR V2.0 (USA |
[/specifications]
[accesories]
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| USB Cable |
Included in the box |
| Documentation |
CD with software, Documentation CD, Installation guide, Warranty card |
[/accesories]
Overview

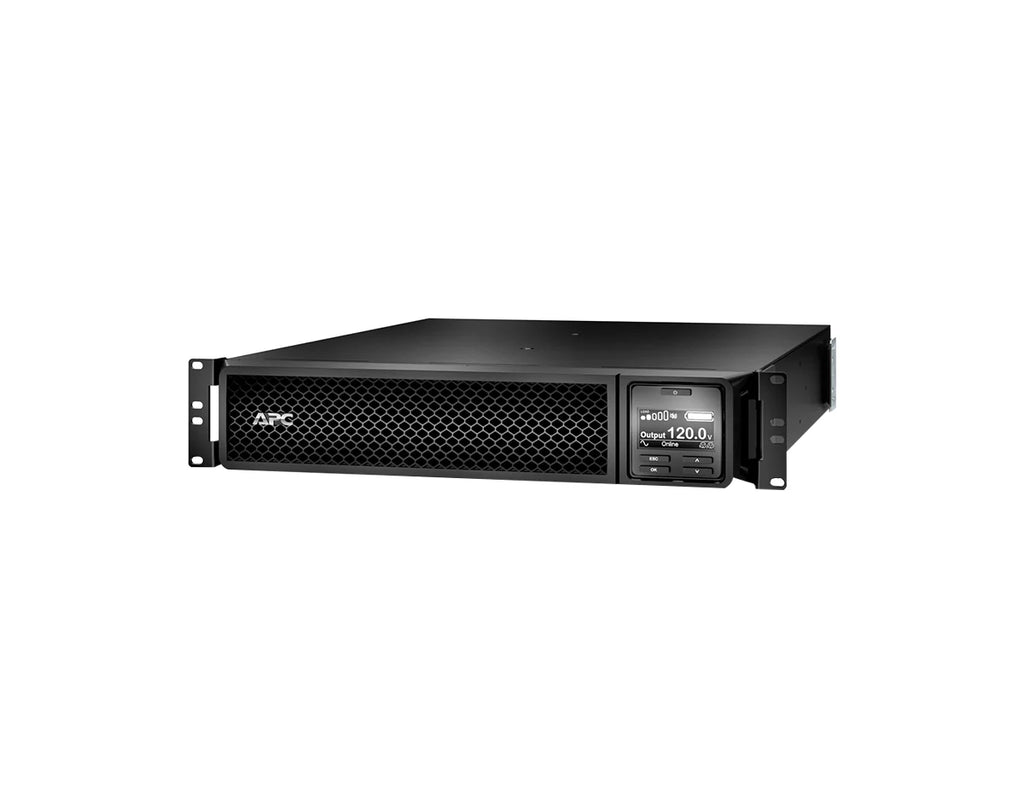

The APC Smart-UPS SRT3000RMXLA delivers 3000VA / 2700W of high-density online power protection in a 2U rackmount form factor. Engineered with double-conversion technology, it provides pure sine wave output, ensuring clean and reliable power for critical IT and network devices. With scalable runtime options and SmartSlot expandability, it is designed to keep business operations running without interruption.
Key Features & Benefits
-
Double-Conversion Online: Continuous power conditioning with pure sine wave output.
-
Scalable Runtime: Supports external battery packs for extended backup capability.
-
SmartSlot Expandability: Add network management cards for advanced remote monitoring.
-
LCD Control Panel: Real-time status with intuitive navigation and multi-language support.
-
Multiple Outlets: 8x NEMA 5-20R and 1x L5-30R provide flexible device connectivity.
Technical Deep Dive
The SRT3000RMXLA utilizes double-conversion online technology, constantly converting incoming AC power to DC and back to AC. This isolates connected devices from power disturbances such as surges, sags, and harmonics, delivering clean sine wave output at all times.
Its scalable design allows connection of up to 10 external battery packs, offering extended runtime for mission-critical applications. With a typical recharge time of only 3 hours, downtime is minimized even after extended outages. Intelligent battery management enhances reliability by providing temperature-compensated charging and proactive replacement alerts.
Additionally, the SmartSlot interface enables integration with optional network management cards, empowering administrators with advanced monitoring, control, and automation across enterprise environments.
Ideal Applications
- Enterprise servers and storage systems
- Network hardware and communications infrastructure
- Healthcare and financial IT systems
- High-availability industrial control environments
Frequently Asked Questions (FAQs
Q1: How is the SRT3000RMXLA installed?
A: It is a 2U rackmount UPS supplied with brackets and rails for seamless installation in standard racks.
Q2: What performance can I expect?
A: The UPS provides 3000VA / 2700W with sine wave output. Runtime depends on load and optional external battery packs; consult runtime charts for precise data.
Q3: How can it be managed?
A: Standard LCD interface and USB connectivity are included. Adding a SmartSlot network card enables full remote monitoring and control.
