[shortdesc]
1440VA / 1350W Capacity, Lithium-Ion Battery, 3U Short Depth Rackmount, 6 NEMA 5-15R Outlets, SmartConnect & Pre-Installed NMC
[/shortdesc]
[properties]
| Brand |
APC |
| Model |
SMTL1500RM3UCNC |
| Product Type |
Smart-UPS Rackmount with Network Card |
| Form Factor |
Rackmount 3U |
| Color |
Black with silver front bezel |
| Dimensions (H x W x D |
5.16 x 17.24 x 18.90 in (13.1 x 43.8 x 48.0 cm |
| Weight |
46.30 lb (21.0 kg |
| Mounting Type |
Rack-mounted |
[/properties]
[specifications]
| Input Voltage |
120 V |
| Input Frequency |
50/60 Hz ±3 Hz auto-sensing |
| Plug Type |
NEMA 5-15P |
| Output Voltage |
120 V |
| Power Capacity |
1440 VA / 1350 W |

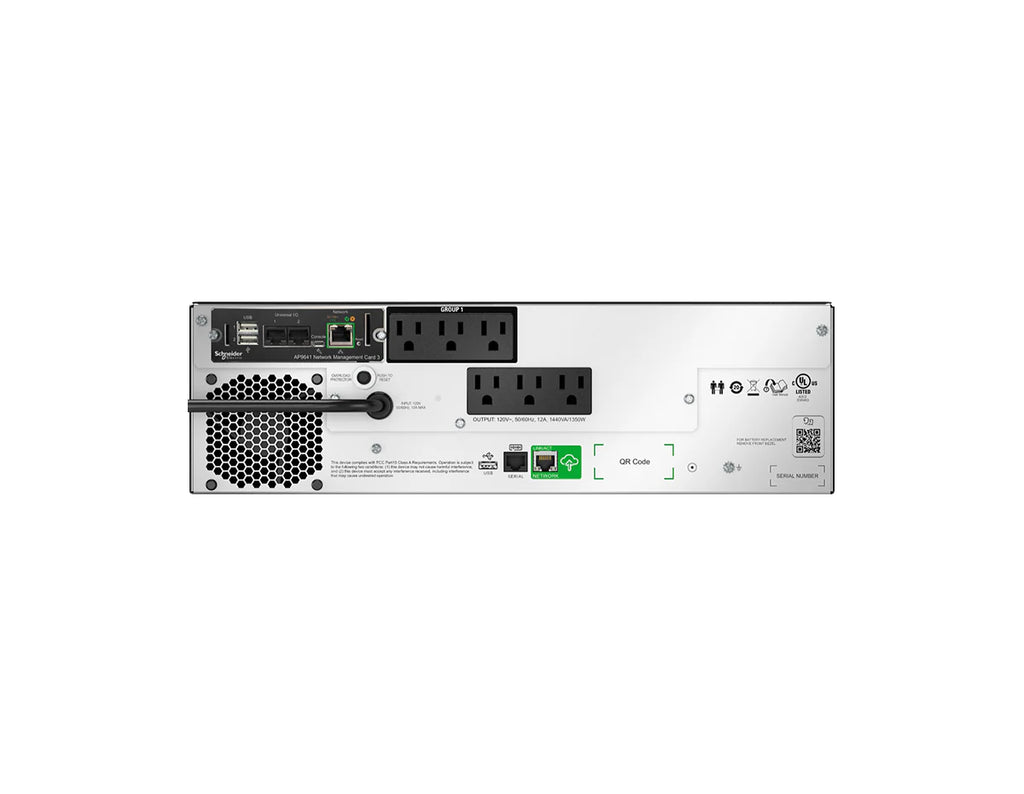

| Output Connections |
6 x NEMA 5-15R |
| Topology |
Line Interactive |
| Waveform |
Sine wave |
| Transfer Time |
6 ms typical, 10 ms maximum |
| Battery Type |
Lithium-Ion |
| Recharge Time |
3 hours typical |
| Battery Design Life |
8–10 years |
| Surge Protection |
680 J |
| Operating Temperature |
0…40°C |
| Operating Humidity |
0…95% non-condensing |
| Warranty |
5 years repair or replace (excluding battery and 5 years for battery |
[/specifications]
[accesories]
| Rack Mounting Brackets |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| Screws and Washers |
Included in the box |
| USB Cable |
Included in the box |
| Ethernet Patch Cable |
Included in the box |
[/accesories]
Overview

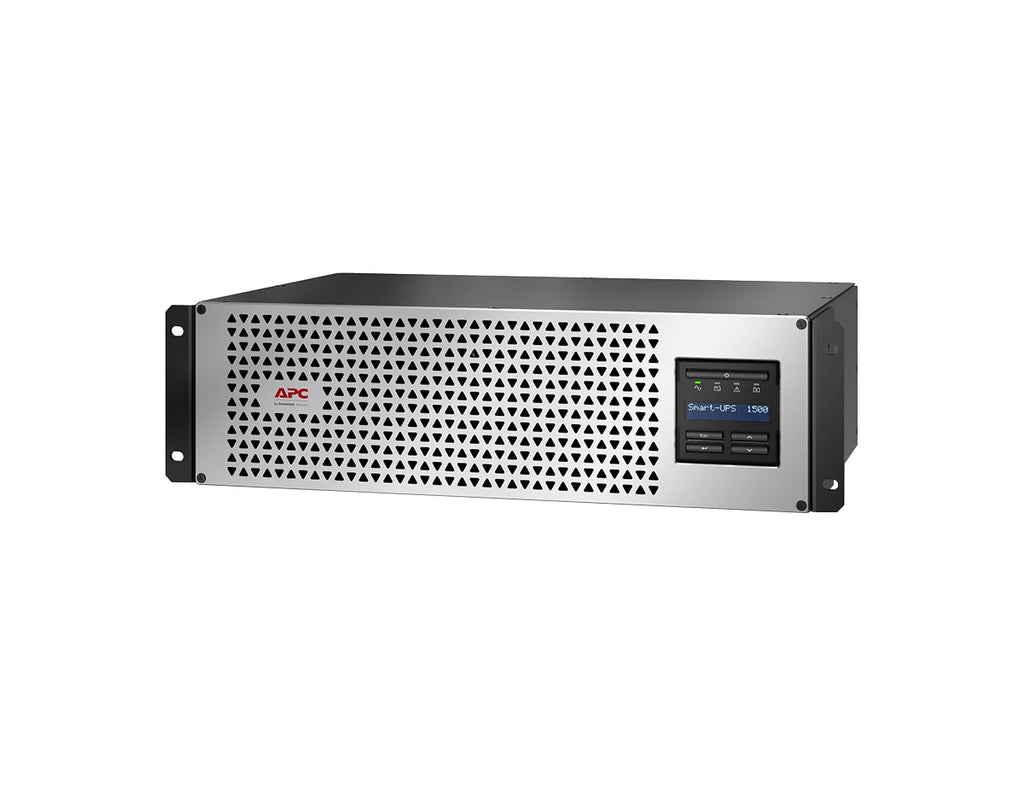

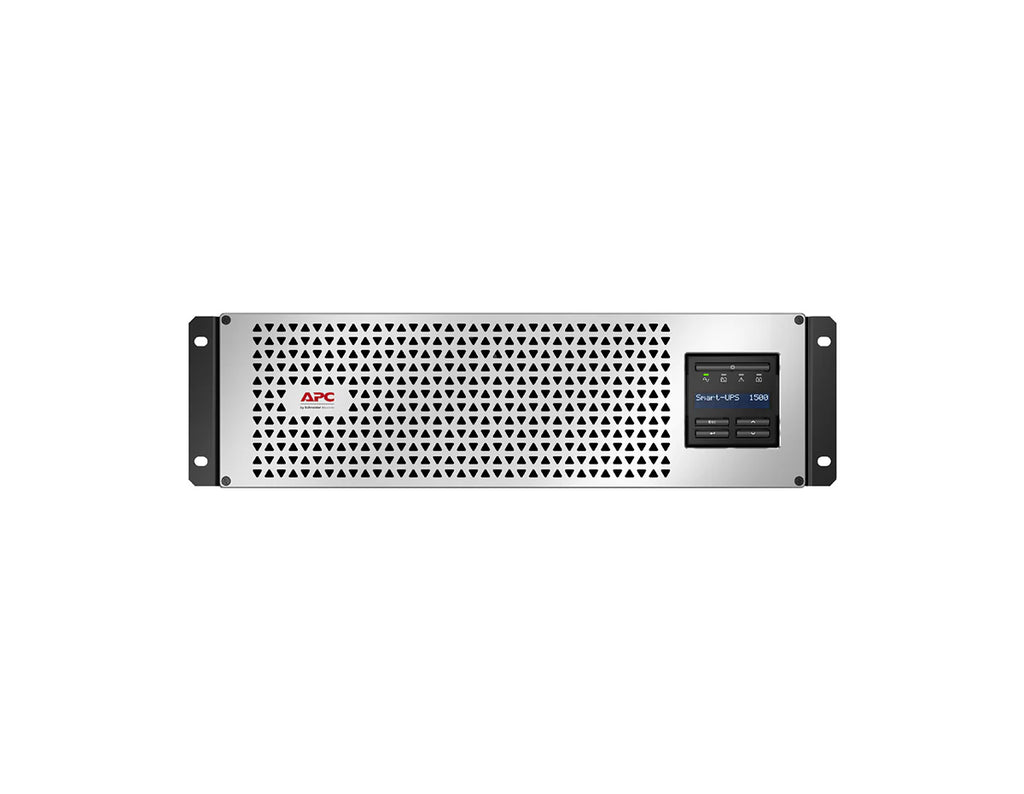

The APC Smart-UPS SMTL1500RM3UCNC delivers 1440VA / 1350W of reliable backup power in a compact 3U short-depth rackmount design. Featuring advanced lithium-ion battery technology, pure sine wave output, automatic voltage regulation (AVR, and integrated SmartConnect plus a pre-installed Network Management Card 3, this UPS ensures dependable protection and streamlined management for IT racks, servers, and network hardware. With an 8–10 year battery design life and rapid recharge, it significantly reduces maintenance and total cost of ownership.
Key Features & Benefits
-
Lithium-Ion Battery: 8–10 year design life with fast recharge, reducing replacement cycles and costs.
-
Rackmount 3U Short Depth: Optimized for edge IT and shallow racks with space-efficient installation.
-
Pure Sine Wave Output: Maintains consistent, high-quality power for sensitive IT and network devices.
-
Automatic Voltage Regulation (AVR: Corrects voltage fluctuations without switching to battery.
-
SmartConnect & NMC: Cloud-enabled monitoring and advanced remote management with environmental monitoring.
-
6 NEMA 5-15R Outlets: Provides connectivity for multiple servers and network devices.
-
ENERGY STAR® Certified: High efficiency helps reduce operational energy costs.
Technical Deep Dive
The SMTL1500RM3UCNC leverages line-interactive topology with AVR, which stabilizes voltage dips and surges before battery engagement. This minimizes unnecessary battery use, extending overall battery life while ensuring uptime during power fluctuations.
Its lithium-ion battery system represents a leap forward compared to sealed lead-acid designs. With up to 10 years of design life, lighter weight, and faster recharge capability, it reduces service intervals and ensures readiness even after prolonged outages. This lowers the long-term total cost of ownership for mission-critical IT setups.
The pre-installed Network Management Card 3 with environmental monitoring enables secure, remote access to UPS status, event logs, and proactive alerts. Combined with SmartConnect Ethernet, it provides cloud-enabled monitoring, proactive maintenance recommendations, and streamlined integration for distributed IT environments.
Ideal Applications
- Edge computing and branch office IT racks
- Small to medium server deployments
- Networking equipment and storage arrays
- Healthcare, finance, and retail requiring long-life UPS solutions
Frequently Asked Questions (FAQs
Q1: How is the SMTL1500RM3UCNC installed?
A: It is a 3U short-depth rackmount UPS, shipped with brackets, rails, and necessary hardware for easy integration into standard or shallow-depth racks.
Q2: What performance can I expect?
A: This UPS delivers 1440VA / 1350W with sine wave output. Runtime is approximately 12 minutes at half load and 5 minutes at full load, based on new batteries. Actual performance depends on load, environment, and battery age.
Q3: How can the UPS be managed?
A: It supports local monitoring via a front-panel LCD, SmartConnect Ethernet for cloud-based access, and advanced remote control through the pre-installed Network Management Card 3 with environmental monitoring.
