[shortdesc]1500VA / 1350W Capacity, Pure Sinewave Output, 2U Rack/Tower Convertible, 8x NEMA 5-15R Outlets, SmartConnect & Pre-Installed NMC[/shortdesc]
[properties]
| Brand |
APC |
| Model |
SMX1500RM2UCNC |
| Product Type |
Smart-UPS X Rack/Tower Convertible |
| Form Factor |
Rackmount 2U / Tower Convertible |
| Color |
Black |
| Dimensions (H x W x D |
3.50 x 17.01 x 19.29 in (8.9 x 43.2 x 49 cm |
| Weight |
54.72 lb (24.82 kg |
| Mounting Type |
Rack-mounted / Tower Convertible |
[/properties]
[specifications]
| Input Voltage |
120 V |
| Input Frequency |
50/60 Hz ±3 Hz auto-sensing |
| Plug Type |
NEMA 5-15P |
| Output Voltage |
120 V |
| Power Capacity |
1440 VA / 1350 W |
| Output Connections |
8 x NEMA 5-15R |
| Topology |
Line Interactive |
| Waveform |
Sine wave |
| Full Load Runtime |
5 minutes |
| Half Load Runtime |
15 minutes |
| Transfer Time |
— |
| Battery Type |
Lead-Acid |
| Recharge Time |
3 hours typical |
| Replacement Battery |
APCRBC115 |
| Surge Protection |
600 J |
| Operating Temperature |
0…40°C |
| Operating Humidity |
0…95% |
| Warranty |
3 years repair or replace (hardware; 2 years for battery (+1 year with SmartConnect registration |
[/specifications]
[accesories]
| Installation Guide |
Included in the box |
| Rack Mounting Hardware |
Included in the box |
| Rack Mounting Support Rails |
Included in the box |
| Removable Support Feet |
Included in the box |
| RS-232 Cable |
Included in the box |
| USB Cable |
Included in the box |
| Cat 5 Ethernet Cable |
Included in the box |
[/accesories]
Overview

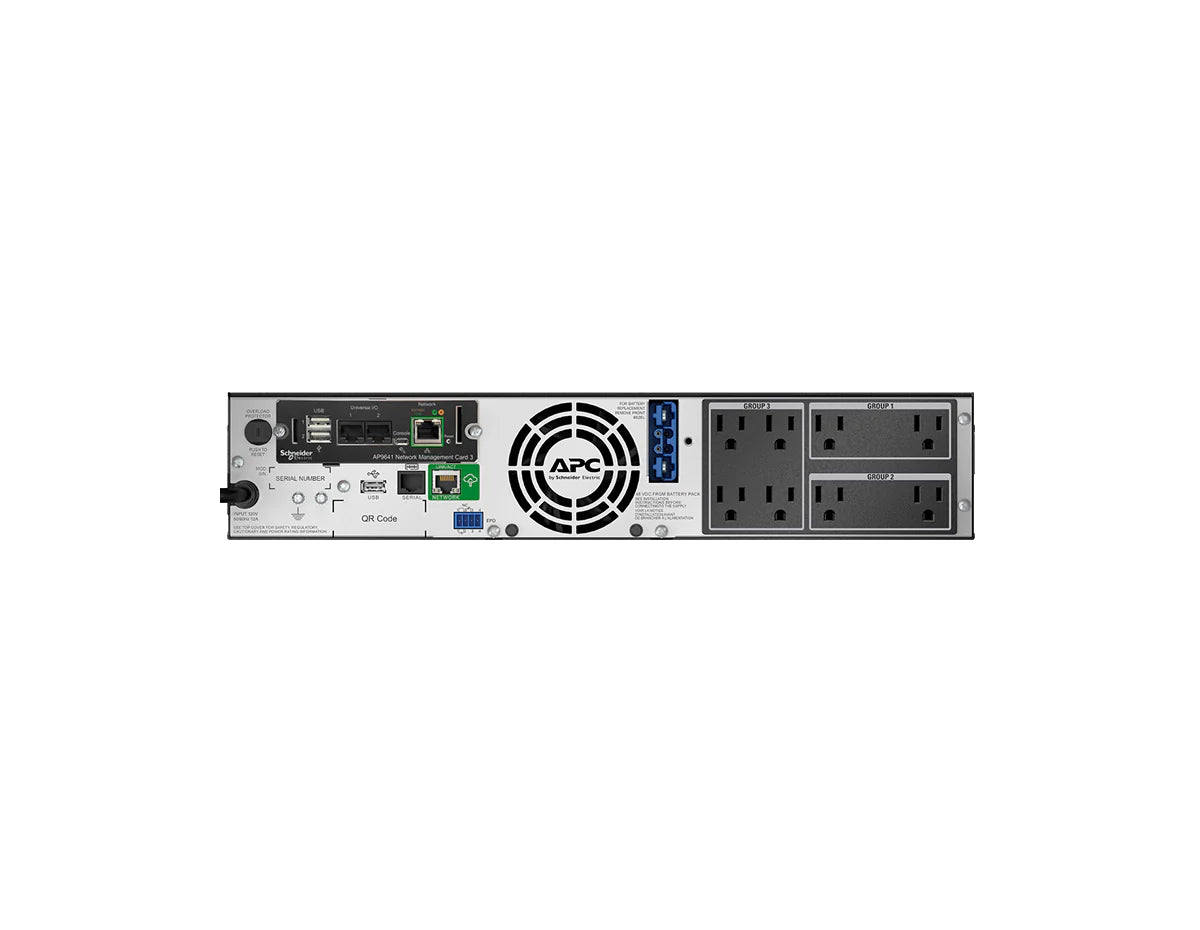

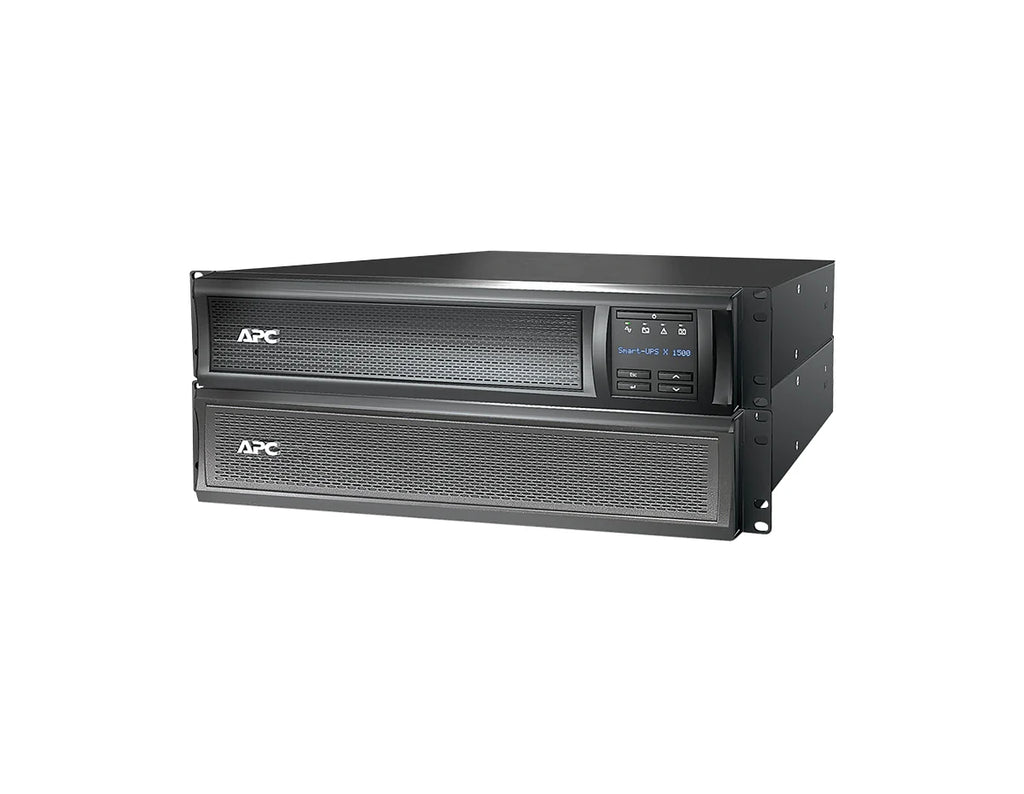

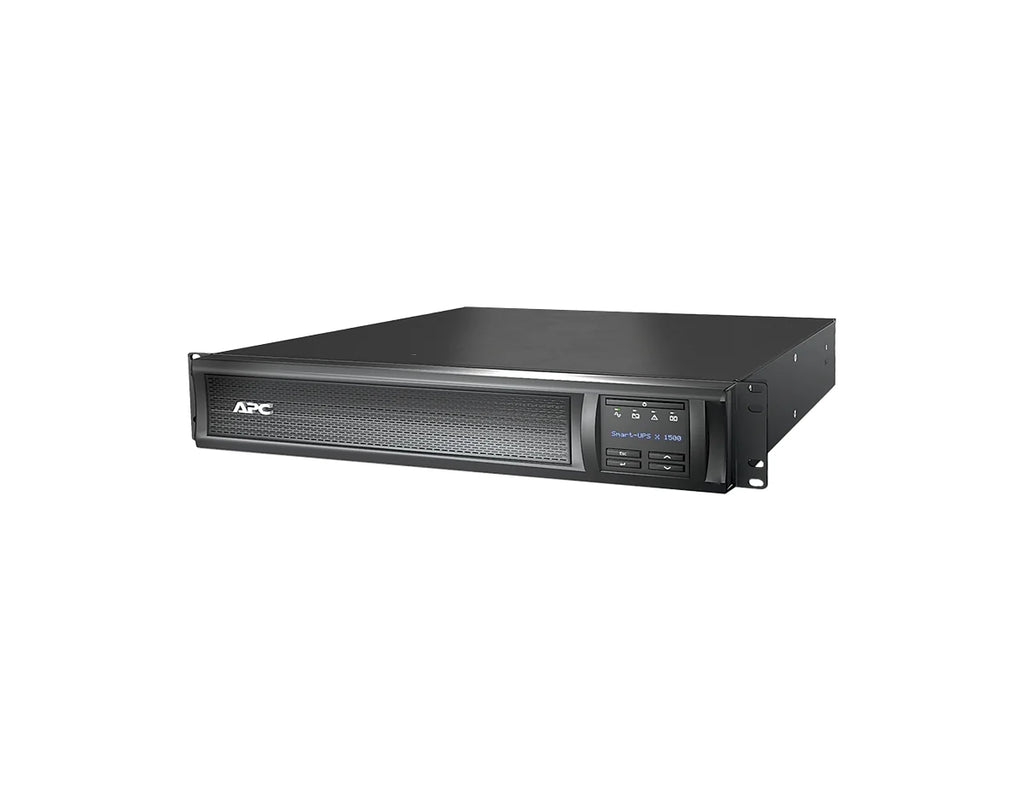

The APC Smart-UPS X SMX1500RM2UCNC is a high-performance 2U rack/tower convertible UPS delivering 1500VA / 1350W of reliable protection. Built for servers, storage, and networking devices, it offers pure sine wave output, line-interactive topology, and Automatic Voltage Regulation (AVR. With SmartConnect cloud monitoring, a pre-installed Network Management Card 3, and extended runtime scalability, this UPS provides advanced visibility, superior flexibility, and dependable power management for critical IT environments.
Key Features & Benefits
-
1500VA / 1350W Output: Delivers dependable backup power for servers and network hardware.
-
Pure Sine Wave Output: Ensures stable, clean power for sensitive IT equipment.
-
Automatic Voltage Regulation (AVR: Corrects power fluctuations without using the battery.
-

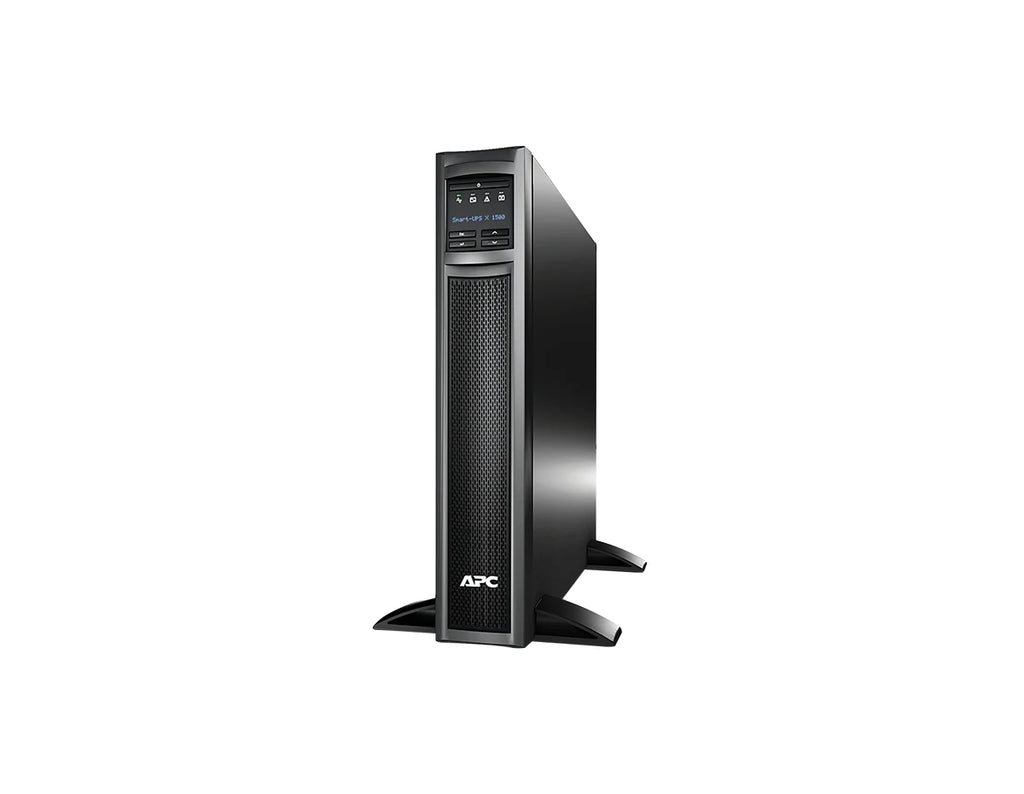

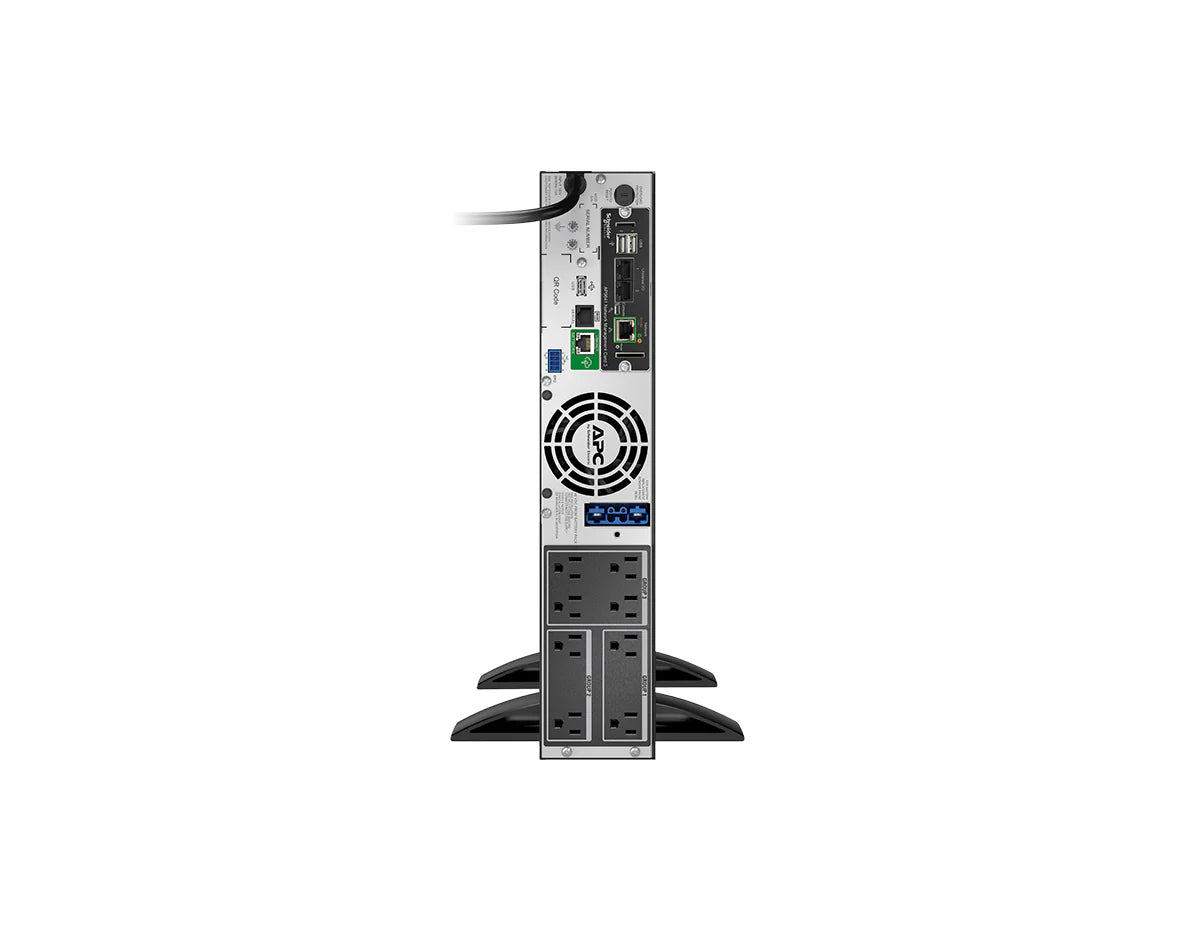

Rack/Tower Convertible Design: Provides flexible deployment in 2U rackmounts or as a tower unit.
-
SmartConnect Port: Enables cloud-enabled monitoring and proactive alerts.
-
Pre-Installed NMC: Advanced remote monitoring and management with environmental support.
-
Extended Runtime Capability: Supports external battery packs for longer backup duration.
-
ENERGY STAR® Certified: High efficiency reduces energy costs and environmental impact.
Technical Deep Dive
The SMX1500RM2UCNC features a line-interactive topology with AVR, providing real-time voltage regulation that stabilizes power and reduces battery usage. This design ensures extended battery availability for true outages while maintaining consistent output for connected devices.
Its pure sine wave output is critical for modern IT hardware, particularly systems with active PFC power supplies. By ensuring clean, reliable power, the UPS prevents disruptions, equipment damage, and data loss during irregular power conditions.
A key differentiator is its scalability. The UPS supports up to five external battery packs, extending runtime from 14 minutes at half load to over 4 hours with maximum external batteries, making it suitable for high-availability applications. With SmartConnect cloud monitoring and a pre-installed Network Management Card 3, administrators gain comprehensive visibility and remote control, simplifying power management across distributed infrastructures.
Ideal Applications
- Rack-mounted servers and enterprise storage
- Network closets and edge IT deployments
- Healthcare, education, and retail IT requiring extended uptime
- Virtualized and hybrid IT environments
- Branch offices needing remote UPS monitoring and management
Frequently Asked Questions (FAQs
Q1: How is the SMX1500RM2UCNC installed?
A: It is a 2U rack/tower convertible UPS and includes support rails and removable feet for both rackmount and standalone deployment.
Q2: What performance can I expect?
A: The SMX1500RM2UCNC provides 1500VA / 1350W with pure sine wave output. Runtime is about 15 minutes at half load and 5 minutes at full load, expandable with external battery packs. Actual runtime depends on load and environmental conditions.
Q3: How can the UPS be managed?
A: It offers management through its LCD console, USB/serial ports, SmartConnect cloud monitoring, and the pre-installed Network Management Card 3 for advanced remote access and environmental monitoring.
