[shortdesc] 4K HDMI at 30 fps, up to 16 streams in multiview, PoE or 10–28 V DC, audio out via 3.5 mm or HDMI, microSD slot, 2x USB-A [/shortdesc]
[properties]
| Model |
AXIS D1110 |
| Product Type |
4K Video Decoder |
| Max Output Resolution |
3840 × 2160 @ 25/30 fps (UHD; 1920 × 1080 @ 50/60 fps |
| Video Output |
HDMI Type A (CEC supported; 16:9 formats |
| Multiview / Sequencing |
Up to 16 streams in multiview; seamless sequencing |
| Audio Out |
3.5 mm line out (stereo; HDMI audio |
| Edge Storage |
microSD/microSDHC/microSDXC (UHS-I card slot |
| Network |
RJ45 10/100/1000BASE-T (PoE |
| Power |
PoE IEEE 802.3af/at (Type 2, Class 4; 10–28 V DC, max 17 W |
| Casing / Rating |
Aluminum; IP30 |
| Operating Conditions |
0 to 40 °C (32 to 104 °F; 10–85% RH, non-condensing |
| Storage Conditions |
−20 to 65 °C (−4 to 149 °F; 5–95% RH, non-condensing |
| Dimensions |
115 × 115 × 35 mm |
| Weight |
500 g (1.10 lb |
| Certifications / Markings |
UL/cUL, UKCA, CE, KC, VCCI, RCM |
[/properties]
[specifications]
| System on Chip |
NXP i.MX8 QuadPlus |
| Memory |
2 GB RAM; 1 GB Flash |
| Video Codecs |
H.264/AVC (Baseline/Main/High; H.265/HEVC Main |
| Frame Rate |
Up to 60 fps (depending on resolution |
| Video Streaming |
Up to 16 streams (8 via VPU + 8 via CPU |
| Video Output Modes |
UHD 3840×2160 @25/30 fps; 1080p 1920×1080 @50/60 or @25/30 fps; 720p 1280×720 @50/60 fps; SD 720×576 @50 fps; 720×480 @60 fps |
| Audio |
Line output (3.5 mm, HDMI audio (stereo |
| Interfaces |
HDMI Type A; RJ45 Ethernet; 2 × USB Type-A (HID, Mass Storage; microSD slot; DC input (terminal block |
| Storage |
microSD/microSDHC/microSDXC (UHS-I card support |
| Network Protocols |
IPv4/IPv6, HTTP/HTTPS, TLS, RTSP/RTP/RTCP, DHCP, DNS, NTP/NTS, SNMP v1/v2c/v3, IGMP, UPnP, mDNS/Bonjour, MQTT, SSH, LLDP, CDP, IEEE 802.1X, MACsec, more |
| Cybersecurity |
Axis Edge Vault (secure boot, secure keystore, device ID; password protection; signed OS; host-based firewall; IEEE 802.1X; TLS 1.2/1.3 |
| Compliance (EMC/Safety |
CISPR 32/35 Class A, EN 61000-3-2/-3, FCC Part 15 Class A; IEC/EN/UL 62368-1 |
| Mounting |
AXIS T91A03 DIN Rail Clip A; mounting bracket; VESA-compatible hole patterns |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified/Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
[/specifications]
[accesories]
| Included |
Video decoder; Installation guide; Terminal block connector |
| Optional – Accessories |
AXIS TU9001 Control Board; AXIS Strain Relief TD3901; AXIS T91A03 DIN Rail Clip A; AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards |
[/accesories]

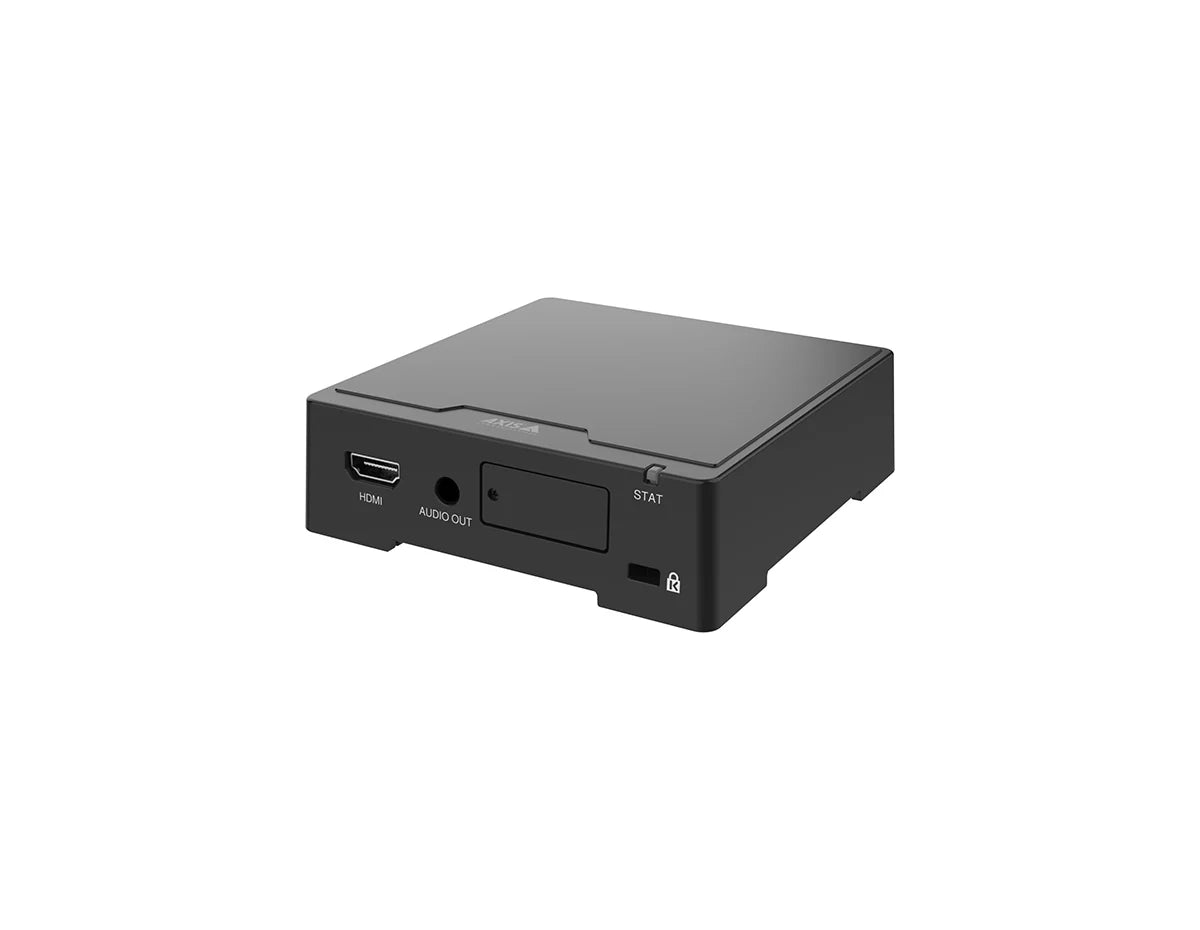

PC-Free 4K Monitoring and Signage: Fast, Simple, Reliable
Axis D1110 decodes IP video directly to any HDMI display, eliminating the need for a PC while delivering crisp 4K visuals. With seamless sequencing and multiview, it shows live feeds or scheduled content and digital signage with or without audio. Dual power options (PoE or DC and an intuitive Axis interface speed installation and daily operation.
Key Benefits & Features
-
4K HDMI output: Display UHD 3840×2160 at 25/30 fps or 1080p up to 60 fps for sharp situational awareness.
-
Multiview up to 16 streams: Monitor multiple cameras simultaneously or run sequence view on a single screen.
-

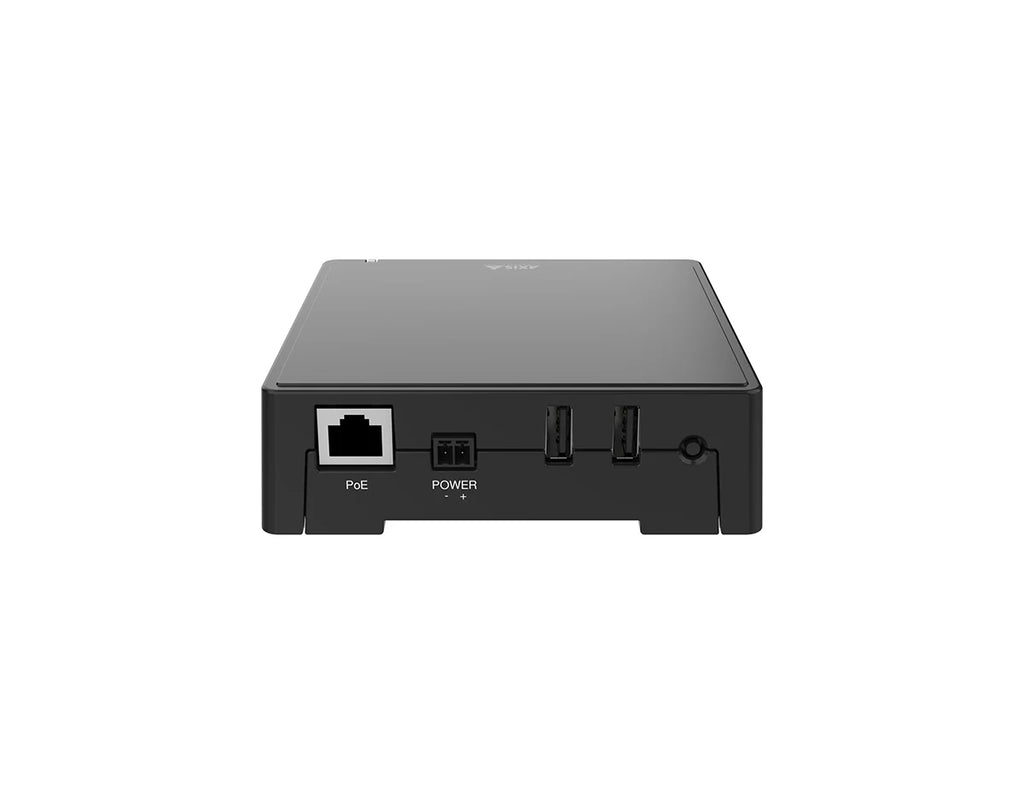

Flexible power & I/O: PoE Class 4 or 10–28 V DC, plus HDMI, 3.5 mm audio out, 2x USB-A, GbE RJ45, and microSD slot.
-
Audio-enabled signage: Play announcements or media with line-out or embedded HDMI audio.
-
Hardened security: Axis Edge Vault with secure boot, device ID, and encrypted keystore for trusted deployment.
Ideal Use Cases
- Public view monitors at entrances and lobbies
- Control rooms consolidating multiple camera feeds
- Retail and campus digital signage with live video
- Reception and security desks needing PC-free displays
- Quick rollouts where PoE power simplifies cabling
Technical Specifications
-
Codecs: H.264/AVC, H.265/HEVC
-
Video Output Modes: 3840×2160 @ 25/30 fps; 1920×1080 @ 50/60 fps; 1280×720 @ 50/60 fps; 720×576 @ 50 fps (SD; 720×480 @ 60 fps (SD
-
Streams: Up to 16 (sequence & multiview
-
Interfaces: 1x HDMI Type A, 1x 3.5 mm line-out, 2x USB-A, 1x RJ45 10/100/1000
-
Storage: microSD/microSDHC/microSDXC (UHS-I
-
Power: PoE IEEE 802.3af/at Class 4 or 10–28 V DC, max 17 W
-
Operating Range: 0–40 °C (32–104 °F, 10–85% RH
-
Security: Axis Edge Vault, secure boot, IEEE 802.1X
-
SoC & Memory: i.MX8 QuadPlus, 2 GB RAM, 1 GB Flash
-
Form Factor: IP30 aluminum; 115 × 115 × 35 mm; 500 g
Upgrade Displays to Secure 4K Monitoring Today
Standardize on a compact, secure, and PC-free decoder that’s built for always-on monitoring and signage. Order today.
