[shortdesc]
- Zone 1-certified panoramic dome camera, ATEX, IECEx, INMETRO Zone 1/21 certified, Seamless 180 degree panoramic overviews, 8 MP, 180 degree multisensor camera, Cost-efficient installation with PoE, Forensic WDR and Lightfinder
[/shortdesc]
[properties]
| Properties |
XF P3807 |
| Description |
AXIS ExCam XF P3807 delivers 180° panoramic overviews with an 8-megapixel multisensor camera that captures quality forensic images at up to 30 fps. It’s certified for ATEX, IECEx, EAC Ex, PESO, and INMETRO Zone 1/21 for use in explosion-prone applications. |
| Product Family |
ExCam XF Series |
| Product Type |
Explosion-protected Camera |
| Image sensor |
4 x 1/2.9” progressive scan RGB CMOS |
| Lightfinder |
Lightfinder |
| Wide dynamic range |
Forensic WDR |
| PoE Class |
3 |
| Connectors |
Network: M25x1.5 cable entry for 10/100 PoE via flipConnect |
| Signed firmware |
Signed OS |
| Secure boot |
– |
| TPM |
– |
| Remote focus |
– |
| Remote zoom |
– |
| Local storage (memory card slot |
Yes |
| Outdoor Ready |
Yes |
| IP rating |
IP66, IP67,IP68 |
| Dimensions |
Ø 216 mm (8.5 in x 235.9 mm (9.3 in |
| Weight |
16 kg (35.3 lb |
| Operating Temperature |
-50 °C to 60 °C (-58 °F to 140 °F |
| Event actions |
Day-night mode Illumination: use lights, use lights while the rule is active MQTT: publish Notifications: HTTP, HTTPS, TCP and email Overlay text PTZ: PTZ preset, start/stop guard tour Recordings: SD card and network share SNMP trap messages: send, send while the rule is active Status LED: flash, flash while the rule is active Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
| Applications |
AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm, shock detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
[/properties][specifications]
| Specifications |
XF P3807 |
| System on chip (SoC Model |
ARTPEC-6 |
| Memory |
1 GB RAM, 512 MB Flash |
| Min illumination/ light sensitivity (Color |
0.17 lux |
| Min illumination/ light sensitivity (B/W |
0.05 lux |
| Max video resolution |
4320x1920 |
| Max frames per second |
Up to 25/30 fps (8.3 MP without WDR, up to 12.5/15 fps with WDR |
| Electronic image stabilization |
- |
| Focal length |
3.2 mm |
| Pan/Tilt/Zoom |
Pan ±180°
Tilt 0°, 35°, 45°, 55°
Roll ±5°
Default tilt angle: 45°
Non optical zoom |
| Horizontal field of view |
180 ° |
| Vertical field of view |
90 ° |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
- |
| Motion JPEG |
Yes |
| Cybersecurity |
Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption, Secure boot, IEEE 802.1X (EAP-TLS, IEEE 802.1AR, HTTPS/HSTSa , TLS v1.2/v1.3 , Network Time Security (NTS, X.509 Certificate PKI, IP address filtering |
| Certifications |
Model key: T08-VA4.1K.PS1-L.H-005.X-X ATEX Ex II 2G Ex db IIC T6 Gb Ex II 2D Ex tb IIIC T80°C Db Certificate number: TÜV 18 ATEX 8218X IECEx Ex db IIC T6 Gb Ex tb IIIC T80°C Db Certificate number: IECEx TUR 18.0023X INMETRO Ex db IIC T6 Ex tb IIIC T85C Certificate number: TÜV 23.0363X EAC Ex Ex db IIC T6 Ex tb IIIC T85C Certificate number: TC RU C-DE.HA65.B.01652/22 PESO Ex db IIC T6 Certificate number: A/P/HQ/KA/104/5735 UKCA Ex db IIC T6 Ex tb IIIC T85C Certificate number: TÜV 22 UKEx 7137 X |
[/specifications][accesories]
| Included accessories |
Camera, installation guide, Windows decoder 1-user license, AXIS Surveillance microSDXC Card 128 GB, owner authentication key |
| Optional accessories |
| Wall Mount |
| Pole Mount |
| Cable gland |
| Cable |
[/accesories]

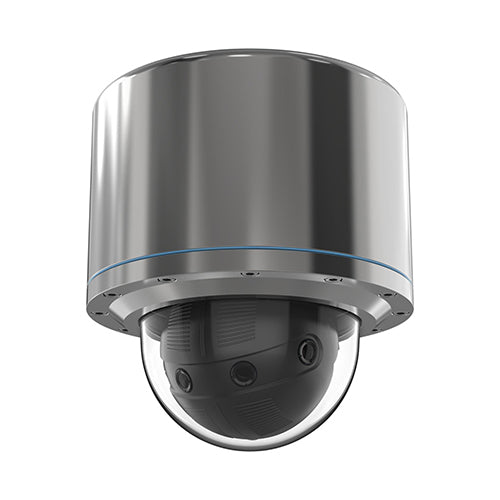

AXIS ExCam XF P3807 Explosion-Protected Panoramic Camera (02822-001
The EXCAM XF P3807 offers a 180° panoramic view, delivering high-quality images without any areas of limited visibility. This 8-megapixel multisensor camera is capable of capturing high-resolution forensic photos at a maximum rate of 30 frames per second. It is designed to be explosion-proof and holds certifications for use in hazardous environments, including ATEX, IECEx, and INMETRO Zone 1/21. This product operates on Power over Ethernet (PoE, requiring only a single Ethernet cable for both power supply and network connectivity. This cost-effective camera integrates four sensors into a single unit.
Quick Specs:
- ATEX, IECEx, INMETRO Zone 1/21 certified
- Seamless 180 panoramic overviews
- Cost-efficient installation with PoE
- Forensic WDR and Lightfinder
Please see the related tabs for the 02822-001 datasheet and compatible accessories.
