Descrizione
Overview

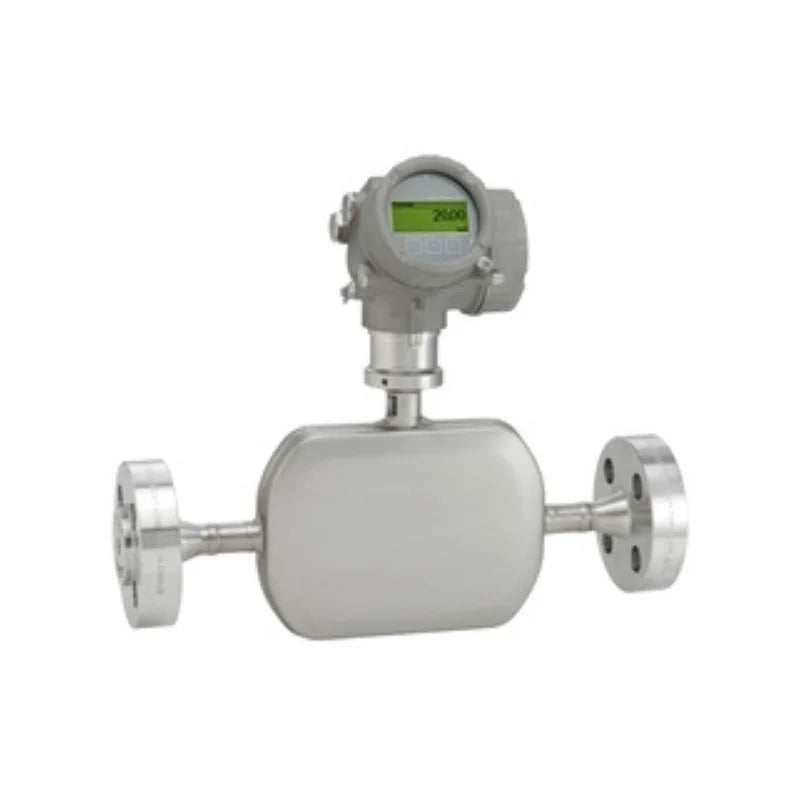

Endress+Hauser Proline Promass A300 Coriolis Flowmeter is an accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 450 kg/h (0 to 16.54 lb/min) * Medium temperature range -50 to 205 °C (-58 to 401 °F) * Max. process pressure 430.9 bar (6250 psi) * Wetted materials Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22
Application
Promass A is ideal for continuous process control in very demanding applications. Its unique self-drainable single-tube system enables accurate measurement of liquids and gases at lowest flow rates and high pressure. With its compact transmitter Promass A 300 offers high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Suitable for applications with smallest flow quantities in all industries Device properties * Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈") * Process pressure up to 430.9 bar (6250 psi) * Medium temperature up to +205 °C (+401 °F) * Compact dual-compartment housing with up to 3 I/Os * Backlit display with touch control and WLAN access * Remote display available
Benefits
* Space-saving installation – compact, lightweight sensor * Highest product quality – self-drainable measuring tube in all line sizes * Optimum process safety – resistant to corrosive ambient conditions and internal clogging * Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet * Reduced complexity and variety – freely configurable I/O functionality * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Swaziland
Brand Name
Endress+Hauser
Model Number
Proline Promass A300
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.
Sensor Features
Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi). Medium temperature up to +205 °C (+401 °F).
Transmitter Features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available
Outputs
3 outputs: 4-20 mA HART (active/passive) 4-20 mA WirelessHART 4-20 mA (active/passive) Pulse/frequency/switch output (active/passive) Double pulse output (active/passive) Relay output
DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous Area Approvals
ATEX, IECEx, cCSAus, INMETRO, NEPSI, UK Ex
Product Safety
CE, C-TICK
Functional Safety
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Hygienic Approvals And Certificates
3-A, cGMP
Pressure Approvals And Certificates
CRN
Material Certificates
3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
