[shortdesc]
Built for speed and precision, the Ricoh fi-8170 is a high-performance document scanner with duplex scanning, 600 dpi resolution, and 100-sheet ADF capacity. Ideal for professional workflows requiring crisp image quality and reliable paper handling.
[/shortdesc]
[properties]
| Model |
Ricoh fi-8170 |
| Product Type |
Desktop Document Scanner |
| Scanning Technology |
Dual CIS (Front and Back |
| Light Source |
RGB LED (Front and Back |
| Scanning Speed |
Simplex 70 ppm; Duplex 140 ipm (A4, 200/300 dpi |
| ADF Capacity |
100 sheets (A4 80 g/m² |
| Optical Resolution |
600 dpi |
| Output Resolution |
50 to 600 dpi (1 dpi increments; 1200 dpi (driver |
| Supported Media Size |
Min 48 × 50 mm; Max 215.9 × 355.6 mm; Long Page up to 6,096 mm |
| Supported Media Weight |
Paper 20 to 465 g/m²; Plastic cards up to 1.4 mm; Booklets under 7 mm |
| Interface |
USB 3.2 Gen1x1; USB 2.0; USB 1.1; Gigabit Ethernet |
| Display |
Front-facing color LCD panel |
| Power Requirements |
AC 100–240 V, 50/60 Hz |
| Power Consumption |
Operating 28 W or less; Eco Mode 17 W |
| Dimensions (W × D × H |
300 × 170 × 163 mm |
| Weight |
4 kg |
| Operating Temperature |
5 to 35 °C |
| Operating Humidity |
15 to 80 percent (non-condensing |
| Environmental Compliance |
ENERGY STAR; RoHS |
[/properties]
[specifications]
| Image Sensor |
CIS ×2 (Front ×1, Back ×1 |
| Color Depth |
Color 24-bit; Grayscale 8-bit; Monochrome 1-bit |
| Background Colors |
White or Black (Selectable |
| Multifeed Detection |
Ultrasonic sensor (overlap; Length detection |
| Paper Protection |
Image monitoring; Sound detection (iSOP |
| Daily Duty Cycle |
Up to 10,000 scans per day |
| Image Processing Functions |
Automatic color detection; Blank page detection; De-skew; Hole punch removal; Cropping; Background pattern removal; Dropout color; Multi image output |
| Supported Operating Systems |
Windows 11, 10, 8.1, 7; Windows Server 2025, 2022, 2019, 2016, 2012 R2; macOS; Linux (Ubuntu |
| Drivers |
TWAIN; ISIS; WIA; ICA (macOS; SANE (Linux |
| Consumables (Recommended |
Pick Roller and Brake Roller replacement every 200,000 sheets or 1 year |
[/specifications]

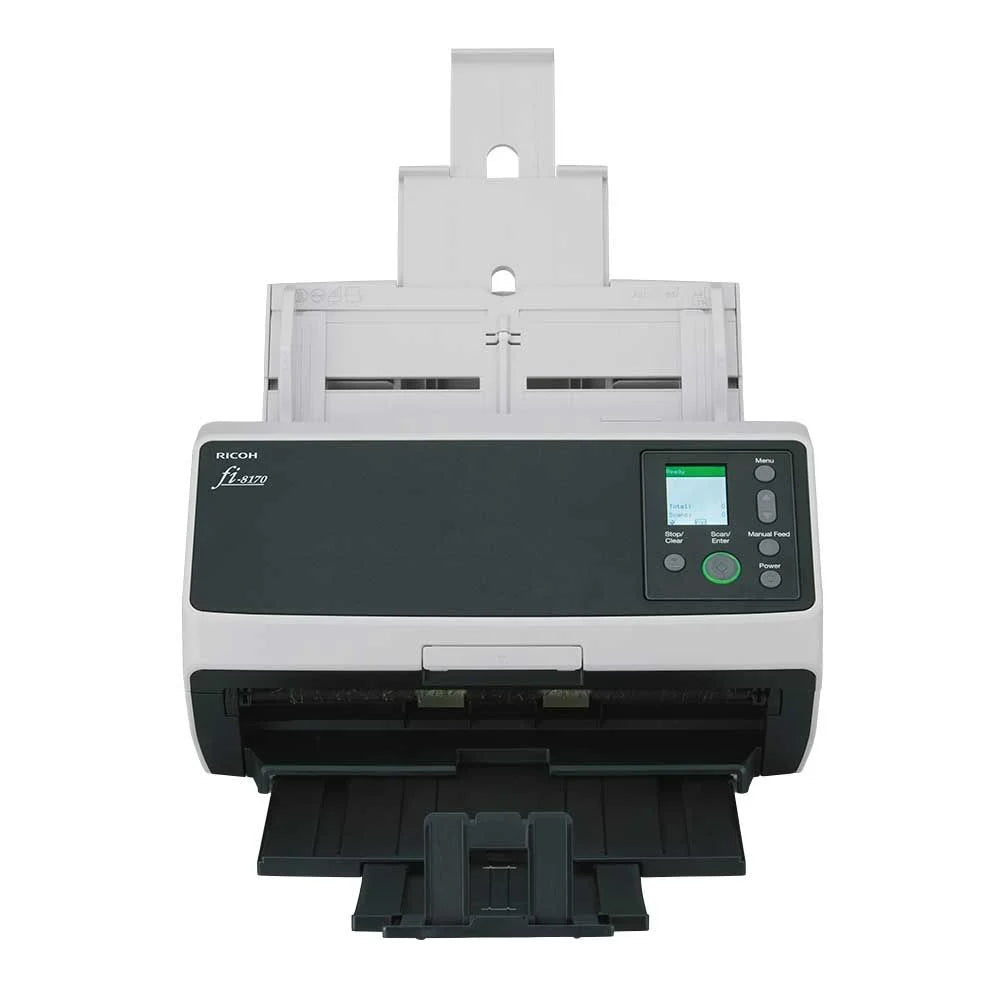

Ricoh FI-8170 Document Scanner
The Ricoh fi-8170 Document Scanner is designed for fast-paced professional environments demanding both speed and exceptional image quality. Powered by proprietary Clear Image Capture (CIC technology, it delivers outstanding OCR accuracy and digitally enhanced scans. Its compact form houses robust components, including a 100-sheet ADF and ultrasonic multifeed detection, making it a reliable choice for high-volume workflows. With scanning speeds up to 70 ppm/140 ipm at 200/300 dpi, and support for long-page and embossed card scanning, the fi-8170 ensures every document type is processed efficiently.
Key Features:
- Scan speed: Up to 70 ppm simplex / 140 ipm duplex (200/300 dpi
- Optical resolution: 600 dpi with 24-bit color scanning
- Clear Image Capture (CIC for superior image clarity and OCR performance
- Automatic Separation Control and ultrasonic multifeed detection
- 100-sheet Automatic Document Feeder with long page scanning up to 240 in.
- Supports documents, sticky notes, receipts, labels, plastic and embossed cards
- Interfaces: USB 3.2 Gen 1x1 and Gigabit Ethernet
- Compatible with TWAIN, ISIS®, WIA, macOS, Linux, and Windows
- Bundled with PaperStream IP, PaperStream Capture, ABBYY FineReader for ScanSnap™, and ClickScan
Technical Specifications:
-
Scanner Type: ADF / Manual Feed, Duplex
-
Image Sensor: CIS x2, RGB LED
-
Document Size: Max 8.5 x 14 in., Min 1.9 x 2 in., Long scan up to 240 in.
-
ADF Capacity: 100 sheets (A4/Letter, 80 g/m²
-
Expected Daily Volume: 10,000 sheets
-
Paper Weight: 20 to 465 g/m², supports booklets and plastic cards
-
Dimensions: 11.8 x 6.7 x 6.4 in. (300 x 170 x 163 mm
-
Weight: 8.8 lb (4 kg
-
Power Consumption: 28 W max (operation, 0.2 W (standby
-
Environmental: 5–35 °C, 15–80% RH, ENERGY STAR®
Frequently Asked Questions (FAQ
1. What types of documents can the Ricoh fi-8170 scan?
The Ricoh fi-8170 supports a wide range of media, including standard documents, long pages up to 6,096 mm, plastic cards up to 1.4 mm thick, passports, IDs, and booklets under 7 mm thickness.
2. Does the Ricoh fi-8170 support network scanning?
Yes, the scanner supports both USB connections and Gigabit Ethernet, allowing flexible deployment in shared or networked office environments.
3. What is the maximum scanning speed of the Ricoh fi-8170?
The Ricoh fi-8170 delivers scanning speeds of up to 70 pages per minute in simplex mode and up to 140 images per minute in duplex mode at 200 or 300 dpi.
