Overview

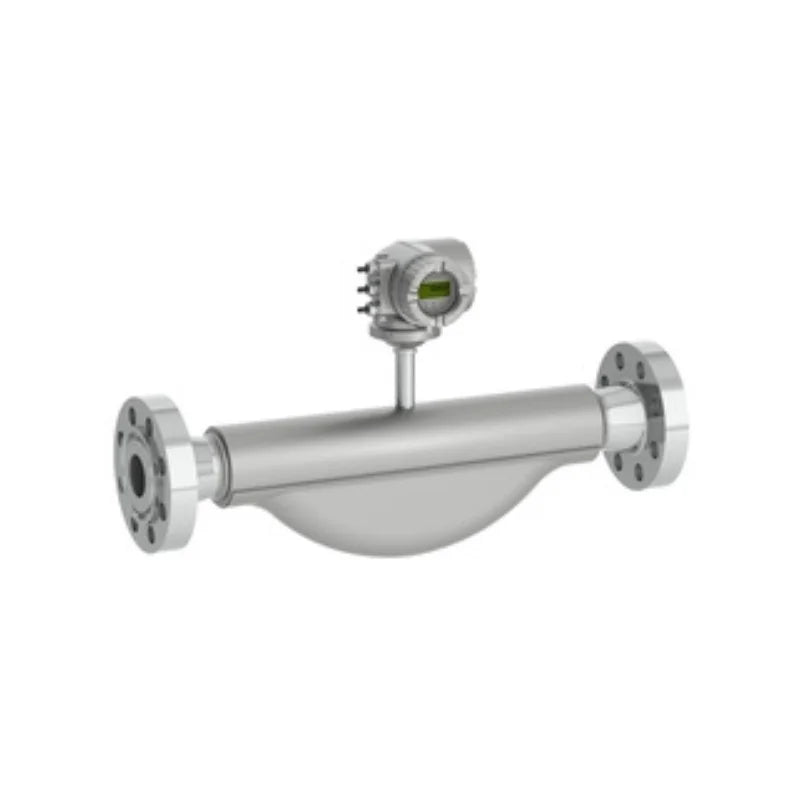

Endress+Hauser 8O1B Proline Promass O100 Coriolis Flowmeter is a robust high-pressure flowmeter with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 (standard), 0.05 % (option) Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 800 000 kg/h (0 to 29 400 lb/min) * Medium temperature range –40 to +205 °C (–40 to +401 °F) * Max. process pressure PN 250, Class 1500 * Wetted materials Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750) Connection: 25Cr duplex (Super Duplex), 1.4410 (F53) Measuring tube: 1.4539 (904L) Connection
Application
Promass O is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. Promass O 100 delivers full performance on the smallest footprint with its ultra-compact transmitter and thus enables seamless system integration. Heartbeat Technology enables process safety at all times. * Measuring principle operates independently of physical fluid properties such as viscosity or density * For premium accuracy at highest process pressures, fully suitable for offshore conditions. Device properties * Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750) * Process pressure up to PN 250 (Class 1500) * Nominal diameter: DN 80 to 150 (3 to 6") * Robust, ultra-compact transmitter housing * High ingress protection: IP69K * Local display available
Benefits
* Maximum safety – highest resistance to stress corrosion cracking * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in/outlet run needs * Space-saving transmitter – full functionality on the smallest footprint * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass O100
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Robust high-pressure flowmeter with an ultra-compact transmitter. For premium accuracy at highest process pressures, fully suitable for offshore conditions.
Sensor Features
Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 150 (3 to 6").
Transmitter Features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine Approvals And Certificates
LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure Approvals And Certificates
PED, CRN, AD 2000
Material Certificates
3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
