[shortdesc]
- Managed, Rack-mountable, 48 x 1/10/25G SFP+ ports, 6 x 40/100G QSFP28 Uplinks, No PoE (Data Only, Layer 3
[/shortdesc]
[properties]
| Properties |
93180YC-EX |
| Description |
Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28, MACsec, and Unified Ports capable |
| Product Family |
Cisco Nexus 9300-FX Series |
| Product Type |
Ethernet Switch |
| Ports |
48 x 1/10/25-Gbps fiber ports and 6 x 40/100-Gbps Quad Small Form-Factor Pluggable 28 (QSFP28 ports |
| Downlink supported speeds |
1/10/25-Gbps Ethernet
16/32-Gbps Fibre Channel |
| Management ports |
2 ports: 1 RJ-45 and 1 SFP |
| USB ports |
1 |
| RS-232 serial ports |
1 |
| Power supplies (up to 2 |
500W AC, 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Power Max/Avg (AC/DC |
210W - 470 W |
| Input voltage (AC |
100 to 240V |
| Input voltage (DC |
–48 to –60V |
| Frequency (AC |
50 to 60 Hz |
| Fans |
4 |
| Airflow |
Port-side intake and exhaust |
| Physical dimensions |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm |
[/properties][specifications]
| CPU |
4 cores |
| System memory |
24 GB |
| SSD drive |
64 GB |
| System buffer |
40 MB |
| Minimum ACI image |
ACI-N9KDK9-11.3 |
| Minimum NX-OS image |
NXOS-703I4.2 |
| MTBF |
390,330 hours |
| RoHS 6 compliance |
Yes |
| Regulatory Standards Compliance |
● UL 60950-1 Second Edition |
| ● CAN/CSA-C22.2 No. 60950-1 Second Edition |
| ● EN 60950-1 Second Edition |
| ● IEC 60950-1 Second Edition |
| ● AS/NZS 60950-1 |
| ● GB4943 |
| ● 47CFR Part 15 (CFR 47 Class A |
| ● AS/NZS CISPR22 Class A |
| ● CISPR22 Class A |
| ● EN55022 Class A |
| ● ICES003 Class A |
| ● VCCI Class A |
| ● EN61000-3-2 |
| ● EN61000-3-3 |
| ● KN22 Class A |
| ● CNS13438 Class A |
| ● EN55024 |
| ● CISPR24 |
| ● EN300386 |
| ● KN 61000-4 series |
| Operating temperature |
32 to 104°F (0 to 40°C |
[/specifications][accesories]
| NXA-PAC-500W-PI |
Nexus 9000 500W AC PS, Port-side Intake |
| NXA-PAC-500W-PE |
Nexus 9000 500W AC PS, Port-side Exhaust |
| NXA-PDC-930W-PI |
Nexus 9000 930W DC PS, Port-side Intake |
| NXA-PDC-930W-PE |
Nexus 9000 930W DC PS, Port-side Exhaust |
| N9K-PUV-1200W |
Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports HVAC/HVDC |
| NXA-FAN-30CFM-F |
Nexus Single Fan, 30CFM, port side exhaust airflow |
| NXA-FAN-30CFM-B |
Nexus Single Fan, 30CFM, port side intake airflow |
| CAB-9K12A-NA |
Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5 meter |
| CAB-AC-L620-C13 |
North America, NEMA L6-20-C13 (2.0 meter |
| CAB-C13-C14-2M |
Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2 meter |
| CAB-C13-CBN |
Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors (0.7 meter |
| CAB-N5K6A-NA |
Power Cord, 200/240V 6A North America (2.5 meter |
| CAB-HVAC-RT-0.6M |
HVAC Power cable with right angle connector for RF-LS-25 |
| NXK-ACC-KIT-1RU |
Nexus Fixed Accessory Kit with 4-post rack mount kit |
[/accesories]

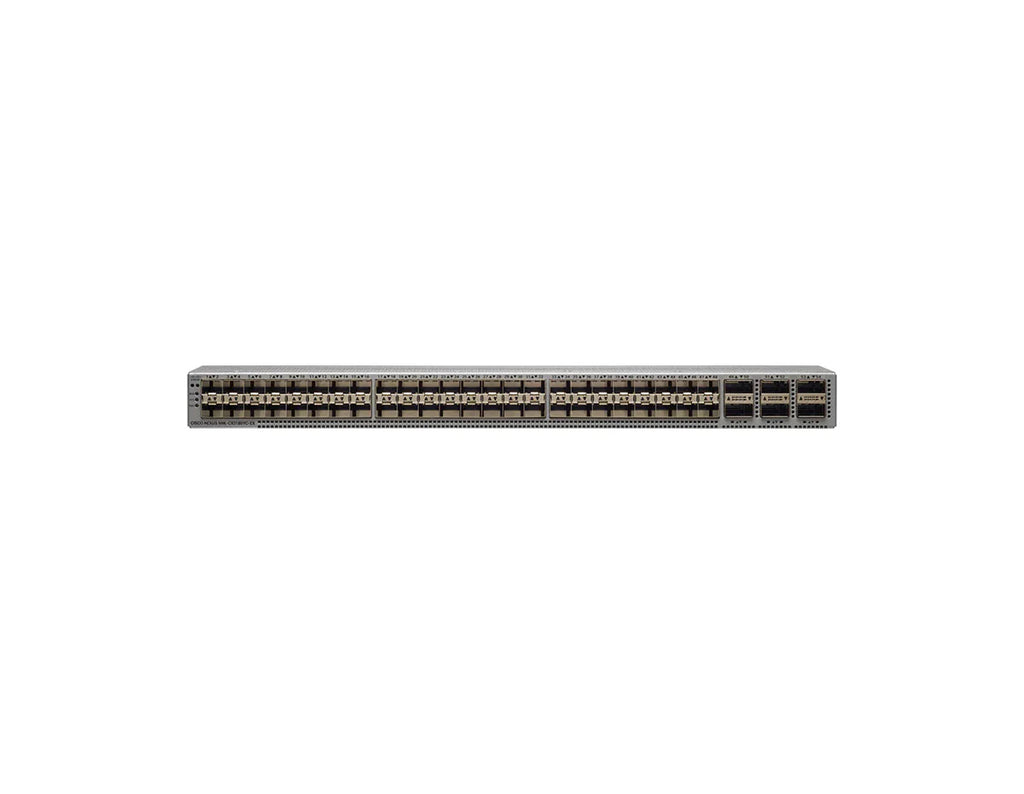

Cisco N9K-C93180YC-EX Switch
The Cisco N9K-C93180YC-EX is a highly versatile, high-performance switch designed for data center and cloud-scale environments. With 48 downlink ports supporting 1/10/25-Gbps speeds and 6 uplink ports supporting 40/100-Gbps, this switch offers scalability and flexibility for growing networks. Built on Cisco Cloud Scale technology, it delivers a throughput of 3.6 Tbps and supports advanced Layer 2 and Layer 3 features for efficient traffic management and high availability.
Key Features:
-
48 x 1/10/25-Gbps Ports: Provides flexible downlink options for diverse workloads.
-
6 x 40/100-Gbps QSFP28 Uplinks: Supports high-speed uplinks, enabling seamless data transfers and network scalability.
-
Layer 2 and Layer 3 Capabilities: Includes advanced routing and switching features for optimized traffic management.
-
Investment Protection: Supports 1-Gbps to 25-Gbps migration at the server, ensuring future-proof scalability.
-
Cloud-Scale Design: Ideal for data centers and cloud environments with advanced automation and programmability features.
Technical Overview:
-
Recommended for: Data centers, cloud environments, and enterprise networks.
-
Ports: 48 x 1/10/25-Gbps fiber ports, 6 x 40/100-Gbps QSFP28 uplinks.
-
Throughput: 3.6 Tbps.
-
Forwarding Rate: 2.6 billion packets per second (bpps.
-
Latency: Less than 1 microsecond.
You can check the related tab for the N9K-C93180YC-EX datasheet.
