[shortdesc] Firewall, rack-mountable, 1U, with NetMod Bay
[/shortdesc]
[properties]
| Properties |
FPR2140-NGFW-K9 |
| Product Family |
Firepower 2100 Series |
| Product Type |
Firewalls |
| Throughput: FW + AVC (1024B) |
9 Gbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) |
9 Gbps |
| Maximum concurrent sessions, with AVC |
3 million |
| Maximum new connections per second, with AVC |
57K |
| Transport Layer Security (TLS) |
1.4 Gbps |
| Throughput: IPS (1024B) |
9 Gbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) |
3.2 Gbps |
| Maximum VPN Peers |
10000 |
| Cisco Device Manager (local management) |
Yes |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense
Orchestrator |
| Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
| URL filtering: number of categories |
More than 80 |
| URL filtering: number of URLs categorized |
More than 280 million |
| Dimensions in. (H x W x D) |
1.73 x 16.90 x 19.76 |
| Form factor (rack units) |
1RU |
| Integrated I/O |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Integrated network management ports |
1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) |
| Serial port |
1 x RJ-45 console |
| USB |
1 x USB 2.0 Type-A (500mA) |
| Storage |
1x 200 GB, 1x spare slot (for MSP) |
| Power supply configuration |
Dual 400W AC. Single/dual 350W DC optional |
| Reduncany |
1+1 AC or DC with dual supplies |
| Fans |
1 hot-swappable fan module |
| Rack Mountable |
Yes. Mount rails included (4-post EIA- 310-D rack) |
[/properties][specifications]
| Specifications |
FPR2140-NGFW-K9 |
| Stateful inspection firewall throughput |
20 Gbps |
| Stateful inspection firewall throughput (multiprotocol) |
10 Gbps |
| Concurrent firewall connections |
3 million |
| Firewall latency (UDP 64B microseconds) |
- |
| New connections per second |
75000 |
| IPsec VPN throughput (450B UDP L2L test) |
2 Gbps |
| Maximum VPN Peers |
10000 |
| Operating Temperature |
32 to 104°F
(0 to 40°C) or NEBS operation |
| Regulatory compliance |
Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety |
— UL 60950-1
— CAN/CSA-C22.2 No. 60950-1 — EN 60950-1
— IEC 60950-1
— AS/NZS 60950-1
— GB4943 |
| EMC: emissions |
— 47CFR Part 15 (CFR 47) Class A (FCC Class A) — AS/NZS CISPR22 Class A
— CISPR22 CLASS A
— EN55022 Class A
— ICES003 Class A — VCCI Class A
— EN61000-3-2
— EN61000-3-3
— KN22 Class A
— CNS13438 Class A — EN300386
— TCVN7189 |
| EMC: immunity |
— EN55024
— CISPR24
— EN300386
— KN24
— TVCN 7317
— EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11 |
[/specifications]

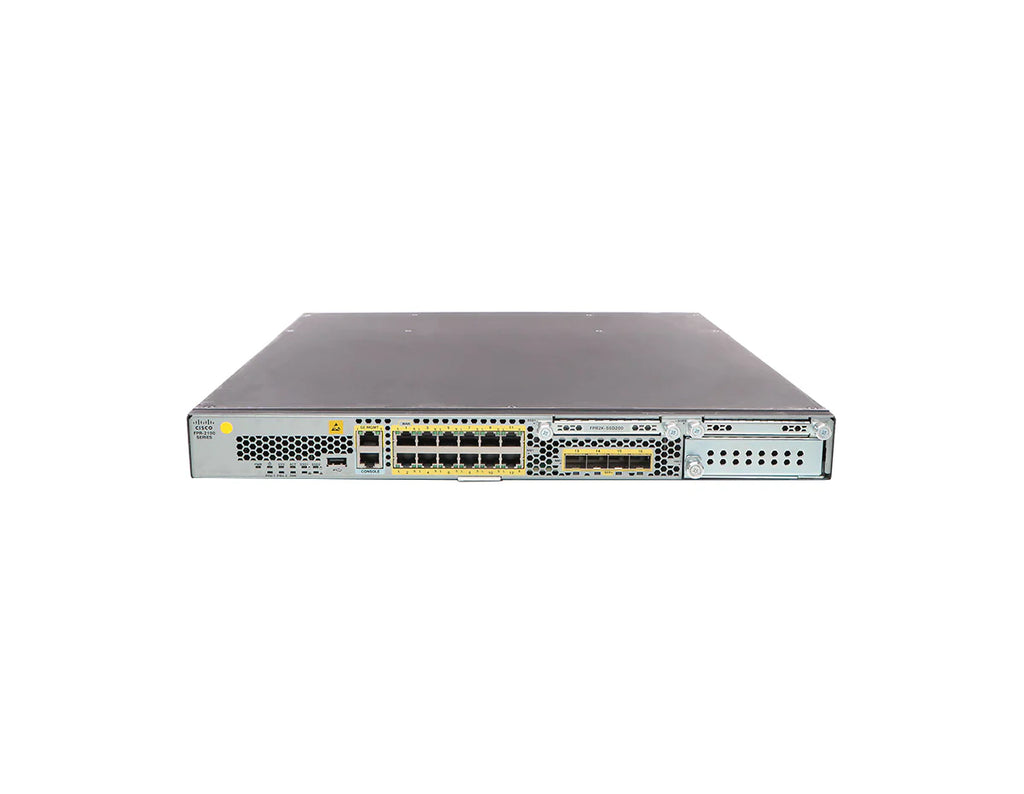

Cisco FPR2140-NGFW-K9 Firewall
The Cisco Firepower 2100 Series is a midrange Next-Generation Firewall (NGFW) that delivers consistent performance when threat inspection is activated. It provides firewall throughput capacity suitable for a variety of use cases, from the Internet edge to the data center. The Cisco Firepower 2140 NGFW Appliance, identified by the model number FPR2140-NGFW-K9, comes equipped with 12 Ethernet interfaces (RJ-45) that support 10M, 100M, and 1GBASE-T, 4 10 Gigabit Ethernet interfaces (SFP+), and 1 Network Module Bay.
Key Features:
- Throughput: FW + AVC 1024B : 8.5 Gbps
- Application Visibility and Control (AVC)
- Network Equipment Building Standards (NEBS)
Please check the FPR2140-NGFW-K9 datasheet from the tabs above for detailed specifications.
