Description
Overview

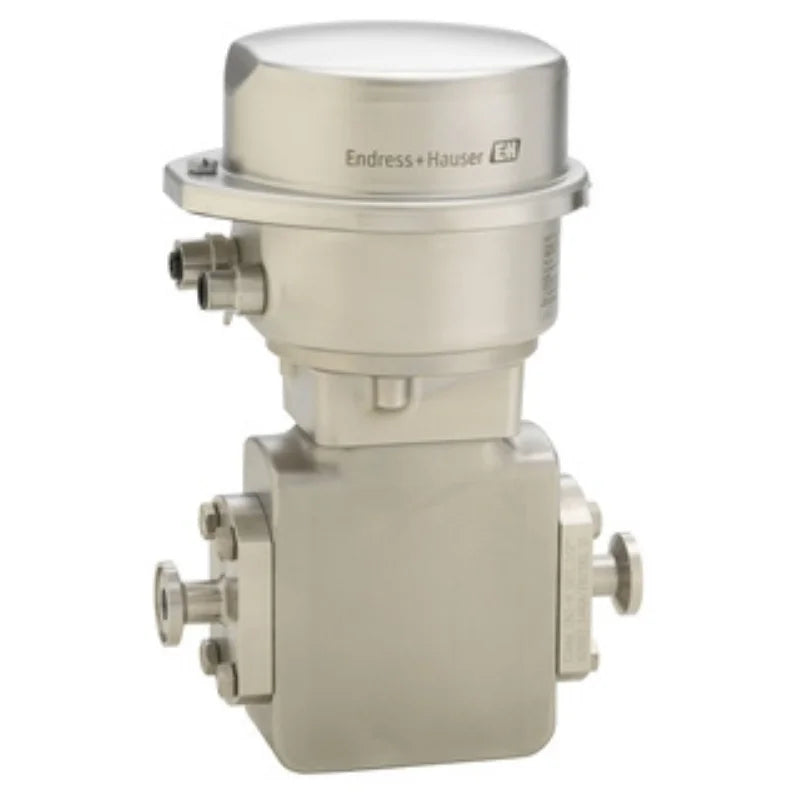

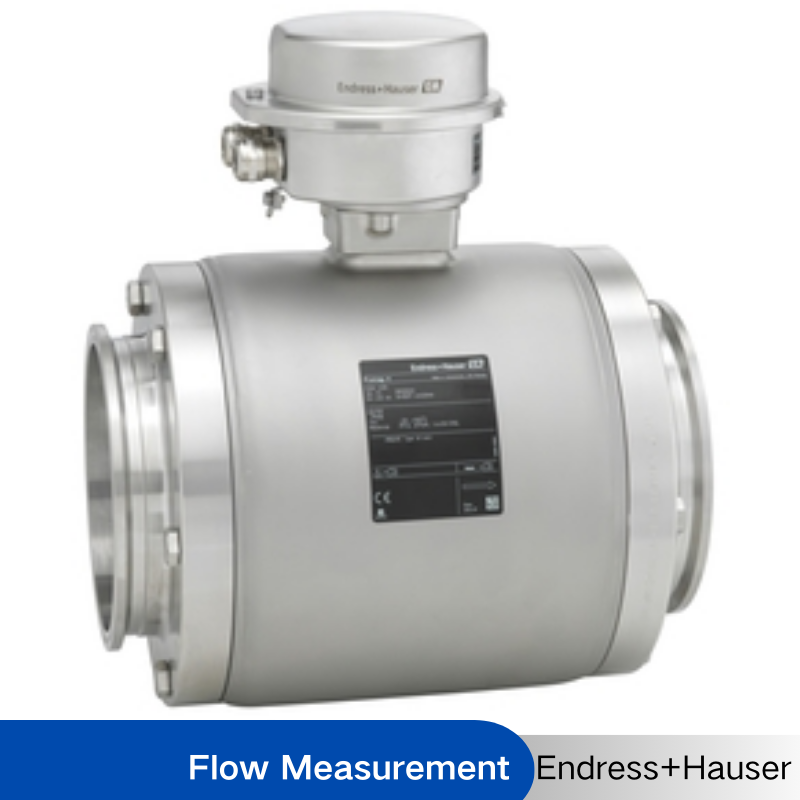

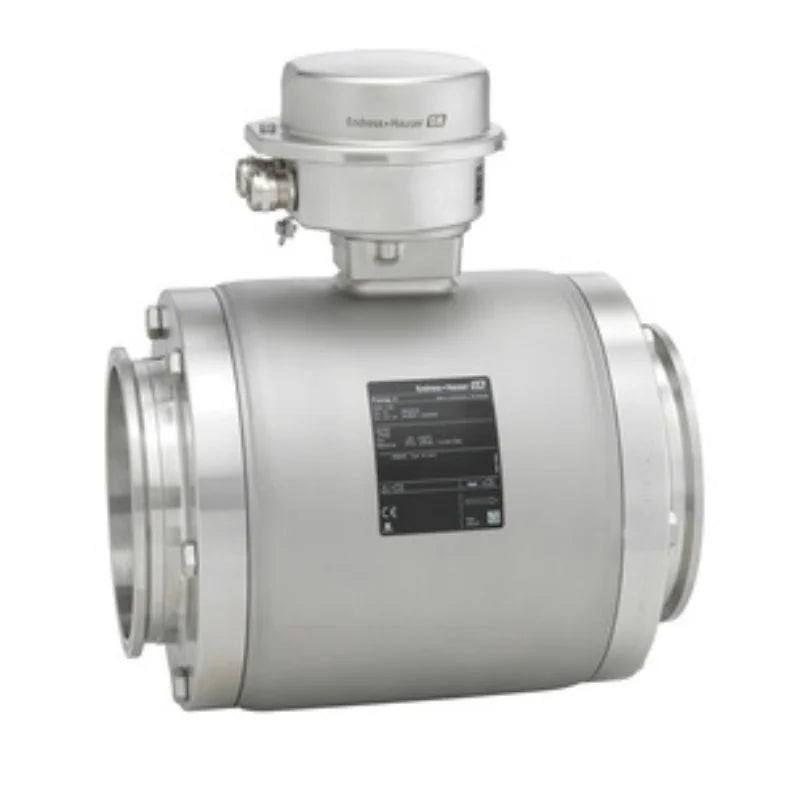

Endress+Hauser Proline Promag H100 Electromagnetic Flowmeter. The specialist for life sciences with an ultra-compact transmitter.
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity * Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Device properties * Integrated temperature measurement * Sensor housing made of stainless steel (3-A, EHEDG) * Wetted materials CIP, SIP cleanable * Robust, ultra-compact transmitter housing * High ingress protection: IP69 * Local display available
Benefits
* Multivariable measurement for flow, temperature and conductivity * Flexible installation concept – numerous hygienic process connections * Energy-saving flow measurement – no pressure loss due to cross-section constriction * Space-saving transmitter – full functionality on the smallest footprint * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification – Heartbeat Technology * Maintenance-free – no moving parts
Specification
Model Number
Proline Promag H 100
Measuring principle
Electromagnetic
Product headline
Specialist for hygienic applications with an ultra-compact transmitter. Multivariable measurement of flow, temperature and conductivity. Dedicated to demanding applications in the food and beverage as well as in life sciences industries.
Sensor features
Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Integrated temperature measurement. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP, SIP cleanable.
Transmitter features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. High degree of protection: IP69. Local display available.
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)
Marine approvals and certificates
LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates
PED, CRN
Material certificates
3.1 material
Hygienic approvals and certificates
Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
