Description

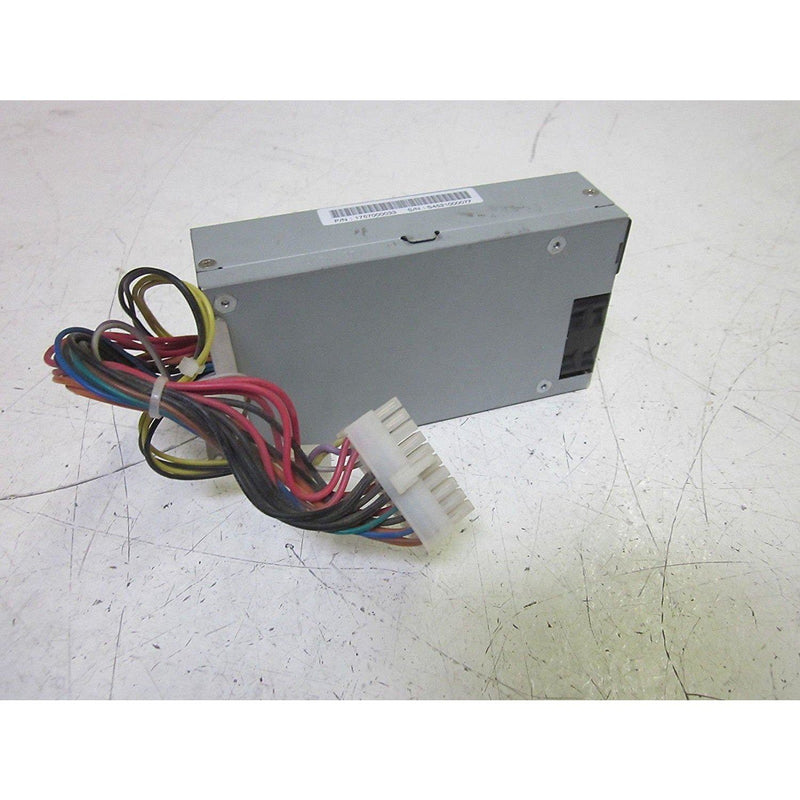

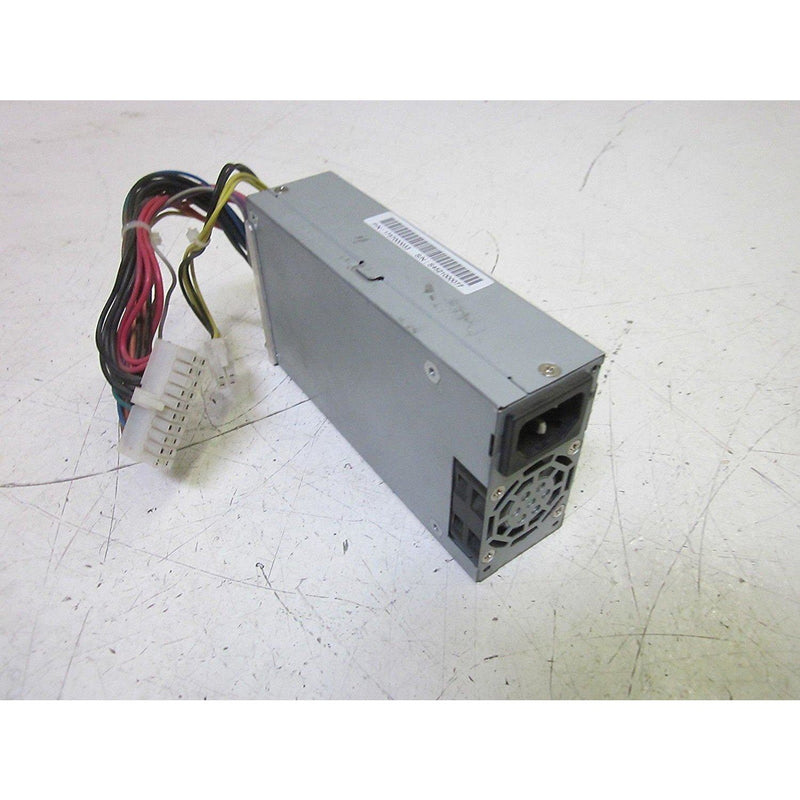

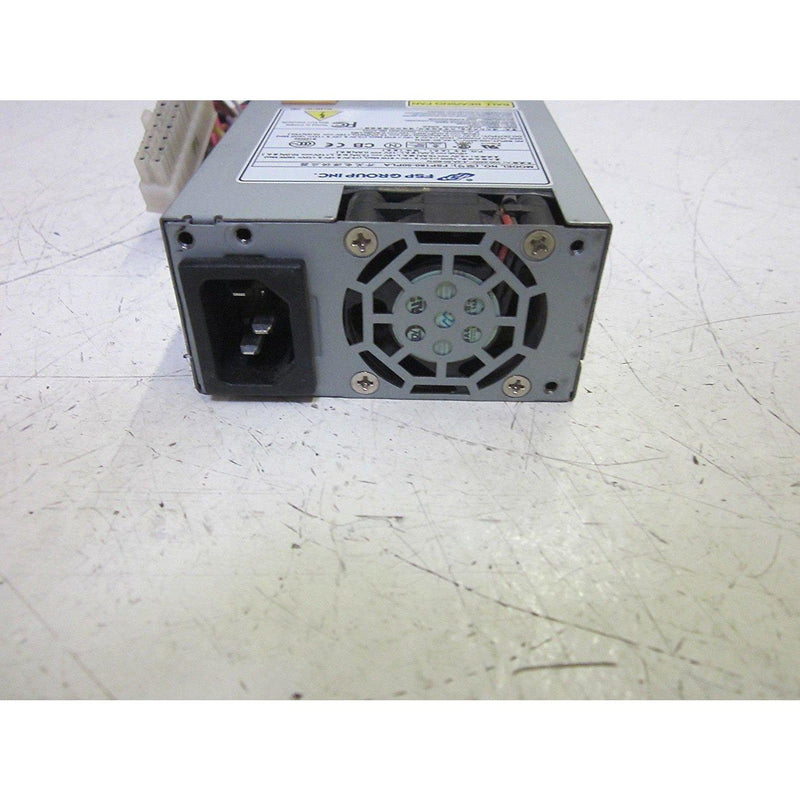

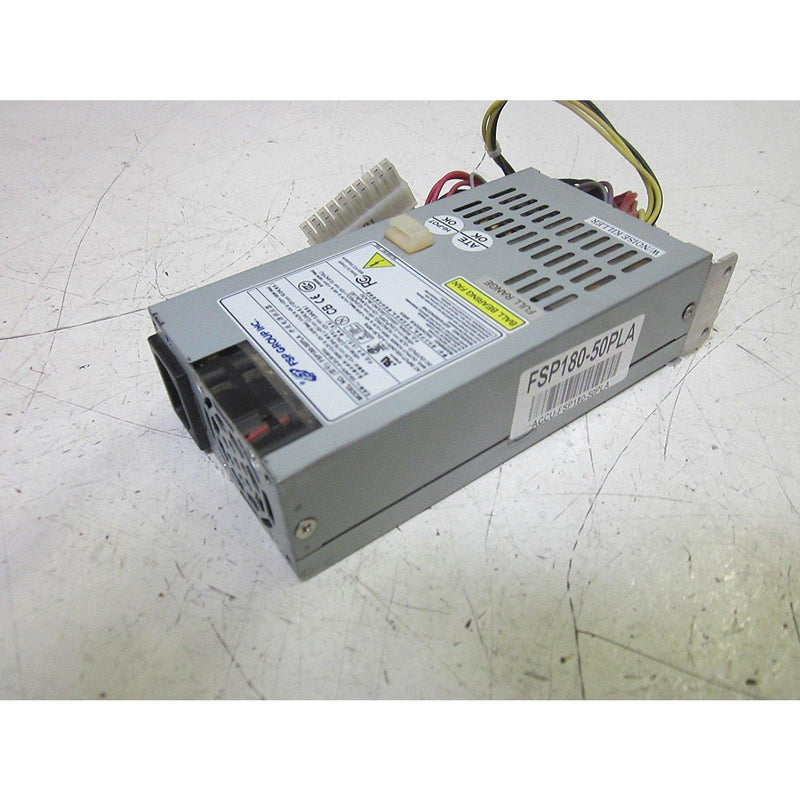

Key Features Warranty 1 Year Output Power 180 W Form Factor Flex ATX Weight 2.5 lbs MTBF 100,000 HOURS @ 25C Ambient Connectors Main 20.pin, P4 4.pin, 3xMolex 4.pin, 1xFDD 4.pin Dimensions WxDxH 81.5 x 125.0 x 40.5 mm Fan Features Quiet 40mm Ball Bearing Fan Detail Specifications FEATURES : -- MAIN 20.PIN FOR LATEST INTEL OR AMD -- FLEX_ATX | P4 | 1U TYPE -- QUIET 40mm BALL.BEARING FAN -- ULTRA.HIGH EFFICIENCY -- ENERGY SAVER -- CASE COVER VENTILATION DESIGN -- ADVANCED THERMAL CONTROL SENSOR -- REPLACE | UPGRADE TO MOST FLEX_ATX -- ON/OFF SWITCH SPECIFICATIONS : -- EFFICIENCY: 70%+ -- LOW RIPPLE | LOW OPERATING NOISE -- OPERATING TEMPERATURE: 0 TO +50C -- STORAGE TEMPERATURE: -20 TO +65C -- HUMIDITY: 10-90% NON.CONDENSING -- OVP: OVER VOLTAGE OUTPUT PROTECTION -- OCP: OVER CURRENT OUTPUT PROTECTION -- SCP: SHORT CIRCUIT OUTPUT PROTECTION -- 100% HI.POT TESTED -- MTBF: 100,000 HOURS @ 25C AMBIENT OUTPUT.CONNECTORS: -- MAIN 20.PIN, P4 4.PIN, (3) MOLEX 4.PIN, (1) FDD 4.PIN INPUT : -- FULL RANGE INPUT U.S. | WORLDWIDE -- PATENTED INPUT FUSE PROTECTION BUILT-IN DIMENSIONS | WEIGHT : -- DIMENSIONS: 125.0Lx81.5Wx40.5H (mm) | WEIGHT : 2.5 LBS -- SHIPPING: 12 UNITS/CARTON | WEIGHT : 32 LBS/CARTON OUTPUT CHART : -- Output Voltage: +3.3V, Min. load: 0.3A, Max. load: 16.8A , Load Reg: ±5%, Ripple & Noise: 50mV P-P -- Output Voltage: +5V, Min. load: 0.3A, Max. load: 12.0A , Load Reg: ±5%, Ripple & Noise: 50mV P-P -- Output Voltage: +12V, Min. load: 1.5A, Max. load: 10.0A , Load Reg: ±5%, Ripple & Noise: 120mV P-P -- Output Voltage: -12V, Min. load: 0.0A, Max. load: 0.3A , Load Reg: ±10%, Ripple & Noise: 120mV P-P -- Output Voltage: +5Vsb, Min. load: 0.0A, Max. load: 2.0A, Load Reg: ±5%, Ripple & Noise: 50mV P-P SAFETY: -- UL, CSA, VDE, NEMKO, TUV, CE, CB, FCC Warranty -- 1 Year
