Description
Overview

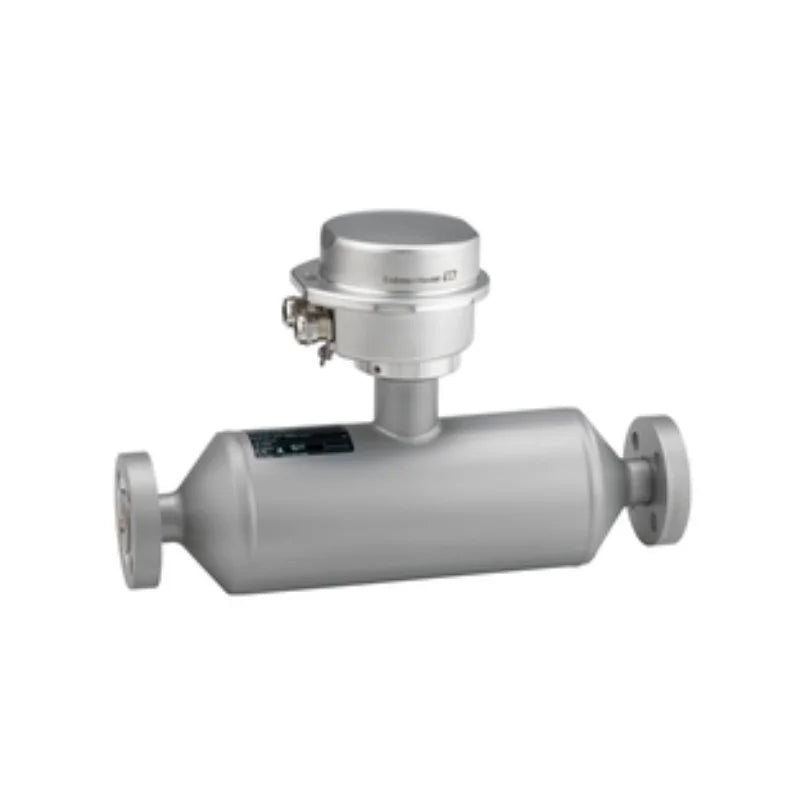

Endress+Hauser 8I1B Proline Promass I100 Coriolis Flowmeter combines in-line viscosity and flow measurement with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 180 000 kg/h (0 to 6600 lb/min) * Medium temperature range –50 to +150 °C (–58 to +302 °F) * Max. process pressure PN 100, Class 600, 63K * Wetted materials Measuring tube: Titanium grade 9 Connection: Titanium grade 2
Field of application
The straight single-tube design of the Promass I 100, provides the regular Coriolis flowmeter outputs of mass flow, density and temperature, additionally it provides in-line viscosity measurement as an optional output. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass I 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.
Device properties * Straight, easy cleanable single-tube system * TMB® technology * Measuring tube made of Titanium * Robust, ultra-compact transmitter housing * High ingress protection: IP69K * Local display available
Benefits
* Energy-saving – full bore design enables minimal pressure loss * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in/outlet run needs * Space-saving transmitter – full functionality on smallest footprint * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass I100
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Combines in-line viscosity and flow measurement with an ultra-compact transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.
Sensor Features
Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.
Transmitter Features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine Approvals And Certificates
PED, CRN
Material Certificates
3.1 material
Hygienic approvals and certificates
3-A, EHEDG, cGMP
