[shortdesc]
- Managed, rack-mountable, 24 x 10/100 Fast Ethernet PoE+ ports, 2 x 1G SFP and RJ-45 combo uplinks + 2 x 1G SFP uplinks, PoE+ (195W), Layer 2
[/shortdesc] [properties]
| Properties |
C1000FE-24P-4G-L |
| Description |
24x 10/100 Ethernet PoE+ ports and 195W PoE budget, 2x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Ethernet Switch |
| Number of Ports |
24 |
| Uplink Interfaces |
2 SFP / RJ-45 combo
and 2 SFP |
| Available PoE power |
195W |
| Fanless |
Yes |
| Width |
17.48" |
| Depth |
13.78" |
| Height |
1.73" |
[/properties] [specifications]
| Specifications |
C1000FE-24P-4G-L |
| Console Ports |
1x RJ-45 Ethernet
1x USB mini-B
1x USB-A port for storage and Bluetooth console |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Bandwidth |
FE: 6.4 Gbps
1G: 28 Gbps
10G: 64 Gbps |
| Switching Bandwidth |
FE: 12.8 Gbps
1G: 56 Gbps
10G: 128 Gbps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
Operating Temperature
Up to 5,000 ft (1500 m) |
-5 to 45 deg C |
Operating Temperature
Up to 10,000 ft (3000 m) |
-5 to 40 deg C |
| Safety |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
| EMC: emissions |
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity |
EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
USGv6 and IPv6 Ready Logo |
| Ethernet interfaces |
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications] [accesories]
| Part Number |
Description |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP |
Power Cable Restraining Clip |
| RCKMNT-1RU-2KX |
Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi) |
[/accesories]

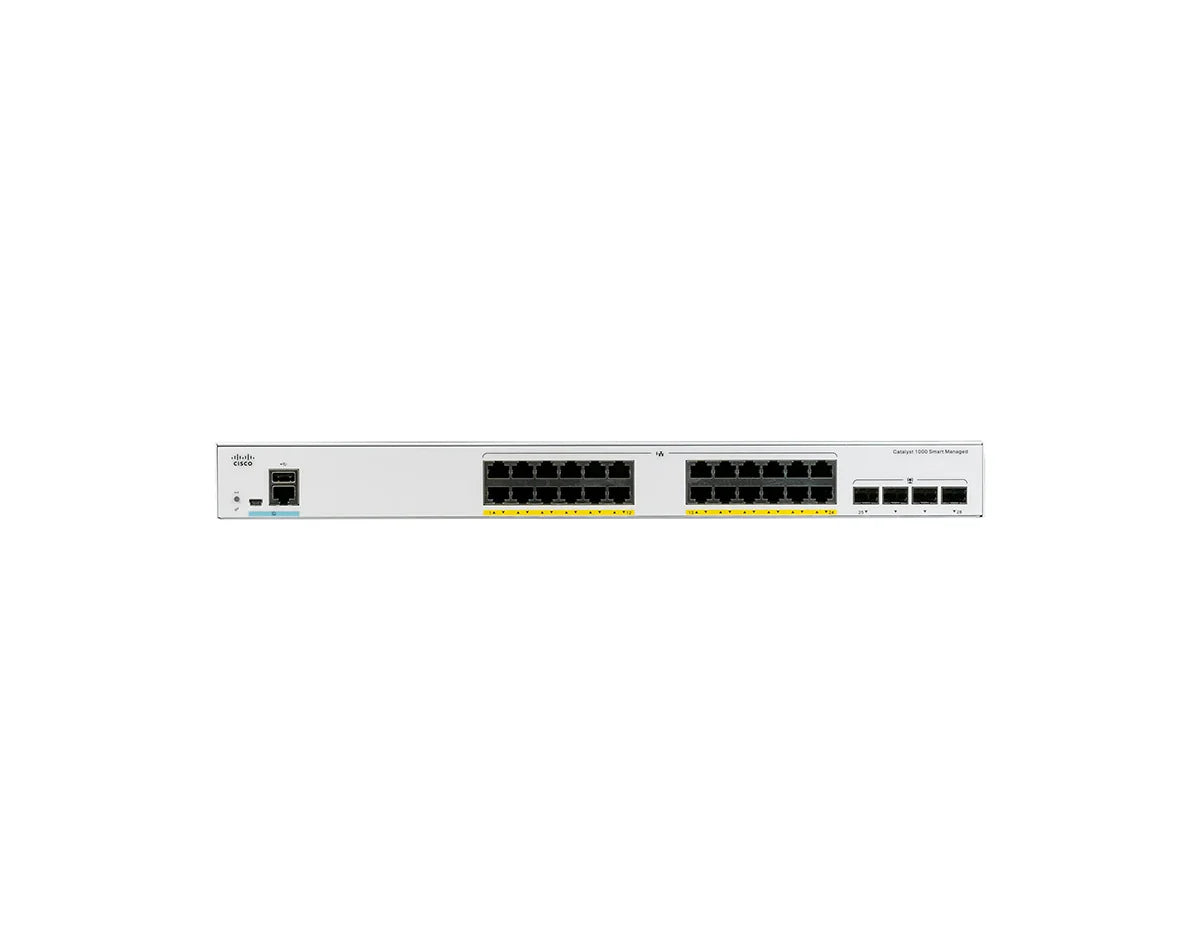

Cisco C1000FE-24P-4G-L Switch
The Cisco C1000FE-24P-4G-L is a reliable, feature-rich Fast Ethernet switch designed for small and medium-sized businesses. With 24 PoE+ ports and a total power budget of 195W, this switch can seamlessly power IP devices such as phones, cameras, and wireless access points. It also features four Gigabit Ethernet uplinks (2 x 1G SFP and RJ-45 combo, 2 x 1G SFP), ensuring flexible and scalable network expansion.
Key Features:
-
24 x Fast Ethernet PoE+ Ports: Supports high-speed connections for devices like IP phones, cameras, and access points.
-
4 x Gigabit Uplinks: Provides flexible and scalable uplink connectivity to ensure efficient data transmission.
-
195W PoE+ Power Budget: Supplies up to 30W per port, ideal for powering various PoE-enabled devices.
-
Energy-Efficient Design: Complies with IEEE 802.3az standards for reduced power consumption during idle periods.
-
Compact and Fanless: Operates silently, making it ideal for noise-sensitive office environments.
Technical Overview:
-
Recommended for: Small and medium-sized businesses, branch offices, and retail environments.
-
Ports: 24 x 10/100 Mbps Fast Ethernet PoE+ ports, 4 x 1G uplinks (2 x SFP and RJ-45 combo + 2 x SFP).
-
PoE Budget: 195W across 24 PoE+ ports.
-
Switching Capacity: 12.8 Gbps (FE) / 56 Gbps (1G context).
-
Forwarding Rate: 9.52 Mpps (FE) / 41.67 Mpps (1G context).
-
Energy Efficiency: Meets IEEE 802.3az standards for energy-saving operation.
You can check the related tab for the C1000FE-24P-4G-L datasheet.
