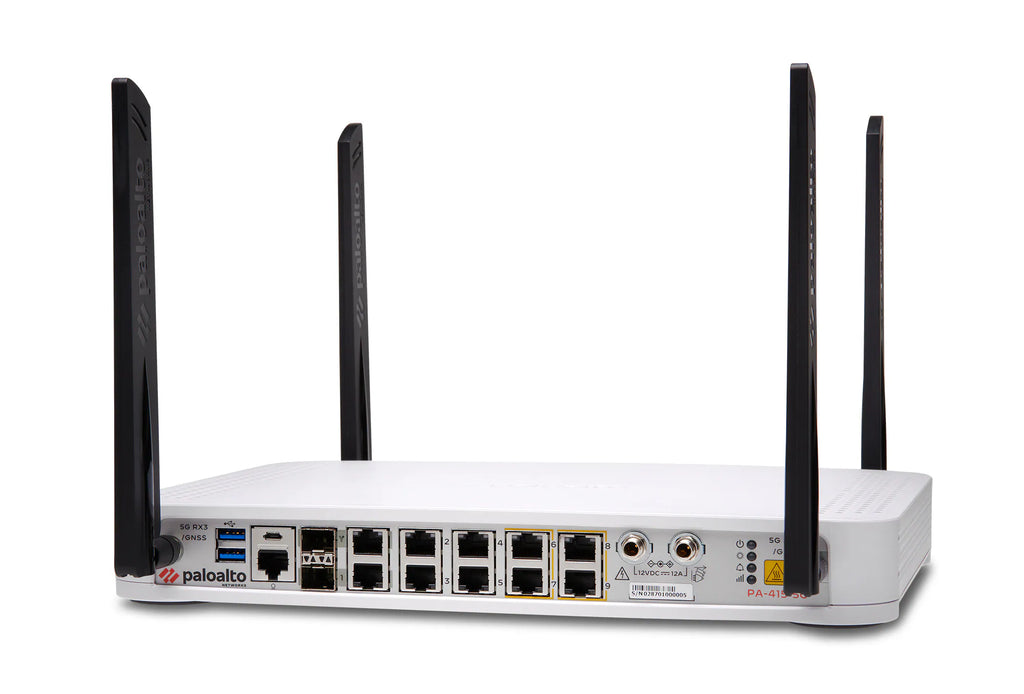

[shortdesc]
5G WAN, ML-Powered NGFW, 1.5 Gbps FW, 1x SFP/RJ45, 8x RJ45, 4x PoE, 0.8 Gbps Threat Prevention
[/shortdesc]
[properties]
| Brand |
Palo Alto Networks |
| Model |
PA-415-5G |
| Product Type |
ML-Powered Next-Generation Firewall with Integrated 5G |
| Form Factor |
Desktop |
| Color |
Black |
| Dimensions (H x W x D |
1.73 x 13 x 9 in (4.39 x 33.02 x 22.86 cm |
| Weight |
7.85 lbs (3.56 kg |
| Cooling |
Passive |
[/properties]
[specifications]
| Firewall Throughput (Appmix |
1.5 Gbps |
| Threat Prevention Throughput (Appmix |
0.8 Gbps |
| IPsec VPN Throughput |
0.65 Gbps |
| Max Concurrent Sessions |
64,000 |
| New Sessions per Second |
11,400 |
| Virtual Systems (Base/Max |
1/1 |
| Interfaces |
Embedded 5G cellular module, 1 x 1G SFP/RJ45 combo, 4 x 1G RJ45, 4 x 1G RJ45 PoE |
| Management I/O |
1 x SFP/RJ45 combo management, 1 x RJ45 console, 2 x USB, 1 x Micro USB console |
| Storage Capacity |
128 GB eMMC |
| PoE Support |
4 x 1G RJ45 PoE ports, 91 W total budget, 60 W max per port |
| Average Power Consumption |
133 W (with 91 W PoE output |
| Max Power Consumption |
142 W (with 91 W PoE output |
| Input Voltage/Frequency |
100–240 VAC, 50–60 Hz |
| Max Current Consumption |
3.7 A @ 12 VDC |
| Max BTU/hr |
150 |
| Operating Temperature |
0°C to 40°C (32°F to 104°F |
| Operating Humidity |
5%–95% non-condensing |
| Supported RF Bands |
5G NR Sub-6GHz: n2, n3, n5, n66, n71, n77, n78, n79; LTE: B1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B34, B38–B42, B46, B48, B66, B71; 3G: B1, B2, B4–B6, B8, B9, B19 |
[/specifications]
[accesories]
| AC Power Adapter |
Included in the box |
| Rack Mount Kit |
Optional |
| Console Cable |
Included in the box |
| Quick Start Guide |
Included in the box |
[/accesories]
Enterprise-Grade Security with Built-In 5G Flexibility
Branch networks and mobile deployments demand agile, high-performance security that’s always connected—even when wired lines fail. The PA-415-5G brings that resilience by combining next-generation firewall capabilities with integrated 5G WAN. Powered by Palo Alto’s PAN-OS and machine learning, it defends against known and unknown threats in real time while enabling always-on connectivity.
Built for PAN-OS 11.1+, this compact, rack-mountable firewall adds unmatched mobility to the PA-400 Series, making it the perfect choice for retail, enterprise branch offices, and mobile sites where traditional connectivity isn’t enough.
Key Benefits & Features
Integrated 5G Connectivity for Primary or Backup WAN
With an embedded 5G modem supporting major Sub-6GHz and LTE/3G bands, the PA-415-5G delivers wireless WAN as a primary or failover connection. It ensures service continuity even when wired networks are down.
Real-Time Protection with Machine Learning
Stop zero-day threats instantly with inline ML-based inspection. The PA-415-5G blocks previously unseen malware and phishing attacks, using Precision AI® to power advanced threat prevention, WildFire® detection, and URL filtering.
Compact, PoE-Ready Design for Branch Deployment
Equipped with 1 SFP/RJ45 combo port and 8 RJ-45 ports (4 of which offer PoE with 91W budget, this model simplifies edge deployments by powering access points and IP devices directly.
Consistent Policy Enforcement Across Any Network
PAN-OS allows you to apply application-layer security and user-based policies, regardless of where your users are located. Integrated with Panorama® and Strata™ Cloud Manager, it ensures visibility, policy compliance, and centralized control.
Supports SD-WAN and App-ID for Dynamic Routing & Visibility
Leverage SD-WAN path selection, traffic shaping, and Layer 7 App-ID technology to control SaaS usage and optimize cloud access across any WAN environment.
Ideal Use Cases
-
Retail outlets and branches needing secure, resilient internet through 5G
-
Mobile or pop-up offices with limited wired WAN access
-
Distributed enterprise environments using SD-WAN and needing granular control
-
Power-constrained sites that require integrated PoE support for connected devices
Technical Specifications
-
Firewall Throughput: 1.5 Gbps
-
Threat Prevention Throughput: 0.8 Gbps
-
IPsec VPN Throughput: 0.65 Gbps
-
Max Concurrent Sessions: 64,000
-
New Sessions Per Second: 11,400
-
Ports: 1x SFP/RJ45 combo, 4x RJ45, 4x PoE RJ45
-
PoE Budget: 91W total (60W max per port
-
Integrated 5G Bands: Sub-6GHz, LTE, and 3G bands
-
Power Consumption: 133W avg, 142W max
-
Dimensions: 1.73" H x 9" D x 13" W
-
Weight: 7.85 lbs
-
OS Compatibility: PAN-OS 11.1+
Secure the Edge — Anywhere, Instantly
Whether you need primary wireless WAN or resilient branch protection, the PA-415-5G delivers. With inline ML security, integrated 5G, PoE, and SD-WAN, it's your all-in-one edge security solution. Order today and future-proof your branch connectivity.
