Overview

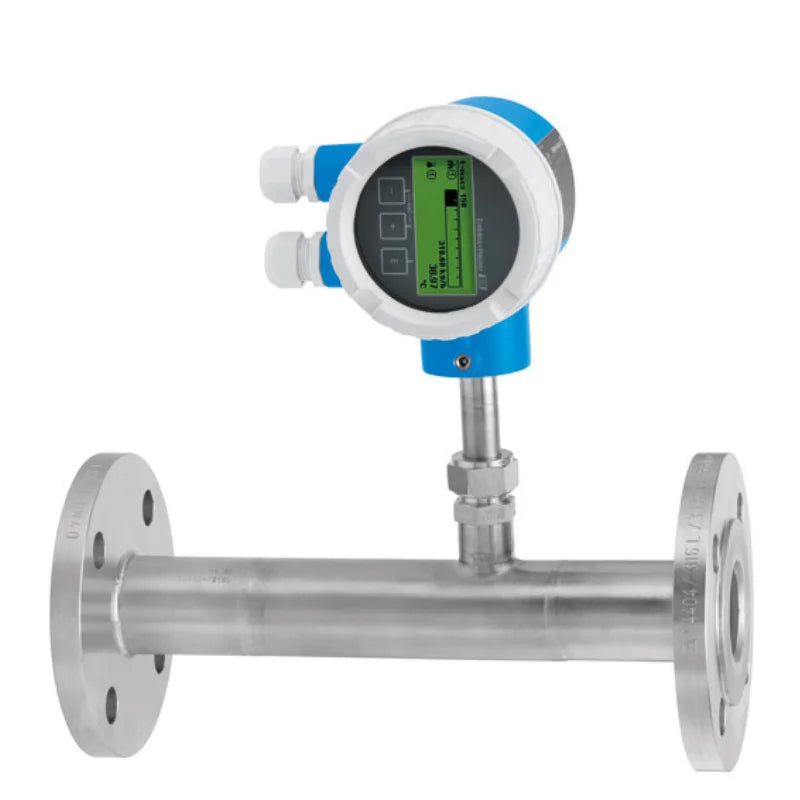

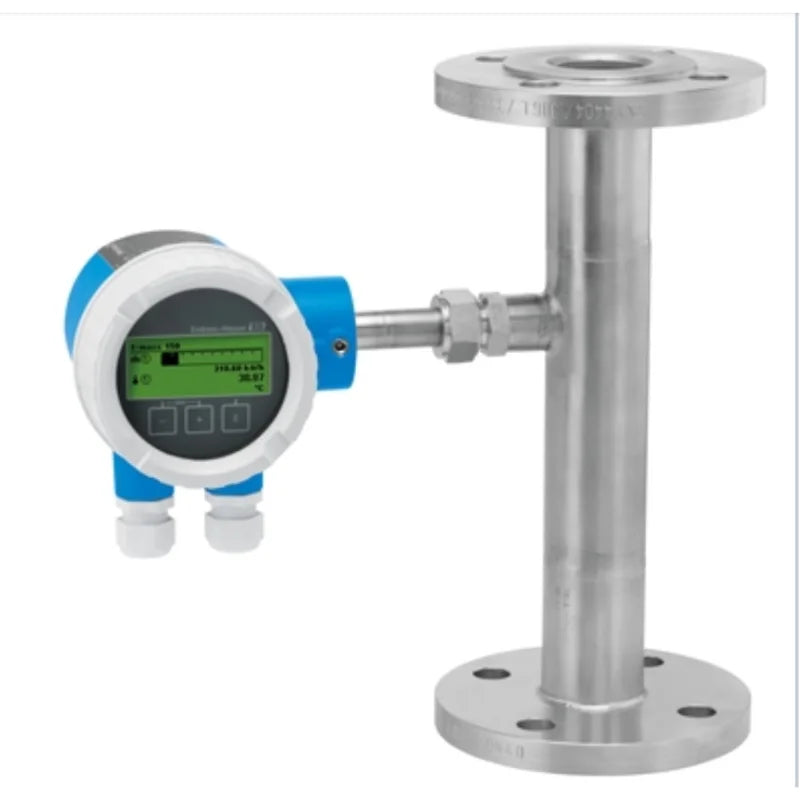

Endress+Hauser Proline t-mass A150 thermal mass flowmeter is a flowmeter for cost-effective measurement and easy monitoring of utility gases.
Specs at a glance
* Max. measurement error 3 % o.r. 4 % o.r. 5 % o.f.s. (depending on chosen option of ordering feature "Calibration flow") * Measuring range 0.5 to 910 kg/h (1.1 to 2002 lb/h) 0.5 to 1365 kg/h (1.1 to 3003 lb/h) (for air, depending on chosen option of ordering feature "Calibration flow") * Medium temperature range –40 to +100 °C (–40 to +212 °F) * Max. process pressure PN 40, Class 300 * Wetted materials Transducer: 1.4404 (316L) Insertion tube: 1.4404 (316L) Measuring tube: 1.4404 (316L); 1.4435 (316L) Connection: 1.4404 (F316/F316L); 1.4404 (316L); 1.4435 (316L)
Field of application
The t-mass A 150 inline device is specially designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at subetering applications. its 4-wire technology is contained within a rugged compact aluminum housing. It is orderable either with display or as a blind version. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.
* Measuring principle is characterized by a high operable flow range and direct mass flow measurement * Suitable for air, nitrogen, carbon dioxide and argon in small line sizes. Device properties * Inline version: nominal diameter DN 15 to 50 (1/2 to 2") * Process pressure up to PN 40, Class 300 * A variety of process connections available * Device in compact version with DC 24 V power supply * 4-20 mA HART, pulse/frequency/switch output * Compact and robust transmitter
Benefits
* Suitable for air, nitrogen, carbon dioxide and argon in small line sizes * Optimal process monitoring – easy measurement even at low pressures and flow velocities * Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free * Reliable flow trending – multivariable measurement * Fast and efficient commissioning – guided operating menus * High plant availability – self-diagnostics and error monitoring * Automatic recovery of data for servicing
Specification
Measuring Principle
Thermal
Product Headline
The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in small line sizes.
Sensor Features
Optimal process monitoring – easy measurement even at low pressures and flow velocities. Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free. Reliable flow trending – multivariable measurement. Inline version: DN 15 to 50 (½ to 2"). Process pressure up to PN 40, Class 300. A variety of process connections available.
Transmitter Features
Fast and efficient commissioning – guided operating menus. High plant availability – self‐diagnostics and error monitoring. Automatic recovery of data for servicing. Device in compact version with DC 24 V power supply. 4-20 mA HART, pulse/frequency/switch output. Compact and robust transmitter.
Mass flow, temperature, corrected volume flow, FAD volume flow
Max. Measurement Error
3 % o.r. 4 % o.r. 5 % o.f.s. (depending on chosen option of ordering feature "Calibration flow")
Measuring Range
0.5 to 910 kg/h (1.1 to 2002 lb/h) 0.5 to 1365 kg/h (1.1 to 3003 lb/h) (for air, depending on chosen option of ordering feature "Calibration flow")
Max. Process Pressure
PN 40, Class 300
Medium Temperature Range
–40 to +100 °C (–40 to +212 °F)
Ambient Temperature Range
–40 to +60 °C (–40 to +140 °F)
Transmitter Housing Material
AlSi10Mg, coated
Degree Of Protection
IP66/67, type 4X enclosure
Display/Operation
4‐line display with push Buttons Configuration via local display and operating tools possible
Outputs
4‐20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs
Status input
Digital Communication
HART
Power Supply
DC 18 to 30 V
Hazardous Area Approvals
ATEX, IECEx, cCSAus
Metrological Approvals And Certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Pressure Approvals And Certificates
PED, CRN
