| Model Number |

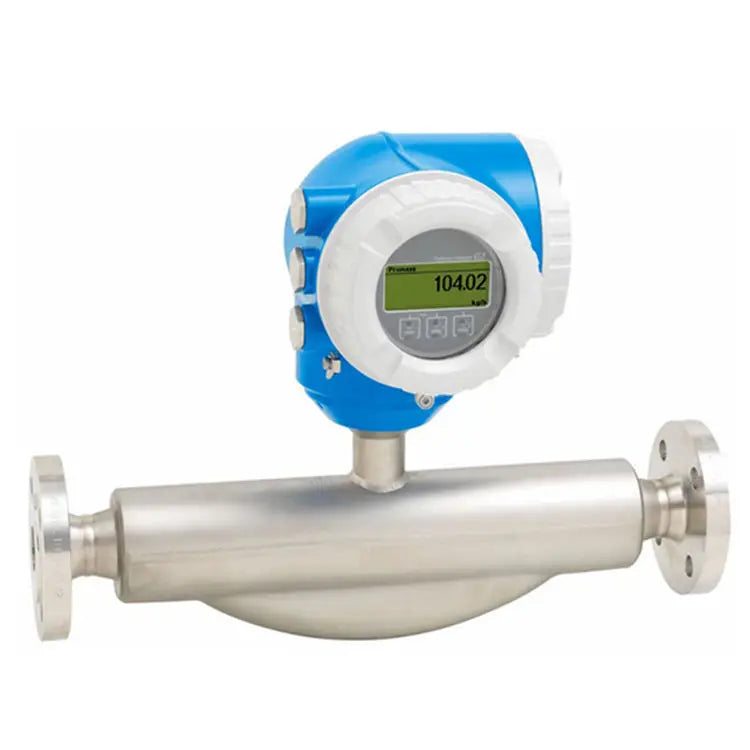

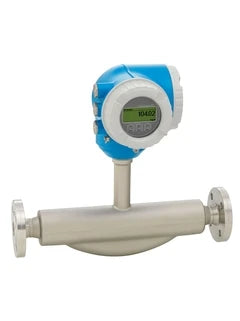

Promass F 300 |
| Measuring principle |
Coriolis |
| Product headline |
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. |
| Sensor features |
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement
(flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to
250 (³⁄₈ to 10"). |
| Transmitter features |
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and
variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. |
| Nominal diameter range |
DN 8 to 250 (⅜ to 10") |
| Wetted materials |
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304) |
| Measured variables |
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Max. measurement error |
Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³ |
| Measuring range |
0 to 2 200 000 kg/h (0 to 80 840 lb/min) |
| Max. process pressure |
PN 100, Class 600, 63K |
| Medium temperature range |
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58 to +464 °F)
High temperatur option: –50 to +350 °C (–58 to +662 °F)
Option: –196 to +150 °C (–320 to +302 °F) |
| Ambient temperature range |
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F) |
| Sensor housing material |
Standard: 1.4301 (304)
Option: 1.4404 (316/316L) |
| Transmitter housing material |
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design |
| Degree of protection |
Compact version: IP66/67, type 4X enclosure.
External WLAN antenna: IP67
IP69 |
| Display/Operation |
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available |
| Outputs |
3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output |
| Inputs |
Status input
4-20 mA input |
| Digital communication |
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power supply |
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Hazardous area approvals |
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC |
| Product safety |
CE, C-tick, EAC marking |
| Functional safety |
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates |
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
(TÜV SÜD attestation)
MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids)
NTEP (Liquids other than water, LPG, cryogenic liquids)
MC (Liquids other than water, gases, cryogenic liquids)
MI-002, PTB |
| Marine approvals and certificates |
LR approval, DNV approval, ABS approval, BV approval, CCS approval |
| Pressure approvals and certificates |
PED, CRN, AD 2000 |
| Material certificates |
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK |
| Hygienic approvals and certificates |
3-A, EHEDG, cGMP |
