[shortdesc]
- 24 Ports, Network Advantage, Modular Uplinks.
[/shortdesc]
[properties]
| Properties |
Cisco C9300X-24Y-A Switch |
| Description |
Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
| Product Family |
Cisco Catalyst 9300 Series Switches |
| Product Type |
Switch |
[/properties] [specifications]
| Specifications |
C9300X-24Y-A |
| Product Family Configurations (Catalyst 9300X |
| Modular Uplinks and Speeds |
10G, 25G, 40G, mGig and 100G |
| Stacking Bandwidth Support |
Stackwise-1T
(480G when stacking with Catalyst 9300 model |
| mGig Density |
48x 10G |
| Cisco StackPower |
48x 10G |
| Cisco StackPower |
✓ (Larger Power Budget |
| HW-Based Ipsec |
Up to 100G Ipsec (Need to order HSEC Key for IPsec Feature. |
| App hosting Capacity |
✓ (2x hosting resources over Catalyst 9300 models |
| Cisco C9300X-24Y-A Switch Configurations |
| Total 10/100/1000, Multigigabit copper or SFP Fiber |
24 port 25G/10G/1G SFP28 |
| Uplink Configuration |
Modular Uplinks |
| Default AC power supply |
715W AC |
| Primary Power Supply |
PWR-C1-715WAC-P |
| Default or Upgrade |
Default |
| Available PoE |
No POE |
| With 350W Secondary PS |
No POE |
| With 715W secondary PS |
No POE |
| With 1100W Secondary PS |
No POE |
| With 1900W Secondary PS |
No POE |
| Bandwidth specifications - C9300X-24Y |
| Switching capacity |
2,000 Gbps |
| Switching capacity with stacking |
3,000 Gbps |
| Forwarding rate |
1488 Mpps |
| Forwarding rate with stacking |
2232 Mpps |
| General Specifications |
| Dimensions (H x W x D inches |
Chassis only: 1.73 x 17.5 x 17.6
W/ Default Power Supply: 1.73 x 17.5 x 19.2
W/ 1100W Power Supply: 1.73 x 17.5 x 20.7 |
| Dimensions (H x W x D Cms |
Chassis only: 4.4 x 44.5 x 44.7
W/ Default Power Supply: 4.4 x 44.5 x48.8
W/ 1100W Power Supply: 4.4 x 44.5 x 52.6 |
| Weight (with default power supply |
Pounds: 16.2
Kilograms: 7.35 |
| Mean Time Between Failures – MTBF (hours |
249,350 |
[/specifications] [accesories] [/accesories]

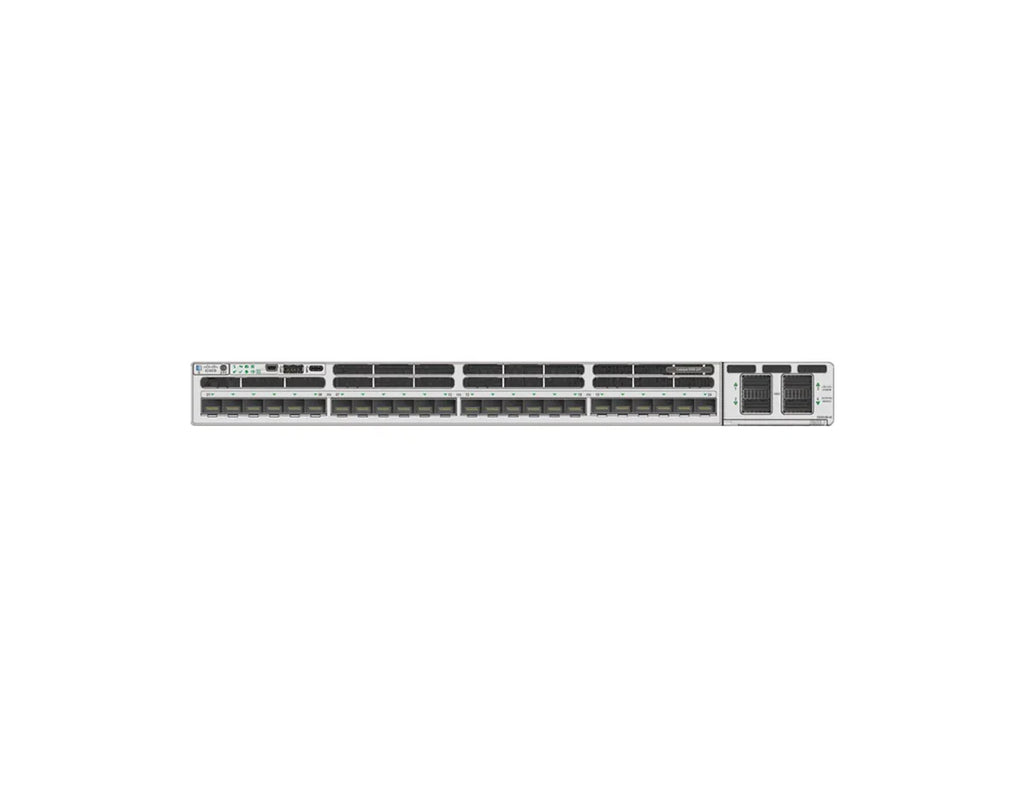

Cisco Catalyst C9300X-24Y-A Switch
The Cisco Catalyst C9300X-24Y-A Switch is a high-performance, scalable solution designed for enterprise environments that require advanced security, high-speed connectivity, and flexible network management. Featuring 24 Multigigabit Ethernet ports and support for 10G/25G uplinks, this Layer 3 switch is ideal for powering connected devices such as IP phones, cameras, and access points while providing fast and reliable data transfer. The C9300X-24Y-A integrates cutting-edge security features with flexible uplink options, ensuring your network is prepared for future growth and increased demand.
Key Features:
-
24 x Multigigabit Ethernet Ports: Supports multiple speeds (100M, 1G, 2.5G, 5G, 10G per port, delivering high-speed and adaptable network performance.
-
Modular Uplinks: Offers 10G/25G uplink options, providing flexibility and scalability for growing network needs.
-
Advanced Layer 3 Routing: Includes support for OSPF, EIGRP, and BGP, facilitating sophisticated routing, traffic management, and segmentation.
-
StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
-
Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high network performance.
-
Comprehensive Security: Features MACsec encryption and advanced access control lists (ACLs to safeguard your network against unauthorized access.
Technical Overview:
-
Recommended for: Enterprise environments, large campuses, and data centers requiring scalable network infrastructure.
-
Ports: 24 x Multigigabit Ethernet ports (100M, 1G, 2.5G, 5G, 10G with modular uplinks supporting 10G/25G.
-
Switching Capacity: 480 Gbps.
-
Forwarding Rate: 357.14 Mpps.
-
Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
-
Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center for comprehensive network automation and monitoring.
-
Licensing: Network Advantage.
-
Security: MACsec encryption and advanced ACLs for enhanced security.
-
Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300X-24Y-A datasheet.
