[shortdesc]
5.4kVA / 4.8kW, Double-Conversion Online, Tower 208V, 2x L6-20R + 2x L6-30R, Embedded Network Management Card 3, SmartSlot
[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SRT5KXLT |
| Product Type |
Smart-UPS On-Line, Double Conversion |
| Form Factor |
Tower (Rackmount with kit |
| Dimensions (H x W x D |
17.008" x 5.1" x 28.3" (432 x 130 x 719 mm |
| Weight |
123 lb (55.79 kg |
| Color |
Black |
| Number of Rack Units |
— (Rackmount kit required |
| Cable Length |
10 ft (3.05 m |
| Cooling |
— |
[/properties]
[specifications]
| Capacity |
5400 VA / 4800 W |
| Input Voltage |
208 V (other: 240 V • Adjustable: 100–275 V (half load |
| Input Connection Type |
NEMA L6-30P |
| Input Frequency |
40–70 Hz auto-sensing |
| Output Voltage |
208 V (other: 240 V |
| Output Connections |

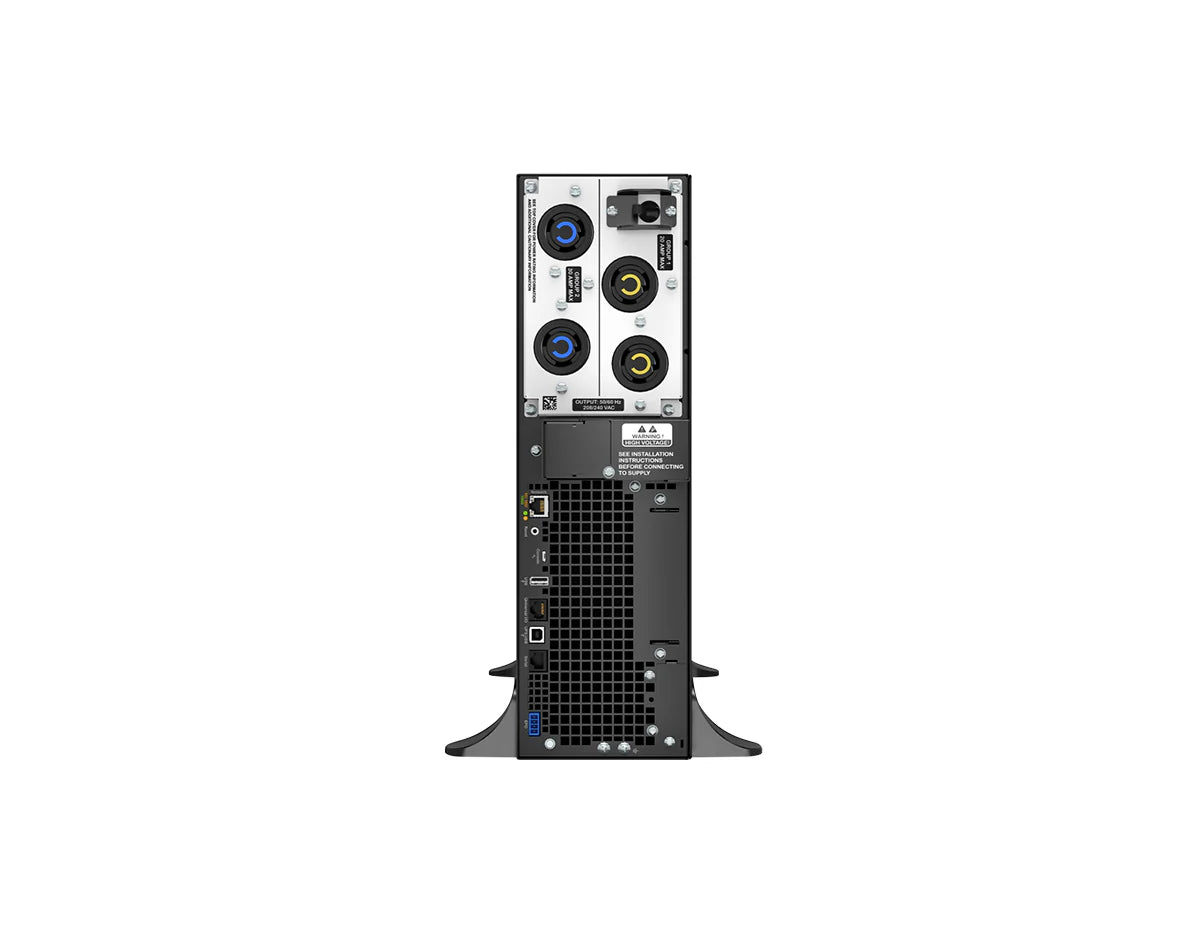

2 × NEMA L6-20R, 2 × NEMA L6-30R |
| Waveform Type |
Sine wave |
| Topology |
Double Conversion On-Line |
| Transfer Time |
0 ms (on-line |
| Bypass Type |
Internal Bypass (Automatic and Manual |
| Crest Factor |
3:1 |
| Harmonic Distortion |
<2% |
| Battery Type |
Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated |
| Extendable Runtime |
Yes |
| Surge Energy Rating |
480 J |
| Acoustic Noise |
55 dBA |
| Thermal Dissipation |
1047 BTU/h |
| Operating Temperature |
0–40 °C (32–104 °F |
| Operating Humidity |
0–95% non-condensing |
| Altitude |
0–10,000 ft operating |
| Communications |
USB compatible, EPO, Audible/visible alarms, Pre-installed Network Management Card 3, 1 free SmartSlot |
| Certifications |
ENERGY STAR V2.0 (USA, NOM |
[/specifications]
[accesories]
| Removable Support Feet |
Included in the box |
| Temperature Probe |
Included in the box |
| USB Cable |
Included in the box |
| Documentation |
CD with software, Documentation CD, Installation guide, Warranty card |
| Web/SNMP Management Card |
Pre-installed in the unit |
[/accesories]
Overview

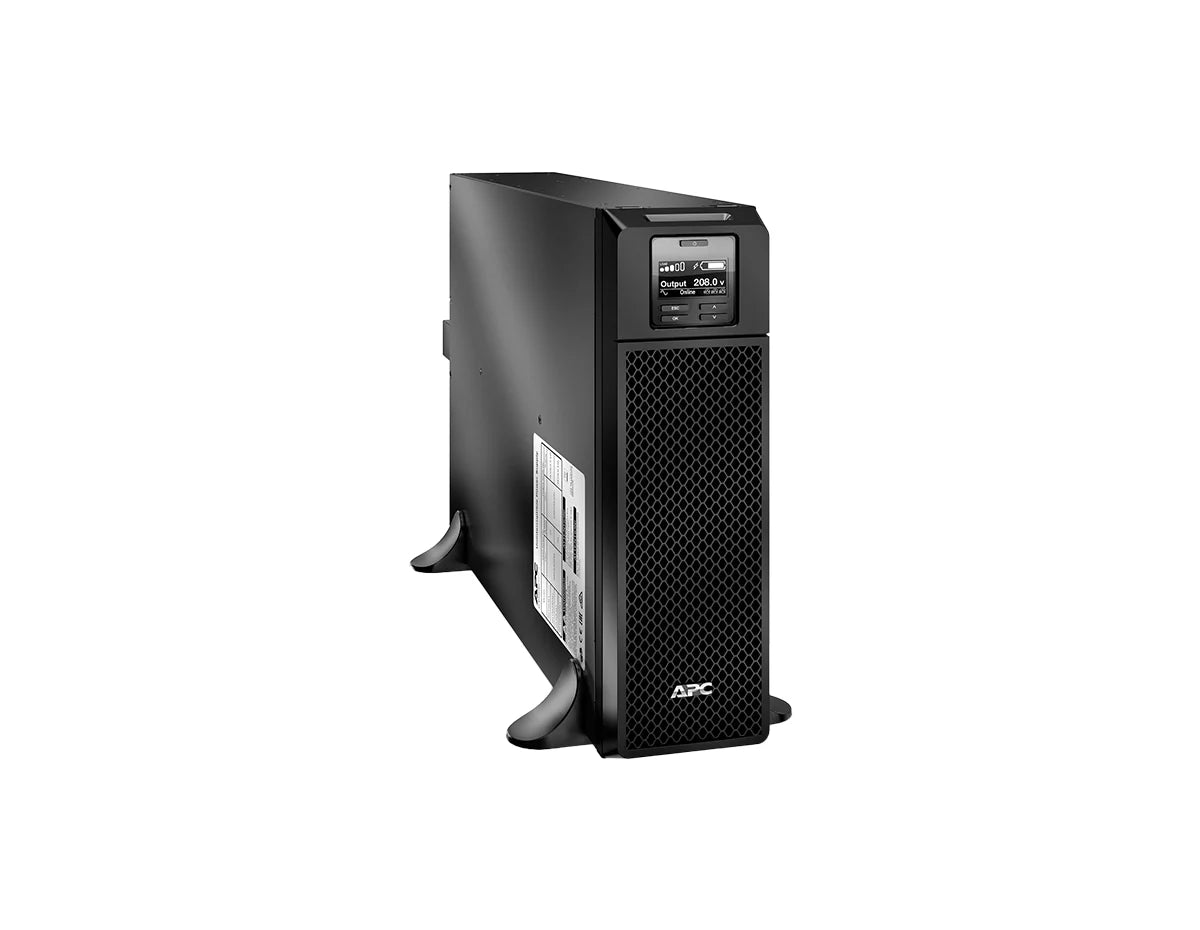

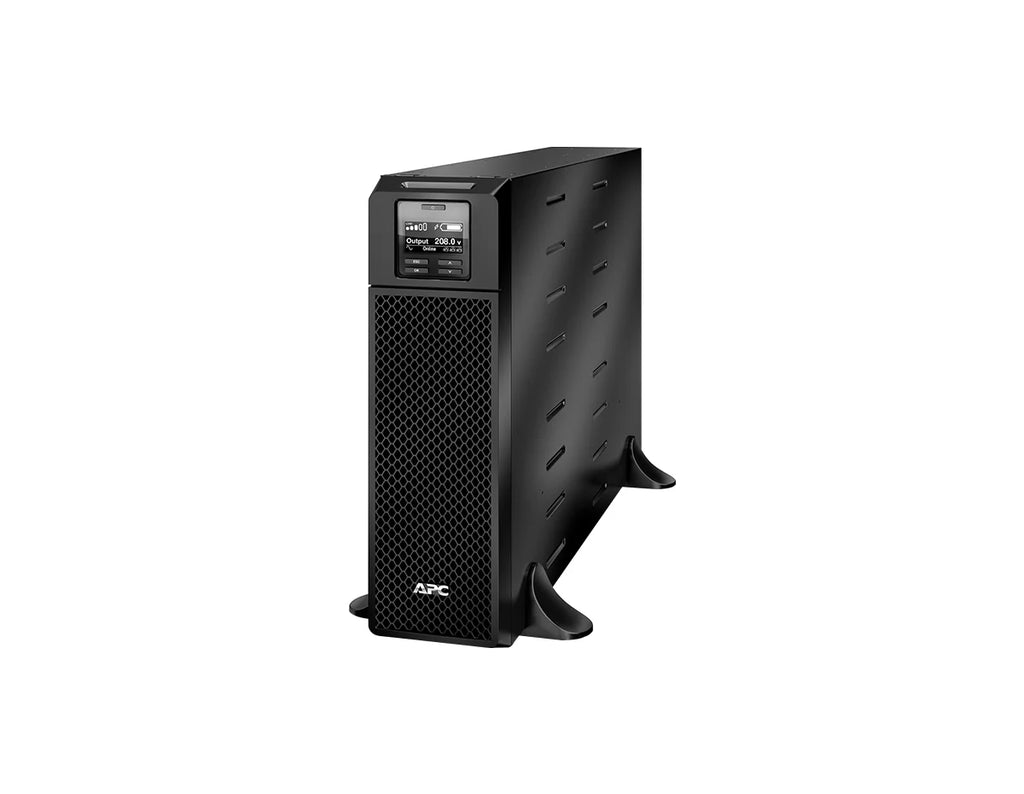

The APC Smart-UPS On-Line SRT5KXLT delivers 5400VA / 4800W of continuous, high-density power in a robust tower design. With double-conversion online topology, pure sine wave output, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards critical servers, storage, and network hardware on 208V infrastructures while enabling advanced remote visibility and control.
Key Features & Benefits
-
Double-Conversion Online: Continuous power conditioning for stable, clean sine wave output.
-
208V Output with Flexible Outlets: 2x NEMA L6-20R and 2x NEMA L6-30R support diverse loads.
-
Embedded Network Management Card 3: Enables remote monitoring plus environmental insights.
-
Internal Bypass: Automatic and manual bypass help maintain uptime during anomalies.
-
Scalable Runtime: Supports extended runtime configurations with external battery options.
Technical Deep Dive
Double-conversion architecture converts incoming AC to DC and back to AC, isolating equipment from sags, surges, and harmonics. This ensures the UPS always delivers a tightly regulated sine wave, synchronized at 50/60 Hz within tolerance.
Power distribution and connectivity include a 208V output with two L6-20R and two L6-30R receptacles, plus an L6-30P input for straightforward deployment. The unit integrates an Embedded Network Management Card 3 for secure remote access and environmental monitoring, and a SmartSlot for additional expansion.
Operational resilience is reinforced by an internal automatic/manual bypass, 1.5-hour typical recharge profile, and intelligent alarms prioritized by severity, helping teams respond quickly to events.
Ideal Applications
- Enterprise servers and storage stacks
- Core and distribution network devices
- Industrial control systems requiring 208V
- Edge and branch environments needing remote oversight
Frequently Asked Questions (FAQs
Q1: How is the SRT5KXLT installed?
A: It is a tower model with removable support feet; rack-mounting is possible with the appropriate kit. Power input uses NEMA L6-30P and outputs are 2x L6-20R and 2x L6-30R.
Q2: What performance and runtime should I expect?
A: The UPS delivers 5400VA / 4800W of double-conversion power at 208V. Runtime depends on load and any attached external battery packs; consult the runtime graph for exact values.
Q3: How is it managed?
A: An embedded Network Management Card 3 provides remote monitoring and environmental data. The unit also offers a SmartSlot for expansion and audible/visual alarms prioritized by severity.
