[shortdesc]750VA / 500W, Line-Interactive Tower, 6x NEMA 5-15R Outlets, Pure Sine Wave Output, AVR, LCD Display, SmartConnect Ethernet Port[/shortdesc]
[properties]
| Brand |
APC by Schneider Electric |
| Model |
SMT750CUS |
| Product Type |
Smart-UPS, Line-Interactive, Tower |
| Form Factor |
Tower |
| Dimensions (H x W x D |
6.3" x 5.4" x 14.5" (16.1 x 13.8 x 36.9 cm |
| Weight |
27.6 lb (12.5 kg |
| Color |
Black |
| Number of Rack Units |
0U (Tower only |
| Cooling |
Not specified |
[/properties]
[specifications]
| Capacity |
750 VA / 500 W |
| Input Voltage |
120 V (other: 110 V, 125 V • Adjustable range: 75–154 V |
| Input Connection Type |
NEMA 5-15P |
| Input Frequency |
50/60 Hz ±3 Hz, auto-sensing |
| Output Voltage |
120 V (other: 110 V, 125 V |
| Output Connections |
6 × NEMA 5-15R |
| Waveform Type |
Sine wave |
| Topology |
Line Interactive |
| Transfer Time |
6 ms typical, 10 ms maximum |
| Battery Type |
Lead-Acid |
| Battery Recharge Time |
3 hours |
| Replacement Battery |
RBC48 |
| Battery Charge Power |
49 W rated |
| Surge Energy Rating |
Not specified |
| Acoustic Noise |
Not specified |
| Operating Temperature |
0°C to 40°C (32°F to 104°F |
| Operating Humidity |
0–95% |
| Altitude |
0–10,000 ft operating |
| Communications |
SmartConnect Ethernet port, SmartSlot, LCD, Alarms |
| Certifications |
cULus, ENERGY STAR V2.0 (USA, TAA compliant |
| Warranty |
3 Years |
[/specifications]
[accesories]
| CD with software |
Included in the box |
[/accesories]
Overview

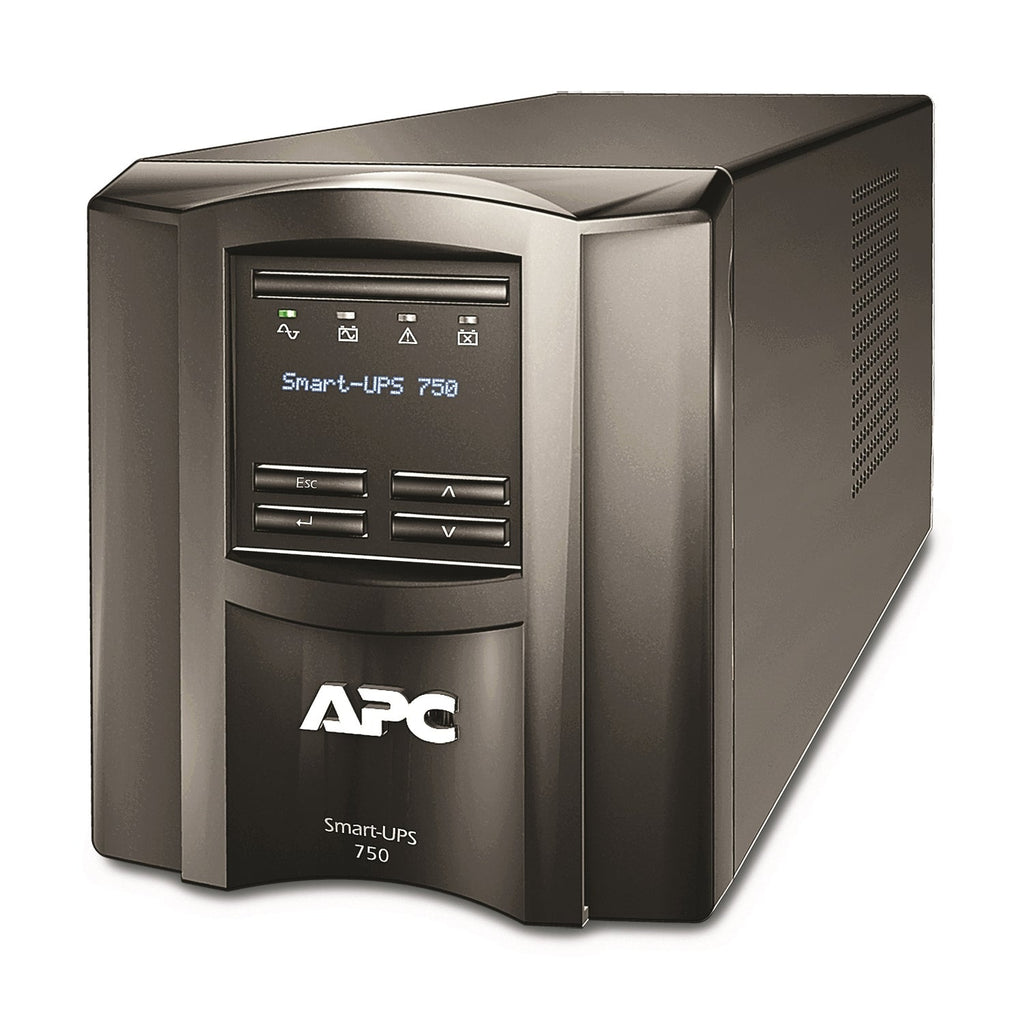

The APC Smart-UPS SMT750CUS is a 750VA / 500W line-interactive tower UPS designed to deliver reliable backup power and superior power quality for servers and network hardware. Featuring Automatic Voltage Regulation (AVR, sine wave output, and an LCD interface, it ensures consistent uptime and system visibility. With SmartConnect Ethernet and SmartSlot expandability, this UPS offers advanced monitoring and management capabilities in a compact tower design.
Key Features & Benefits
-
Line-Interactive Topology: Automatically stabilizes voltage fluctuations, reducing unnecessary battery use.
-
Pure Sine Wave Output: Provides clean and stable power for sensitive IT equipment and network devices.
-
Automatic Voltage Regulation (AVR: Corrects high and low voltages without depleting the battery.
-
SmartConnect Port: Enables remote monitoring and proactive maintenance through cloud connectivity.
-
LCD Control Panel: Offers intuitive visibility into UPS status, alarms, and configuration options.
-
6 NEMA 5-15R Outlets: Provides ample connectivity for small to medium IT loads.
-
ENERGY STAR® Certified: Recognized for energy efficiency to reduce operational costs.
Technical Deep Dive
The SMT750CUS leverages line-interactive UPS technology, which automatically adjusts for input voltage fluctuations. This ensures reliable performance during common power disturbances without switching to battery, preserving battery life for critical events.
Its sine wave output guarantees compatibility with sensitive network hardware, ensuring clean power delivery. With 6 NEMA 5-15R outlets, the UPS supports multiple devices simultaneously while maintaining stable performance. The AVR function further enhances uptime by protecting connected loads from sags and surges in the utility supply.
SmartConnect Ethernet integration allows IT teams to remotely monitor health, receive alerts, and perform proactive maintenance through a secure cloud portal. Coupled with SmartSlot expandability, the UPS can accommodate additional management or monitoring cards to adapt to evolving network needs.
Ideal Applications
- Small to medium business servers and storage
- Network switches, routers, and security appliances
- Edge IT and branch office environments
- Retail and healthcare systems requiring reliable uptime
- Critical workstations and point-of-sale systems
Frequently Asked Questions (FAQs
Q1: How is the SMT750CUS installed?
A: This UPS is designed for tower deployment, with a compact footprint that fits easily into office or network environments without requiring a rack.
Q2: What performance can I expect?
A: The SMT750CUS delivers 750VA / 500W of backup power with pure sine wave output. Runtime varies by load level; consult APC runtime charts for detailed data. Actual performance depends on battery age, environment, and load type.
Q3: How can the UPS be managed?
A: The UPS includes a SmartConnect Ethernet port for secure cloud monitoring, an LCD panel for local control, and a SmartSlot for optional expansion cards to enhance management capabilities.
