[shortdesc]
- Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 3
[/shortdesc]
[properties]
| Properties |
HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch (JL262A) |
| Description |
Switch, L3, managed, 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink), rack-mountable, PoE+ (370 W) |
| Product Family |
2930F Switch Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 PoE+ ports |
| 4 SFP uplink slots |
| Additional ports and slots |
1x Out-of-band Ethernet management port
1x dual-personality (RJ-45 or USB micro-B) serial console port |
| Electrical characteristics |
| Input Voltage |
100 - 127 / 200 - 240 VAC, rated |
| Maximum Heat Dissipation |
293 BTU/hr (309.1 kJ/hr) |
| Power Consumption (Maximum) |
459 W |
| PoE Power |
370 W PoE+ |
| Dimensions |
17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height) |
| Weight |
9.83 lb (4.46 kg) |
[/properties]
[specifications]
| Specifications |
2930F-JL262A |
| Memory and processor |
Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM;
Packet buffer size: 12.38 MB (4.5 MB Ingress/7.875 MB Egress),
4 GB eMMC |
| Performance |
| 1000 Mb Latency |
< 3.8 µs |
| Throughput |
up to 77.4 Mpps |
| Switching capacity |
104 Gbps |
| Management |
HPE Aruba Networking Management Software (AirWave); Central Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management |
[/specifications]

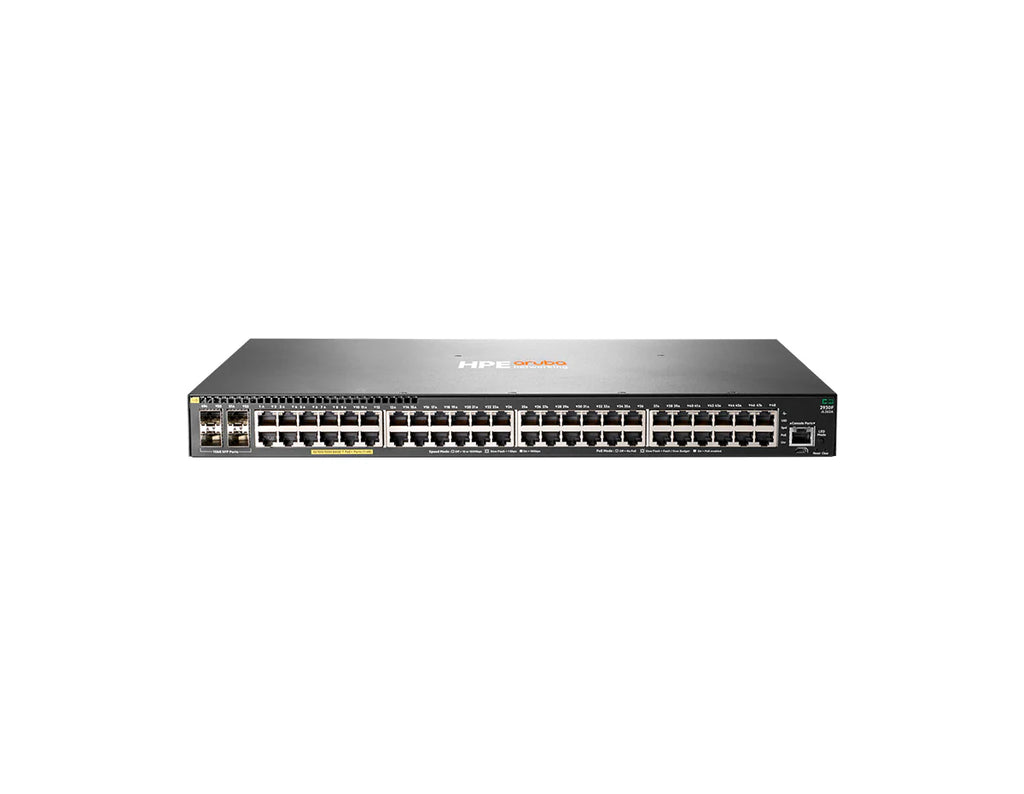

HPE Aruba 2930F 48G PoE+ 4SFP Switch (JL262A)
The HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch (JL262A) is a high-performance, scalable switch designed to provide reliable power and network connectivity for enterprise and SMB environments. With 48 Gigabit PoE+ ports, this switch delivers both power and data connectivity to devices such as IP phones, cameras, and wireless access points. It also features 4 SFP uplink ports for fiber connectivity, ensuring network scalability. The Aruba 2930F series supports advanced Layer 3 features, including routing and robust security, making it ideal for campus and branch networks.
Key Features:
-
48 x Gigabit PoE+ Ports: Delivers power and data with a 370W power budget, eliminating the need for separate power supplies.
-
4 x 1G SFP Uplink Ports: Provides flexible fiber uplink options for enhanced network scalability and redundancy.
-
Layer 3 Feature Set: Supports Access OSPF, static and RIP routing, ACLs, and sFlow with no software licensing required.
-
Flexible Management: Managed via HPE Aruba Networking Central, CLI, SNMP, or web-based GUI for easy control and monitoring.
Technical Overview:
-
Recommended for: Enterprise and SMB networks requiring high-density PoE+ support and fiber uplinks.
-
Ports: 48 x Gigabit PoE+ ports, 4 x SFP uplink ports.
-
Power: Supports PoE+ with a 370W power budget for powering connected devices.
-
Management: Managed via HPE Aruba Networking Central, CLI, SNMP, and web-based GUI for comprehensive network control.
-
Form Factor: 1U rack-mountable design for efficient deployment.
