[shortdesc]
- Cisco Catalyst C1200-24FP-4G is a 24-port Gigabit PoE+ managed switch with a 375 W PoE budget, 4 × 1G SFP uplinks, Layer 3 static routing, and simple management via Cisco Business Dashboard, mobile app, or web UI—built for reliable SMB access switching.
[/shortdesc]
[properties]
| Property |
Details |
| Model Number |
C1200-24FP-4G |
| Product Series |
Cisco Catalyst 1200 Series |
| Switch Type |
Managed Layer 2 with Layer 3 static routing |
| Total Ports |
28 |
| Downlink Ports |
24 × 10/100/1000 RJ-45 (PoE+ |
| Uplink Ports |
4 × 1G SFP |
| PoE Budget / Per-Port Max |
375 W total / up to 30 W per port (IEEE 802.3af/at |
| Switching Capacity / Forwarding |
56 Gbps / 41.66 Mpps |
| Management |
Cisco Business Dashboard (embedded probe, Cisco Business mobile app, Web UI (HTTP/HTTPS, CLI (SSH/Telnet, SNMP v1/v2c/v3, Cisco Network Plug and Play |
| Security |
802.1X (authenticator, IPv4/IPv6 ACLs, DHCP snooping, DoS prevention, port security, storm control |
| Form Factor |
Rack-mountable, 1RU |
| Dimensions (W × D × H |
445 × 345 × 44 mm (17.5 × 13.59 × 1.73 in |
| Unit Weight |
4.6 kg (10.14 lb |
| Power Input |
Internal 100–240 VAC, 50/60 Hz |
| Operating Temperature |
−5 to 50 °C (23 to 122 °F |
| Cooling / Acoustics |
1 fan; ~34.8 dBA (typical at 25 °C |
[/properties]
[specifications]
| Specification |
Details |
| MAC Address Table |
8,000 entries |
| Packet Buffer |
1.5 MB (dynamically shared |
| VLANs |
Up to 255 active VLANs; Voice VLAN; Auto Surveillance VLAN; GVRP/GARP |
| Layer 3 |
IPv4/IPv6 static routing; up to 32 static routes; up to 16 IP interfaces (SVIs |
| Link Aggregation |
IEEE 802.3ad LACP — up to 4 groups; up to 8 ports per group (16 candidates |
| Multicast |
IGMP snooping v1/v2/v3; IGMP querier |
| QoS |
8 hardware queues; 802.1p/DSCP classification & remarking; ingress policing; egress shaping |
| Jumbo Frames |
Up to 9000 bytes (default MTU 2000 bytes |
| Console / USB |
RJ-45 console and USB-C console/file management |
| LEDs |
System, Link/Activity, PoE, Speed |
| MTBF |
698,220 hours (at 25 °C |
| Power Consumption (max |
~449.7 W (with PoE load |
| Compliance |
UL 62368, CSA C22.2, CE mark, FCC Part 15 Class A |
[/specifications]
[accesories]
| Accessory |
Details |
| CAB-CONSOLE-RJ45 |
Console cable, 6 ft, RJ-45 |
| CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= |
USB-C console cable |
| PWR-CLP |
Power cable restraining clip |
| RCKMNT-1RU-1K= |
19″ rack-mount kit for 24/48-port models |
[/accesories]

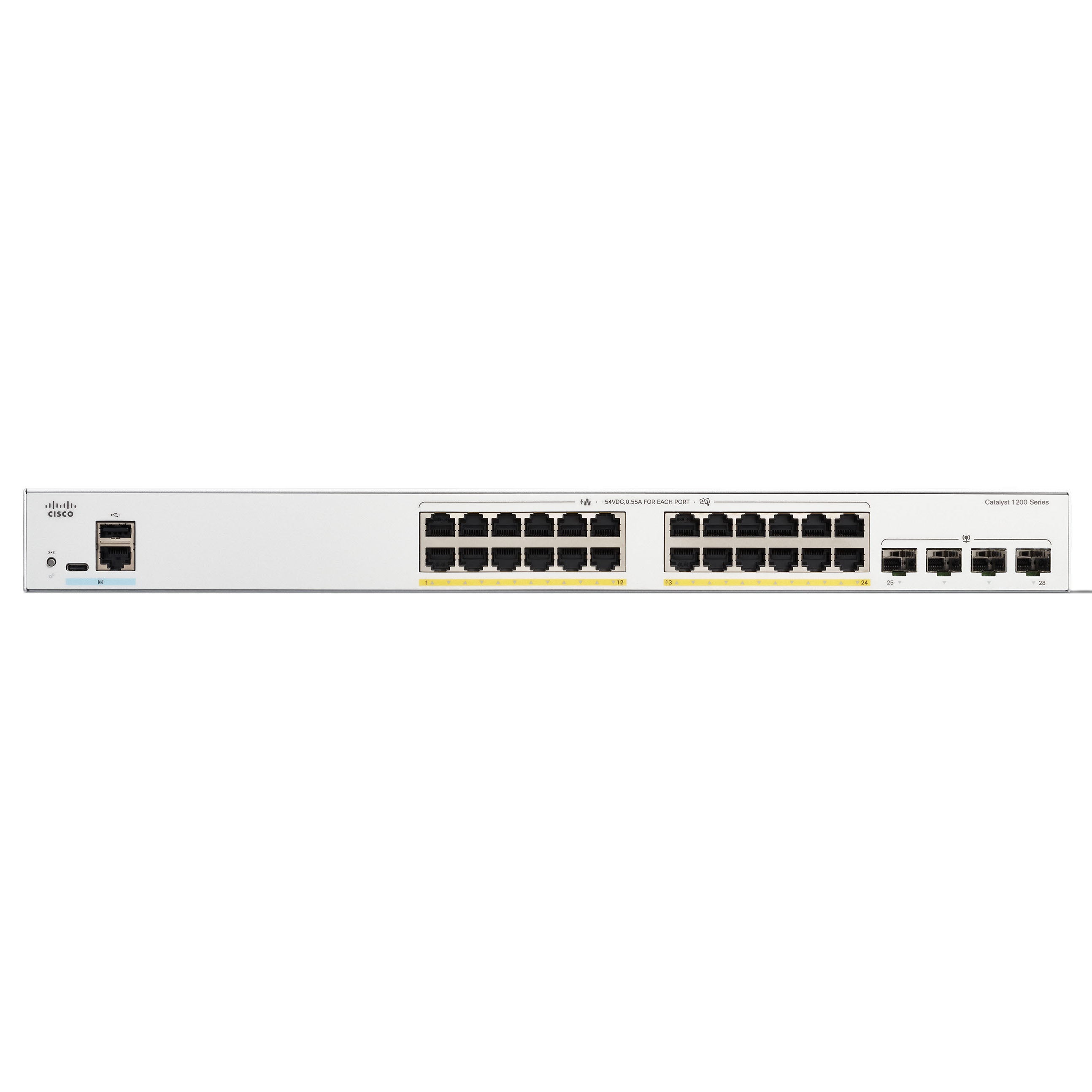

Cisco Catalyst C1200-24FP-4G 24-Port PoE+ Switch
The Cisco Catalyst C1200-24FP-4G is a PoE-ready, rack-mount switch designed for small and midsize networks that need reliable power and fiber uplinks in one platform. It delivers 24 × 1G access ports with a shared 375 W PoE+ budget and four 1G SFP uplinks on a non-blocking 56 Gbps fabric. Administration is straightforward via Cisco Business Dashboard (embedded probe, the Cisco Business mobile app, or the modern web interface, with optional CLI/SNMP for advanced workflows. With Layer 2 switching, Layer 3 static routing, robust QoS, and enterprise-grade security, the 24FP-4G segments, prioritizes, and protects traffic for IP phones, access points, cameras, and branch/core integration.
Key Features:
-
24 × PoE+ access + 4 × SFP uplinks: Power endpoints while using fiber for aggregation or WAN.
-
Wire-speed performance: 56 Gbps switching capacity and 41.66 Mpps forwarding.
-
Simple management: Cisco Business Dashboard/mobile app, web UI, CLI (SSH, SNMP, and PnP onboarding.
-
Layer 3 static routing: Route between VLANs with up to 32 static routes and 16 SVIs.
-
Enterprise security: 802.1X, IPv4/IPv6 ACLs, DHCP snooping, DoS prevention, port security.
-
Advanced QoS: 8 queues with 802.1p/DSCP classification, policing, and shaping.
-
Proven hardware design: 1RU chassis with active cooling (~34.8 dBA typical, designed for −5 to 50 °C operation.
Technical Overview:
-
Ports: 24 × 10/100/1000 RJ-45 (PoE+; 4 × 1G SFP uplinks.
-
MAC / VLANs: 8K MAC; up to 255 VLANs; Voice VLAN; Auto Surveillance VLAN; GVRP/GARP.
-
L3 & Multicast: IPv4/IPv6 static routing (32 routes, 16 SVIs; IGMP snooping v1/v2/v3 with querier.
-
LAG: LACP up to 4 groups, 8 ports/group (16 candidates.
-
QoS: 8 hardware queues; 802.1p/DSCP; ingress policing; egress shaping.
-
Frames & Buffer: Jumbo up to 9000 bytes (default MTU 2000; 1.5 MB shared buffer.
-
Management I/O: RJ-45 and USB-C console; HTTP/HTTPS; SSH/Telnet; SNMP.
-
Power & Thermal: ~449.7 W max with PoE load; internal 100–240 V AC; ~34.8 dBA acoustic.
-
Environment: −5 to 50 °C; 10–90% RH (non-condensing.
-
Physicals: 445 × 345 × 44 mm; 4.6 kg; rack-mount 1RU.
-
Compliance: UL/CSA, CE, FCC Class A.
