[shortdesc]
- MX80 Chassis
- with PTP and SyncE support
- 1 x Power supply
- 2 x Empty MIC slots
- 4 x 10GE XFP built-in ports
- Fan Tray with filter
- Power supply cable sold separately
[/shortdesc]
[properties]
| Properties |

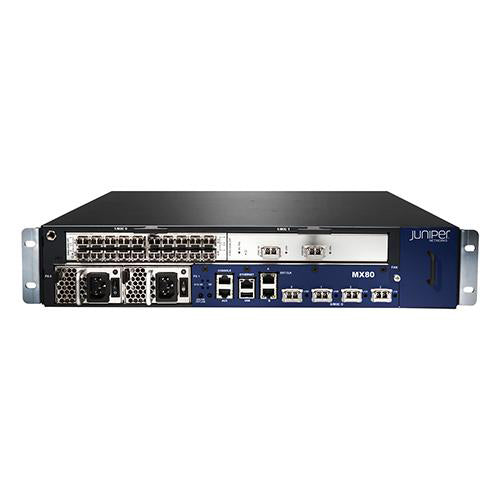

Juniper MX80BASE-P |
| Description |
MX80 Chassis, with PTP and SyncE support, 1 x Power supply, 2 x Empty MIC slots, 4 x 10GE XFP built-in ports, Fan Tray with filter, Power supply cable sold separately. |
| Product Family |
MX80 Series |
| Product Type |
Router |
| Interface Features |
| Maximum 1GbE |
80 |
| Maximum 10GbE |
8 |
| Maximum 40GbE |
NA |
| Maximum 100GbE |
NA |
| 10GbE DWDM |
NA |
| 100GbE DWDM |
NA |
| Ports |
4 10GbE fixed |
| Slots |
3 MIC slots (The MX80 has two front MIC slots and one rear MIC slot. The rear MIC slot only supports the MS-MIC.) |
| PDH |
Yes |
| Sonet/SDH |
Yes |
| Physical dimensions (W x D x H) |
| Fixed chassis |
17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm) |
| Modular chassis |
17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm) |
| Air filter |
0.25 in. (0.64 cm) x 18.43 in. 46.81 cm) x 3.35 in. (8.5 cm) |
| MIC |
6.25 in. (15.9 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm) |
| Dual-wide MIC |
12.5 in. (31.75 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm) |
| Fan tray |
2.75 in. (6.96 cm) x 20.5 in. 52.07 cm) x 3.35 in. (8.5 cm) |
| DC power supply |
2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm) |
| AC power supply |
2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm) |
| Weights |
| Fixed chassis |
Chassis with fan tray and power supplies: 28 lb (12.7 kg) |
| Modular chassis |
Chassis with fan tray, power supplies, and MICs: 30 lb (13.6 kg) |
| Air filter |
0.1 lb (0.05 kg) |
| MIC |
Maximum up to 1.2 lb (0.54 kg) |
| Dual-wide MIC |
1.9 lb (0.9 kg) |
| Fan tray |
2.3 lb (1.04 kg) |
| DC power supply |
2.6 lb (1.18 kg) |
| AC power supply |
2.6 lb (1.18 kg) |
| Weight (lb/kg) fully configured |
30 lb/13.7 kg |
| Mounting |
Front or center |
| Rack units |
2 |
| Systems per rack |
24 |
| Redundancy |
Power supplies and fans |
| Air flow |
Side to side [forced air] |
| Power (AC) |
100 to 240 V AC |
| Typical power draw (AC) |
365 W |
| Maximum output power |
500 W |
| AC input voltage |
Operating range: 90 to 264 VAC |
| AC input line frequency |
50 to 60 Hz (nominal) |
| AC system current rating |
6 A @ 110 VAC (7 A maximum per inlet at 90 VAC) or 3 A @ 220 VAC |
| AC system input power |
610 W |
[/properties][specifications]
| Specifications |
MX80BASE-P |
| System capacity |
80 Gbps |
| System throughput |
160 Gbps |
| Packet forwarding capacity |
55 to 60 Mpps |
| Per slot capacity |
20 Gbps |
| Slot orientation |
Horizontal |
| Built-in Routing Engine |
8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM |
| Number of cores |
1 core |
| Platform Features |
| Security |
Firewall filters/ACLs
DDoS—control plane
DDoS—FlowSpec
Stateless filters L2-L4
Stateful services* |
| Inline Services |
GRE reassembly
1:1 NAT*
Flow monitoring**
Video monitoring***
Lawful intercept
Mirroring |
| Service Card Supported Services |
CGNAT
J-Flow**
Ipsec****
Stateful firewall^
|
| Resiliency |
Fast restoration
Operation, Administration, and Maintenance (OAM) |
System
Virtualization |
Logical systems
Virtual router/switch
Enhanced SLA and queuing
Junos Fusion Edge (AD) |
| Automation |
Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit |
| Operating temperature |
32° to 104° F (0° to 40° C) |
| Humidity |
5% to 90% noncondensing humidity |
| Altitude |
13,000 ft (4,000 m) |
| Safety |
CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition,
Safety of Information Technology Equipment
EN 60825-1 Safety of Laser Products - Part 1: Equipment
Classification, Requirements, and User’s Guide
EN 60950 Safety of Information Technology Equipment |
| EMC |
AS/NZS 3548 Class A (Australia/New Zealand)
EN 55022 Class A Emissions (Europe)
FCC Part 15 Class A (USA)
VCCI Class A (Japan) |
| NEBS |
GR-63-Core:NEBS, Physical Protection
GR-1089-Core:EMC and Electrical Safety for Network Telecommunications Equipment |
| ETSI |
ETS-300386-2 Telecommunication Network Equipment
Electromagnetic Compatibility Requirements |
| Immunity |
EN 61000-3-2 Power Line Harmonics
EN 61000-3-3 Voltage Fluctuations and Flicker
EN 61000-4-2 ESD
EN 61000-4-3 Radiated Immunity
EN 61000-4-4 EFT
EN 61000-4-5 Surge
EN 61000-4-6 Low Frequency Common Immunity
EN 1000-4-11 Voltage Dips and Sags |
| Element Management |
Junos Space Platform and applications
J-Web Software graphical user interface |
| Policy Management |
Junos Scope
SRC Series Session and Resource Control Modules |
| Third-Party Management Applications |
HP, IBM, InfoVista, Intelliden, WANDL |
| SNMP |
SNMP v2/v3 bilingual agent support |
[/specifications][accesories]
| MICs |
| MIC-3D-8OC3-2OC12-ATM |
ATM MIC with SFP |
| MIC-3D-8DS3-E3/MIC-3D-8CHDS3-E3-B |
DS3/E3 MIC |
| MIC-3D-16CHE1-T1-CE |
Channelized E1/T1 Circuit Emulation MIC |
| MIC-3D-16CHE1-T1-CE-H |
Channelized E1/T1 Circuit Emulation MIC (H) |
| MIC-3D-20GE-SFP |
Gigabit Ethernet MIC with SFP |
| MIC-3D-20GE-SFP-E |
Gigabit Ethernet MIC with SFP (E) |
| MIC-3D-20GE-SFP-EH |
Gigabit Ethernet MIC with SFP (EH) |
| MIC-MACSEC-20GE |
Gigabit Ethernet MIC with 256b-AES MACsec |
| MIC-3D-2XGE-XFP |
10-Gigabit Ethernet MICs with XFP |
| MIC-3D-4OC3OC12-1OC48 |
SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-8OC3OC12-4OC48 |
SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-4CHOC3-2CHOC12 |
Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-8CHOC3-4CHOC12 |
Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-4COC3-1COC12-CE |
Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP |
| MIC-4COC3-1COC12-CE-H |
Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP (H) |
| MIC-3D-40GE-TX |
Tri-Rate MIC |
| MS-MIC-16G |
Multiservices MIC |
| MIC-3D-1OC192-XFP |
SONET/SDH OC192/STM64 MIC with XFP |
| JNP-MIC1 |
12-Port Multi-Rate MIC with QSFP+ |
| JNP-MIC1-MACSEC |
12-Port Multi-Rate MACsec MIC with QSFP+ |
| Midrange router upgrade licenses |
| MX-40-80-UPG-B |
Software upgrade for MX40 to MX80 |
| Junos OS |
| Junos-WW |
Worldwide |
| Junos OS |
USA |
| Software Licenses |
| S-MX80-ADV-R |
License to support full scale L3 route and
L3 VPN on MX80 |
| S-MX80-Q |
License Svc F/ MPC F/ Mx80 Series Routers Limited to 5g |
| S-MX80-SA-FP |
Subscriber Management Feature Pack
License |
| S-MX80-SSM-FP |
Subscriber Service Management
Feature Packet License (RADIUS/SRC
Series-based service activation and
deactivation) per service accounting
features for subscribers, MX80 |
[/accesories]
Discover the JUNIPER MX80BASE-P Router, a high-performance, compact solution designed for modern networking needs. It features a durable MX80 Chassis, supports Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE) for precise timing and synchronization, and includes a single power supply (cable sold separately). This router is versatile and scalable, with two empty MIC slots for customizable expansion and four built-in 10GE XFP ports for high-speed connectivity. Additionally, a fan tray with a filter ensures optimal operation in various environments. Ideal for service providers and enterprises, the MX80BASE-P Router delivers reliable, high-capacity networking.
