[shortdesc]24× Gigabit ports, 4× 10G SFP+ slots, 128 Gbps capacity, fanless, static routing, cloud-managed[/shortdesc]
[properties]
| Model |
TP-Link SG3428X |
| Product Type |
L2+ Managed Gigabit Switch |
| Ports |
24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots |
| Console Ports |
1× RJ45 Console Port; 1× Micro-USB Console Port |
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
95.23 Mpps |
| MAC Address Table |
16K |
| Packet Buffer |
12 MB |
| Jumbo Frame |
9 KB |
| Design |
Fanless, Rackmountable Metal Casing |
| Dimensions (W × D × H |
440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in |
| Weight |
5.5 lb |
| Power Supply |
100-240 V AC, 50/60 Hz |
| Max Power Consumption |
23.6 W (110 V/60 Hz |
| Heat Dissipation |
80.52 BTU/h (110 V/60 Hz |
| Operating Temperature |
0-45 °C (32-113 °F |
| Storage Temperature |
-40-70 °C (-40-158 °F |
| Operating Humidity |
10-90% RH non-condensing |
| Storage Humidity |
5-90% RH non-condensing |
| Certifications |
CE, FCC, RoHS |
[/properties]
[specifications]
| Quality of Service (QoS |
8 priority queues; 802.1p CoS/DSCP; SP, WRR, SP+WRR scheduling; Port/Flow-based rate limiting; QoS remark (802.1p, DSCP |
| L2 / L2+ Features |
128 IPv4/IPv6 interfaces; 48 IPv4/IPv6 static routes; ARP (512 dynamic, 128 static, Proxy ARP, Gratuitous ARP; DHCP Server, DHCP Relay (Interface/VLAN and L2 Relay; Link Aggregation; STP; Loopback Detection; 802.3x Flow Control; Mirroring |
| Multicast |
Supports 1000 IGMP groups (IPv4/IPv6; IGMP Snooping & Authentication; MVR; MLD Snooping; Multicast Filtering (256 profiles, 16 entries/profile |
| VLAN |
Max 4K VLANs; 802.1Q; MAC VLAN (30 entries; Protocol VLAN (Template 16, VLAN 16; Private VLAN; Voice VLAN; VLAN Mapping/Replace (VLAN VPN; GVRP |
| Security |
IP-MAC-Port Binding (512 entries; DHCP Snooping; ARP Inspection; DoS Defend; Port Security (up to 64 MAC/port; IPv4 Source Guard (100 entries & IPv6 Source Guard (100 entries; IPv6 ND Snooping/Detection |
| Access Control |
Time-based ACL; MAC, IP, IPv6, Combined & Packet Content ACLs; Policies for Mirroring, Redirect, QoS Remark, Rate Limit; ACL apply to Port/VLAN |
| Management |
Web GUI; CLI (console/telnet; SNMP v1/v2c/v3 with RMON; Omada App; Omada Cloud/Hardware/Software Controller; Zero-Touch Provisioning; LLDP/LLDP-MED; DHCP AutoInstall; Dual Image & Dual Configuration; CPU Monitoring; EEE; Cable Diagnostics; Password Recovery; SNTP; System Log |
| Advanced Features |
ERPS; 802.3ah OAM; DDM; sFlow; DLDP; L2PT; PPPoE ID Insertion |
| IPv6 Support |
Dual Stack; ICMPv6; IPv6 ACL; Static IPv6 Routing; IPv6 ND; DHCPv6 Client; Ping6/Traceroute6; IPv6 SNMP/SSH/SSL |
| MIBs |
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925; TP-Link private MIB |
[/specifications]
[accesories]
| Included in the Box |
SG3428X Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet |
| Recommended Module |
Use only one TL-SM5310-T module on this model (per vendor guidance |
[/accesories]
High-Bandwidth Switching with Silent Operation

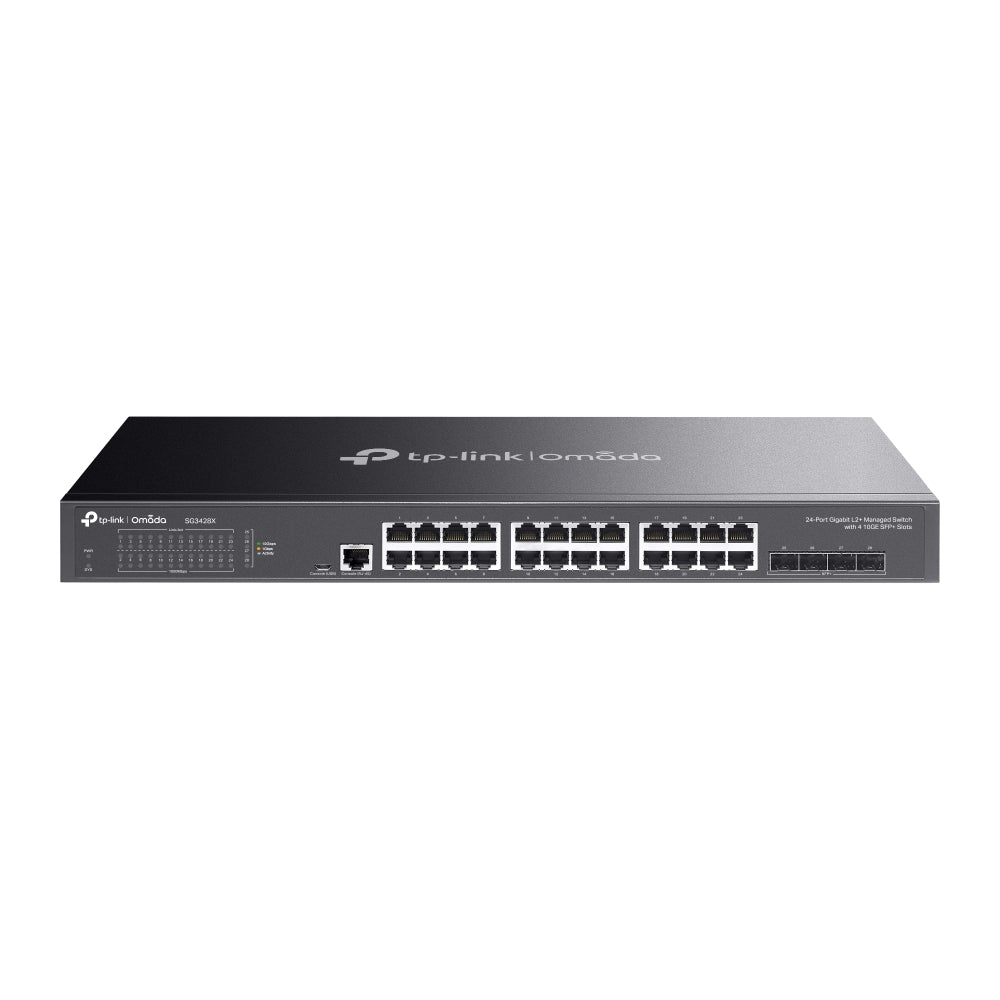

The TP-Link Omada SG3428X is a 24-port Gigabit L2+ managed switch with 4 high-speed 10G SFP+ slots, built for modern enterprise networks that need performance, scalability, and quiet efficiency. With centralized Omada SDN cloud management and a fanless metal chassis, it delivers robust networking power without noise.
Key Benefits & Features
-
10G Uplink Performance: Four SFP+ slots enable lightning-fast fiber or copper uplinks for seamless aggregation.
-
Silent, Reliable Design: Fanless architecture ensures noise-free operation ideal for office or branch deployments.
-
Advanced Layer 2+ Routing: Static routing optimizes internal traffic flow and reduces reliance on core routers.
-
Cloud & Local Management: Manage via Omada SDN Controller, Omada app, or traditional CLI/SNMP for flexible administration.
-
Enterprise-Grade Security: VLAN, ACL, QoS, IGMP Snooping, and DoS defense provide safe and optimized data handling.
Ideal Use Cases
- Medium-to-large offices seeking high-density Gigabit access with 10G uplinks
- Branch networks requiring silent, rackmountable switches for workspace environments
- Managed service providers delivering SDN-enabled deployments with remote control
- Campus or hospitality networks needing VLAN, QoS, and multicast support
Technical Specifications
-
Ports: 24× 10/100/1000 Mbps RJ45, 4× 10G SFP+
-
Console: 1× RJ45, 1× Micro-USB
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 95.23 Mpps
-
MAC Address Table: 16K entries
-
Buffer Memory: 12 Mbit
-
Jumbo Frame: 9 KB
-
Power Consumption: Max 23.6 W
-
Dimensions: 440 × 180 × 44 mm (1U rackmount
-
Design: Fanless, durable metal casing
Upgrade Your Network with SG3428X
Boost your infrastructure with the TP-Link Omada SG3428X. Powerful, quiet, and cloud-ready. Order today to transform your enterprise network.
