[shortdesc] PoE-powered strobe siren, RGBA and white LEDs, 110 dB sound, IP66 IK10 NEMA 4X, SIP MQTT VAPIX integration [/shortdesc]
[properties]
| Model |
AXIS D4100-VE Mk II (03105-001 |
| Product Type |
Network Strobe Siren |
| Light Output |
RGBA LEDs; White LEDs up to 893 lm (PoE Class 4 / 220 lm (PoE Class 3 |
| Siren Max Sound Level |
110 dB at 1 m (3.4 kHz |
| Coverage Pattern |
150° coaxial at 2 kHz |
| IP Rating |
IP66 |
| IK Rating |
IK10 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F |
| Storage Temperature |
-40 °C to 70 °C (-40 °F to 158 °F |
| Humidity |
10–100% RH (condensing |
| Power |
PoE IEEE 802.3at Type 2 Class 4 (max 22.6 W / PoE 802.3af/at Type 1 Class 3 (max 9.4 W |
| Weight |
1000 g (2.2 lb |
| Dimensions |
See datasheet dimensional drawing |
| Casing |
Aluminum & plastic; White NCS S 1002-B |
| Mounting |
Bracket with junction box holes; 1/4"-20 UNC tripod screw thread; 1/2” conduit (optional |
[/properties]
[specifications]
| System on Chip |
NXP i.MX8M Nano UL |
| Memory |
1 GB RAM, 1 GB Flash |
| Network Protocols |
IPv4, IPv6 USGv6, HTTP/HTTPS, TLS, SNMP v1–v3, SMTP, mDNS, UPnP, DHCP, RTP/RTSP/SRTP, MQTT v3.1.1, SSH, LLDP, CDP and more |
| Integrations |
VAPIX, ACAP, SIP, AXIS Camera Station, third-party VMS |
| Event Conditions |
Temperature, IP changes, live stream, network loss, I/O, manual trigger, MQTT, schedules |
| Event Actions |
SIP call actions, I/O control, LED flash, light/siren profiles, MQTT publish, HTTP/TCP notifications |
| Environmental Standards |
IEC 60068-2 series, MIL-STD-810H methods |
| Cybersecurity |
Axis Edge Vault, Secure Keystore (CC EAL6+, Secure Boot, Encrypted Filesystem, 802.1X, Firewall |
| Power Consumption |
Max 22.6 W (PoE Class 4 / Max 9.4 W (PoE Class 3 |
| Connectors |
Shielded RJ45; 4-pin terminal block for 2 I/Os |
| Languages |
English, German, French, Spanish, Italian, Russian, Chinese (Simplified/Traditional, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Compliance & Certifications |
UL/cUL, CE, RCM, VCCI, FCC Class A, EN 55032 Class A, EN 55035, EN 50130-4, IEC/EN/UL 62368-1 |
| Box Contents |
Network strobe siren, installation guide, terminal block connector, cable gaskets, connector guard |
[/specifications]
[accesories]
| Included |
Network strobe siren; Installation guide; Terminal block connector; Cable gaskets; Connector guard |
| Optional – Sensors |
AXIS D6210 Air Quality Sensor (PoE Class 4 |
| Optional – Mounting |
TD4601 ACI Conduit Bracket; TD4801 Sunshield; T94K01D Pendant Kit; T94N01D Pendant Kit; T91B47 Pole Mount; T94R01B Corner Bracket; T91A64 Corner Bracket; T94V01C Dual Camera Mount; T91A33 Lighting Track Mount; T91A23 Tile Ceiling Mount; T91A04 Camera Holder; ACI Conduit Adapters; T94S01P Conduit Back Box; TD4301-E Angle Mount |
[/accesories]
Advanced Visual and Audio Deterrence for High-Security Environments

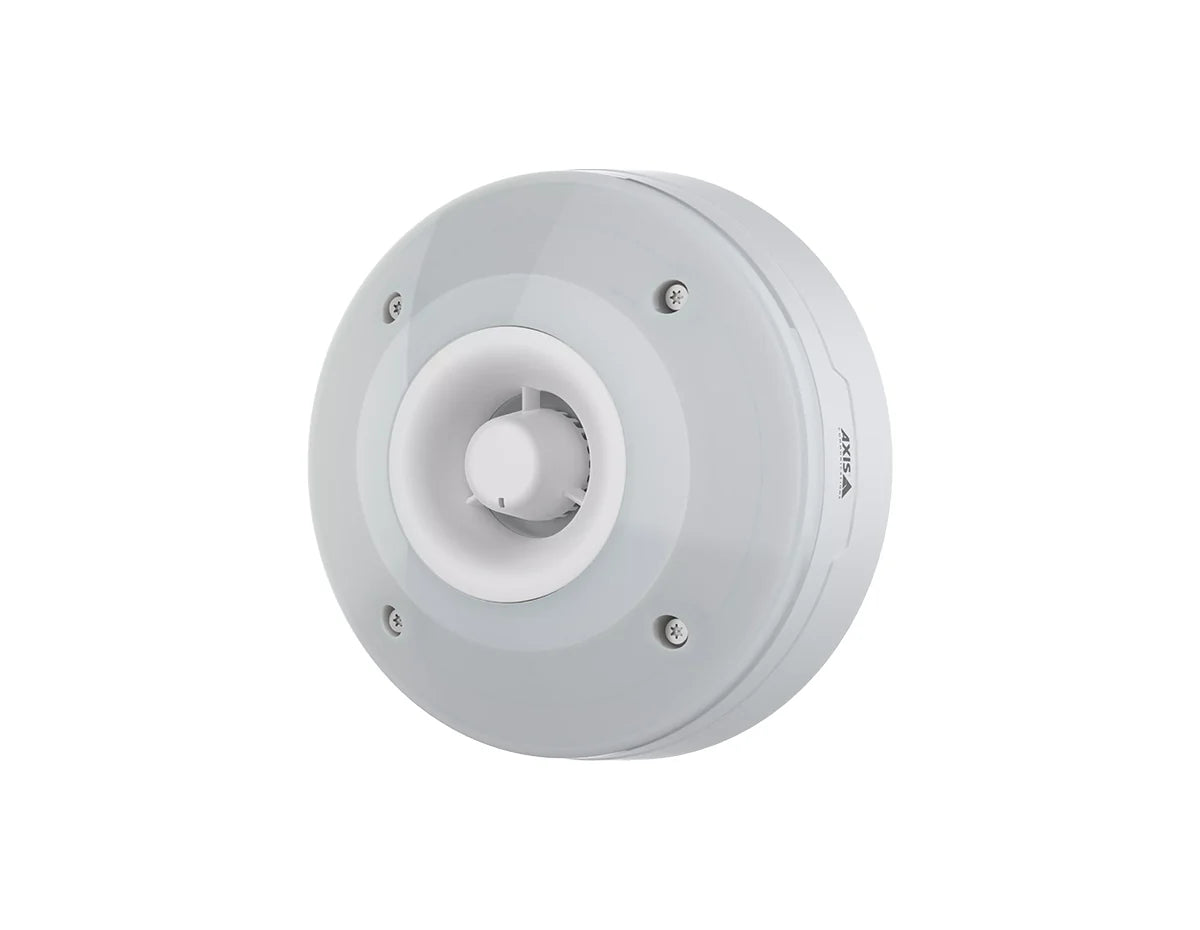

The AXIS D4100-VE Mk II Network Strobe Siren delivers powerful multicolored LED illumination and a 110 dB siren designed to stop threats before they escalate. Fully networked and powered by PoE, it integrates seamlessly with Axis cameras, AXIS Camera Station, and third-party VMS platforms through VAPIX, SIP, and MQTT. This rugged, outdoor-ready unit provides unmatched reliability with IP66, IK10, and NEMA 4X protection for demanding deployments.
Key Benefits & Features
-
High-intensity illumination: RGBA and white LEDs provide up to 893 lm output for strong visual signaling in any condition.
-
Powerful audible alerts: Integrated 110 dB siren delivers clear and penetrating alarms to deter intruders.
-
Flexible integration: Supports VAPIX, SIP for VoIP systems, and MQTT for modern automation workflows.
-
Rugged outdoor design: IP66, IK10, and NEMA 4X ratings ensure resistance to water, dust, impact, and extreme weather.
-
Smart event handling: Configure profiles, triggers, and automated actions for optimized security responses.
Ideal Use Cases
- Perimeter security with Axis analytics and LPR cameras
- Parking and gate control with automated signaling
- Critical infrastructure requiring high-reliability alerting
- Industrial facilities with rugged environmental demands
- Commercial buildings integrating unified AV and security alerts
Technical Specifications
-
LED Output: Up to 893 lm (PoE Class 4, 220 lm (PoE Class 3
-
Siren Output: 110 dB at 1 m, 3.4 kHz
-
Light Colors: RGBA LEDs plus white LEDs
-
Network Support: IPv4/IPv6, HTTPS, SIP, MQTT, UPnP, SNMP, RTSP
-
API Integration: VAPIX and ACAP platform
-
Operating Temperature: -40°C to 60°C
-
Power: PoE IEEE 802.3at Type 2 Class 4 or 802.3af Type 1 Class 3
-
Construction: IP66, IK10, NEMA 4X-rated aluminum and plastic casing
-
I/O: 2 configurable input/output ports
-
Weight: 1000 g
Strengthen Your Security Posture Today
Order now and enhance your visual and audible deterrence with AXIS D4100-VE Mk II.
