[shortdesc] LTE Cat 4 up to 150/50 Mbps, dual SIM failover, Wi-Fi 4, 1× WAN + 3× 10/100 LAN, 9–30 VDC input, -40 to 75°C [/shortdesc]
[properties]
| Brand |
Teltonika Networks |
| Model |
RUT951 |
| SKU |
RUT951A00800 |
| Product Type |
Router |
| Mobile Technology |
LTE Cat 4; 3G; 2G |
| Max Mobile Data Rates |
LTE up to 150 Mbps DL / 50 Mbps UL; 3G up to 21 Mbps DL / 5.76 Mbps UL; 2G up to 236.8 kbps |
| SIM |
2 × Mini SIM (2FF; eSIM optional (consumer type |
| SIM Switching |
Auto-switch on weak signal, data/SMS limit, roaming, no network/denied, data fail, SIM idle protection |
| Wi-Fi |
802.11b/g/n (Wi-Fi 4; AP/Station modes |
| Wi-Fi Capacity |
Up to 100 simultaneous users |
| Ethernet Ports |
1 × WAN 10/100 Mbps; 3 × LAN 10/100 Mbps; auto MDI/MDIX |
| CPU / Memory |
Mediatek 580 MHz; 128 MB DDR2 RAM; 16 MB SPI Flash |
| Power Connector |
4-pin industrial DC power socket |
| Input Voltage Range |
9–30 VDC; reverse polarity & surge protection |
| Passive PoE (Power-in |
Mode B via LAN1; 9–30 VDC (not 802.3af/at/bt compatible |
| Power Consumption |
< 2 W idle; < 7 W max |
| I/O |
1 × Digital Input; 1 × Digital Output (open collector, max 30 V / 300 mA |
| Antennas |
2 × SMA (LTE; 2 × RP-SMA (Wi-Fi |
| Casing |
Aluminium housing with plastic panels |
| Dimensions (W × H × D |
110 × 50 × 100 mm |
| Weight |
287 g |
| Mounting Options |
DIN rail, wall, flat surface (additional kit required |
| Operating Temperature |
−40 °C to 75 °C |
| Operating Humidity |
10% to 90% non-condensing |
| Ingress Protection |
IP30 |
| Regulatory Approvals |
CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, RCM, Giteki, ECE R118, E-mark, CB, UL/CSA Safety, RoHS, REACH, C1D2 |
| Safety Standards |
EN/IEC/UL 62368-1; EN 62311; EN 50665 |
| HS / HTS Codes |
851762 / 8517.62.00 |
| Mobile Bands (SKU RUT951A00800 |
LTE-FDD: B2, B4, B5, B12, B13, B14, B66, B71; 3G: B2, B4, B5 |
| Certified Operators (region |
AT&T, Verizon, T-Mobile |
[/properties]
[specifications]
| Cellular Features |
3GPP Rel. 10/11 (by HW; status incl. IMSI/ICCID/operator, band, RSSI/SINR/RSRP/RSRQ; APN auto; Band lock; Multiple PDN; Bridge & Passthrough modes |
| SMS / USSD |
SMS to Email/HTTP/SMS; Email to SMS; scheduled & autoreply; SMPP; USSD supported |
| Wi-Fi Security |
WPA2-Enterprise (PEAP, EAP-TLS with PKCS#12, WPA2-PSK, WPA/WPA3 (SAE/EAP, OWE; AES-CCMP/TKIP; 802.11w PMF |
| Wi-Fi Features |
Mesh 802.11s; Fast Roaming 802.11r; 802.11k/v; Relayd; SSID stealth & MAC ACL; QR access; TravelMate |
| Networking |
Static/Dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP; IPv4/IPv6; DHCP server/relay; VRRP; VLAN (port/tag; DDNS (>25 providers |
| Failover / Load Balancing |
Automatic failover (Mobile, Wi-Fi WAN, Wired, VRRP; Load balancing |
| Firewall |
Port forward, traffic/custom rules, DMZ, NAT/NAT-T/NAT64; attack prevention incl. DDoS/port-scan |
| VPN |
OpenVPN (client/server, IPsec (IKEv1/v2, GCM options, GRE, PPTP/L2TP/L2TPv3 (over IPsec, DMVPN, SSTP client, ZeroTier, WireGuard, Tinc, Stunnel |
| Industrial Protocols |
MODBUS TCP (client/server, custom registers, OPC UA (client/server, DNP3 (station/outstation, DLMS/COSEM (client |
| Data to Server / MQTT |
HTTP(S, MQTT, Azure MQTT; Modbus–MQTT Gateway |
| Management |
WebUI (HTTP/HTTPS, CLI/SSH, TR-069, SNMP v1/v2/v3, JSON-RPC, RMS, FOTA; event logs & monitoring |
| Physical Interfaces |
4 × RJ45 10/100; 2 × SIM (2FF; Reset; LEDs: power, mobile strength (5, ETH (4, bi-color connection |
| I/O Events |
Email, RMS, SMS; I/O juggler (triggered actions |
| EMC / RF |
EN 55032/55035; EN 301 489-1/17/52; EN 300 328; EN 301 511; EN 301 908 series |
| Hazardous Locations |
Class I, Division 2 (Groups A–D; Class I, Zone 2 (Group IIC; −40 °C ≤ Ta ≤ 75 °C; T4; IP30 |
[/specifications]
[accesories]
| Included |
Router RUT951; 9 W PSU (US for this SKU; 2 × Mobile antennas (swivel, SMA male; 2 × Wi-Fi antennas (swivel, RP-SMA male; Ethernet cable (1.5 m; SIM adapter kit; Quick Start Guide; Packaging box |
| Optional – Mounting |
DIN rail, wall, flat-surface mounting kits (required for those options |
[/accesories]
Keep remote sites online with resilient dual-SIM 4G

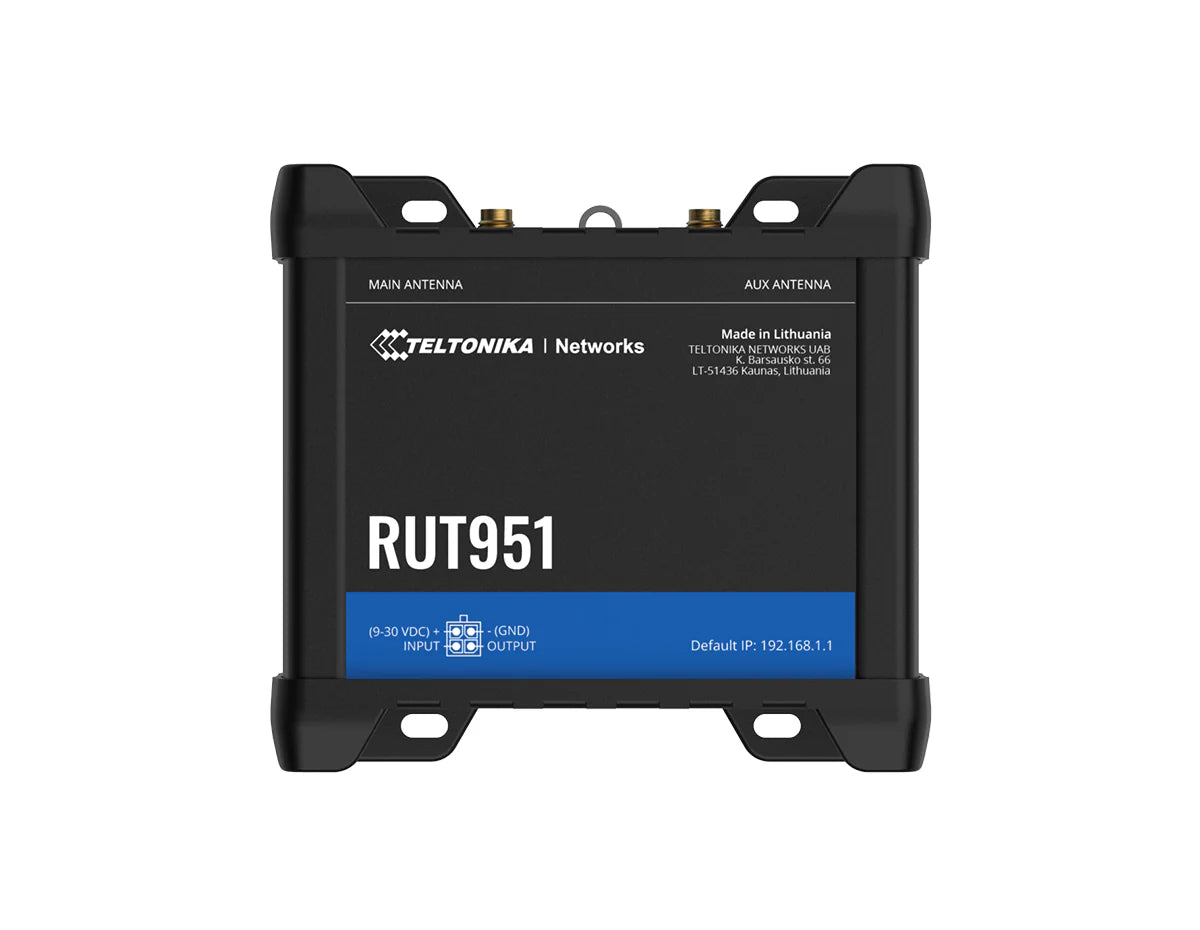

Teltonika RUT951 is a compact industrial cellular router that delivers reliable Cat 4 LTE connectivity with dual SIM auto-switching, integrated Wi-Fi 4, and 1× WAN plus 3× Fast Ethernet LAN ports. It is engineered for harsh environments with a 9–30 VDC input range, IP30 aluminum housing, and -40 to 75°C operation. North America variant RUT951A00800 adds regional bands and approvals for carrier-ready deployment.
Built on RutOS, it supports automatic WAN failover, advanced firewalling, and a full VPN stack including OpenVPN, IPsec, and WireGuard, plus remote fleet management via Teltonika RMS.
Key Benefits & Features
-
Dual SIM reliability: Two SIM slots with auto-switching on weak signal, data cap, roaming, or link failure to keep services up.
-
Flexible WAN options: Mobile, Ethernet, or Wi-Fi WAN with automatic failover and load balancing for uninterrupted access.
-
Secure connectivity: Rich VPN support (OpenVPN, IPsec, WireGuard, 802.1X, RADIUS/TACACS+, and robust firewall to protect OT and IT networks.
-
Industrial build: 9–30 VDC power, IP30 metal enclosure, -40 to 75°C, DIN-rail or wall mounting for cabinet installs.
-
Easy fleet management: Web UI, CLI, FOTA, SNMP, TR-069, MQTT, and Teltonika RMS for centralized monitoring and updates.
Ideal Use Cases
- Primary or backup WAN for kiosks, ATMs, and retail POS
- Edge connectivity for PLCs, HMIs, and SCADA in factories
- Transportation, utilities, and smart-city cabinets
- Video surveillance and access control backhaul
Technical Specifications
-
Cellular: 4G LTE Cat 4 up to 150 Mbps down / 50 Mbps up; 3G/2G fallback
-
SIM: 2× Mini-SIM (2FF with auto-switching
-
Ethernet: 1× 10/100 WAN, 3× 10/100 LAN, auto MDI/MDIX
-
Wi-Fi: 802.11b/g/n Access Point or Station, up to 100 clients
-
WAN resilience: Failover and load balancing across Mobile, Ethernet, and Wi-Fi WAN
-
VPN: OpenVPN, IPsec, WireGuard, GRE, L2TP/PPTP, DMVPN, ZeroTier
-
Security: Stateful firewall, DoS protection, VLANs, Web filter, certificate management
-
Power: 9–30 VDC via 4-pin socket; passive PoE-in over LAN1 (Mode B
-
Environmental: -40 to 75°C; 10 to 90% RH, IP30
-
Approvals: FCC, IC, PTCRB, carriers incl. AT&T, Verizon, T-Mobile; C1D2 hazardous location
-
Dimensions/Weight: 110 × 50 × 100 mm; 287 g
-
Model/SKU: RUT951A00800
Deploy dependable 4G backup and edge access today
Standardize on RUT951 for resilient WAN, secure VPN, and easy remote management across your sites. Order today.
