Powerful 1.3 MP indoor PTZ camera with 20x zoom and low-light clarity

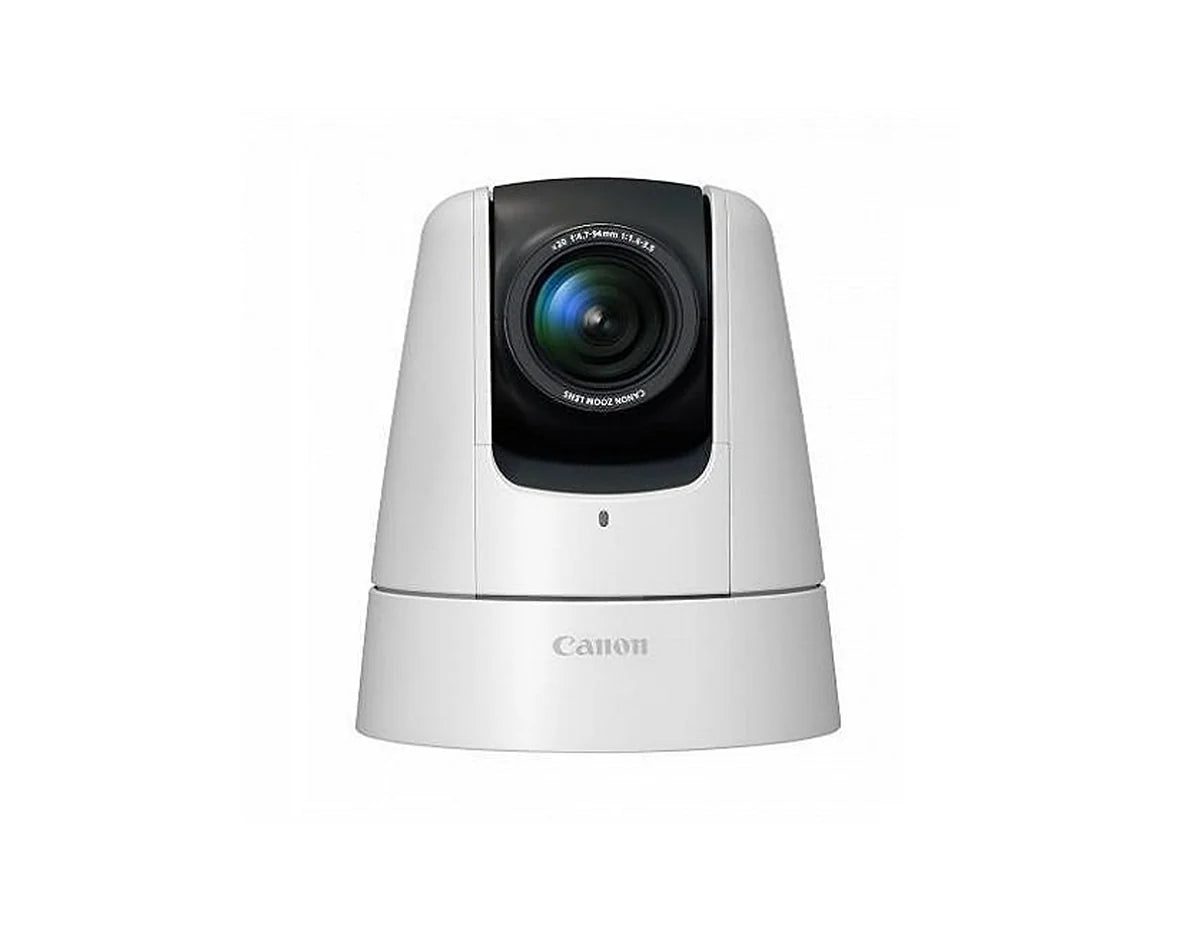

The Canon VB-M46 PTZ network camera delivers detailed 1.3 megapixel video with a powerful 20x optical zoom lens and 16x digital zoom for flexible indoor monitoring. Remarkable low-light performance down to 0.02 lux in color and 0.003 lux in monochrome, combined with WDR and advanced image processing, helps capture clear images even in challenging lighting conditions.

With fast, high-precision pan, tilt, and zoom, the VB-M46 can cover wide areas and move quickly between preset positions. Support for H.265, H.264, and JPEG streams, ONVIF Profile-S/G/T compliance, and multiple power options including PoE and 12 V DC make it easy to integrate into modern IP surveillance systems.

Key Benefits

• 1.3 MP CMOS sensor and up to 1280 × 960 resolution for sharp, detailed indoor surveillance.
• 20x optical zoom with 16x digital zoom (up to 320x total to capture distant subjects clearly without sacrificing detail.
• Excellent low-light performance down to 0.02 lux in color and 0.003 lux in monochrome for around-the-clock monitoring.
• WDR, Smart Shade Control, haze compensation, and motion-adaptive noise reduction to optimize image quality in complex lighting.
• Fast PTZ operation with up to 150°/sec pan/tilt speeds and up to 64 preset positions plus 5 tour routes for efficient area coverage.
• Flexible streaming with JPEG, H.264, and H.265, supporting up to 60 fps (60 Hz or 50 fps (50 Hz and multiple simultaneous clients.
• Robust security with user roles, access control, IEEE802.1X authentication, and SSL/TLS encrypted communications.
• ONVIF Profile-S, Profile-G, and Profile-T compliance for easy integration with third-party VMS and NVR solutions.
• Multiple power options including PoE, 12 V DC, and optional AC adapter for versatile installation scenarios.

Ideal Use Cases

• Indoor security monitoring in offices, retail spaces, and public buildings where wide coverage and fine detail are required.
• Surveillance applications that need rapid PTZ control and presets to track activity across large indoor areas.
• Environments with variable lighting, such as lobbies, corridors, and halls, where WDR and low-light performance are critical.
• IP-based CCTV systems that rely on ONVIF-compliant devices and require flexible streaming and client access.
• Installations that benefit from SD card recording redundancy and advanced event-triggered image upload and notifications.

Technical Specifications Summary

• Image sensor: 1/2.8 type CMOS, approx. 1.3 million effective pixels, progressive scan.
• Lens & zoom: 20x optical zoom, 4.7–94 mm, F1.6–F3.5, with 16x digital zoom (up to 320x.
• Field of view: Up to 62.4° (H × 36.3° (V at wide angle (16:9.
• Minimum illumination: 0.02 lux (color, 0.003 lux (monochrome at F1.6, 1/30 s, 50 IRE.
• Frame rates: Up to 60 fps (60 Hz / 50 fps (50 Hz, depending on settings.
• Compression: JPEG, H.264, and H.265 with 10 selectable quality levels.
• Audio: G.711 μ-law and AAC with full-duplex or half-duplex communication.
• Network & protocols: RJ45 100Base-TX with IPv4/IPv6, HTTP, RTP/RTSP, ONVIF Profile-S/G/T and more.
• Power: PoE (IEEE802.3at Type 1, 12 V DC, optional PA-V18 AC adapter; max consumption approx. 9.7 W.
• Environment: Operating -10°C to +50°C, 5%–85% RH (non-condensing.
• Dimensions & weight: Ø132 × 155 mm, approx. 1100 g.

Upgrade Your Operations

Enhance your indoor surveillance with the Canon VB-M46 PTZ network camera for flexible, detailed, and reliable IP monitoring.
